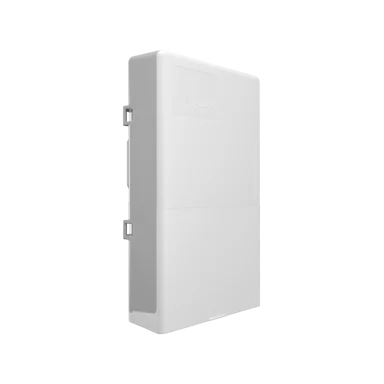

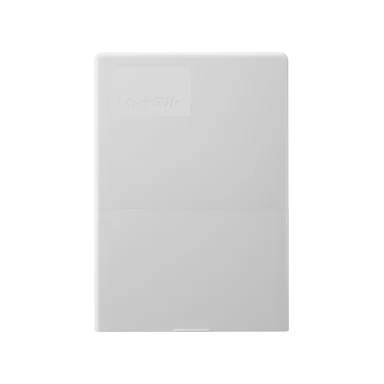

netPower 15FR
An outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.
There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.Specification
- Product code CRS318-1Fi-15Fr-2S-OUT
- Suggested price $169.00
- Architecture ARM 32bit
- CPU 98DX224S
- CPU core count 2
- CPU nominal frequency 800 MHz
- Switch chip model 98DX224S
- Dimensions 304 x 212 x 71 mm
- RouterOS license 5
- Operating System RouterOS / SwitchOS
- Size of RAM 256 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 16 (DC jack, PoE-IN)
- DC jack input Voltage 18-57 V
- Max power consumption 29 W
- Max power consumption without attachments 10 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 18-57 V (recommended 36-57V)
- PoE-out ports Ether15
- PoE out Passive PoE
- Low voltage PoE-Out current limit 0.75 A
- High voltage PoE-Out current limit 0.5 A
- Max total out (A) 0.75 A
- 10/100 Ethernet ports 16
- SFP ports 2
- CPU temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, EAC, ROHS
- IP IP54
| CRS318-1Fi-15Fr-2S-OUT | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 292.6 | 3,553.2 | 845.9 | 3,464.7 | 5,357.1 | 2,742.9 |
| Switching | Non blocking Layer 2 capacity | 292.6 | 7,106.4 | 845.9 | 6,929.3 | 5,357.1 | 5,485.7 |
| Switching | Non blocking Layer 1 throughput | 292.6 | 3,600.0 | 845.9 | 3,600.0 | 5,357.1 | 3,600.0 |
| Switching | Non blocking Layer 1 capacity | 292.6 | 7,200.0 | 845.9 | 7,200.0 | 5,357.1 | 7,200.0 |
| CRS318-1Fi-15Fr-2S-OUT | 98DX3224 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104.4 | 1267.8 | 199.4 | 816.7 | 169.4 | 86.7 |
| Bridging | 25 bridge filter rules | 61.7 | 749.3 | 62.0 | 254.0 | 75.7 | 38.8 |
| Routing | none (fast path) | 104.4 | 1267.8 | 117.8 | 482.5 | 138.3 | 70.8 |
| Routing | 25 simple queues | 78.8 | 956.9 | 77.0 | 315.4 | 97.0 | 49.7 |
| Routing | 25 ip filter rules | 44.7 | 542.8 | 45.1 | 184.7 | 52.4 | 26.8 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
