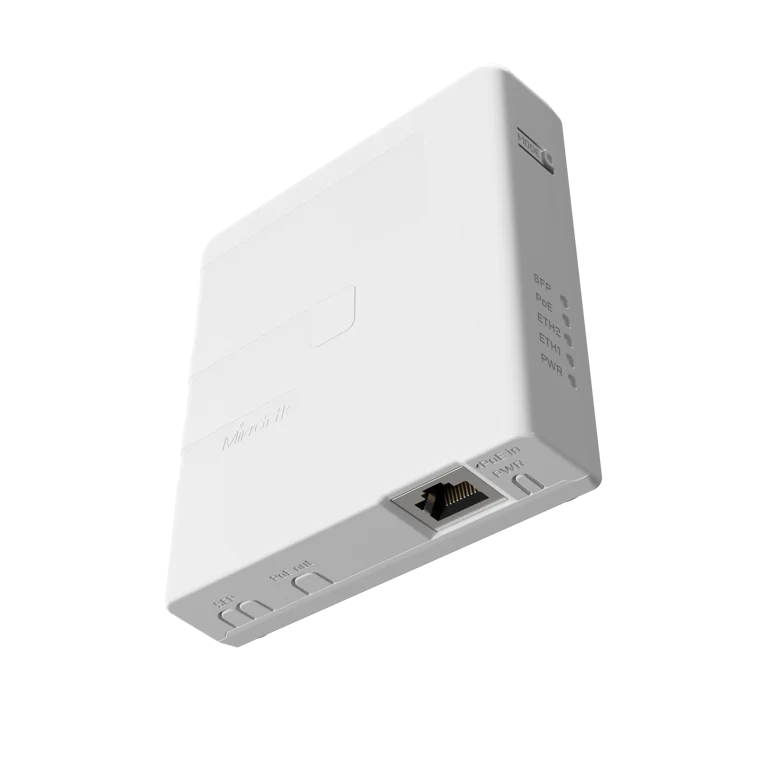

    GPEN21 Smart power injector that serves as an advanced software controlled repeater

    The GPEN21 is a smart power injector that serves as an advanced software controlled repeater. Not only can it power your uplink devices via PoE, it can also provide a range of useful software features:

    • Interface management and monitoring

    • GPEN link fault detection

    • VLAN support

    • SNMP reporting

    • Basic traffic shaping

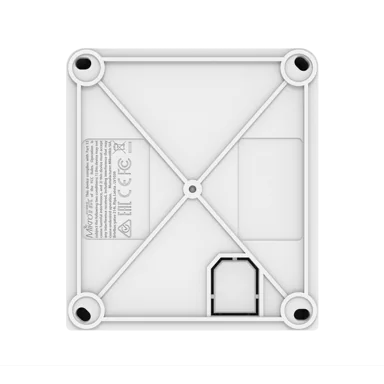

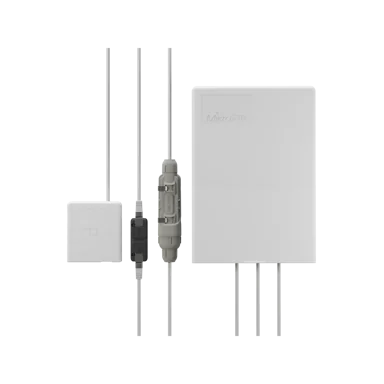

    GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can choose to use GPEN21 to power optical module for uplink to provider, or to provide PoE to power Ethernet uplink to provider (that uses our GPeR and/or netPower products) The GPEN unit can be securely attached to a wall or the communications cabinet. The Ethernet cable can be routed either directly through its bottom cable opening or into the wall, as preferred.

     Send purchase questions

    Specifications

    Details
    Product code GPEN21
    Switch chip model 88E6341
    Input voltage 12 - 57 V, Passive or 802.3af/at
    Tested ambient temperature -20°C to 70°C
    Suggested price $40.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 12-57 V
    Max power consumption 30 W
    Max power consumption without attachments 3 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    PoE-out

    Details
    PoE-out ports Ether2
    PoE out Passive PoE up to 57V
    Max out per port output (input 18-30 V) 850 mA
    Max out per port output (input 30-57 V) 625 mA
    Max total out (A) 850 mA

    Ethernet

    Details
    10/100/1000 Ethernet ports 2
    Number of 1G Ethernet ports with PoE-out 1

    Fiber

    Details
    SFP ports 1

    Other

    Details
    Output Voltage Yes, Passive PoE up to 57 V
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

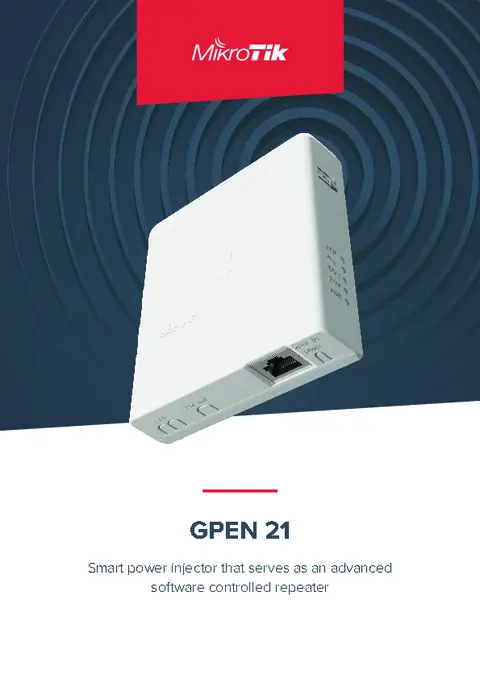

    BrochureOpen
