RB433UL

400MHz CPU, 64MB RAM, 3xEthernet, 3x miniPCI, USB, RouterOS L4

Outdoors

PoE

Specification Find retailer

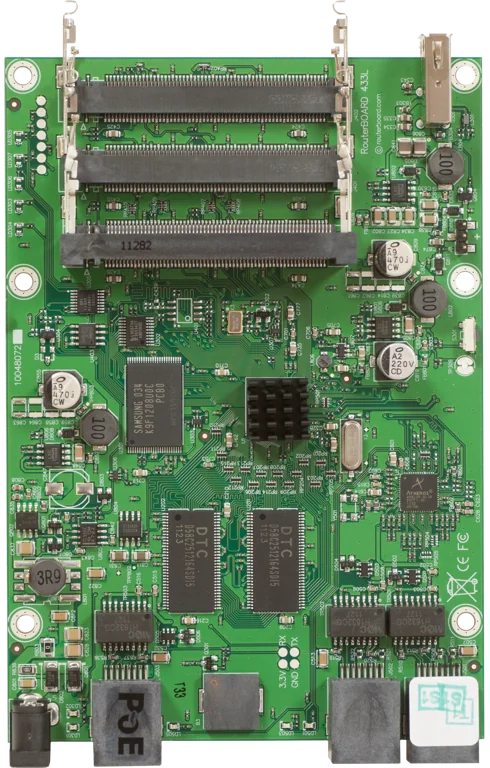

RB433UL

The RB433UL has three miniPCI slots, three Ethernet ports and one USB port for storage or a 3G modem.

Use this device in an outdoor case for a sector AP installation, or for a wireless point to point link.

It’s powered by an Atheros 300MHz CPU, has 64MB of RAM and a Level4 RouterOS license.

Specification

Specifications

Product code RB433UL
Suggested price $89.00
Architecture MIPSBE
CPU AR7130
CPU core count 1
CPU nominal frequency 300 MHz
Switch chip model AR8236-AL1A
Dimensions 105x154mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-28 V
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-28 V

Ethernet

10/100 Ethernet ports 3

Peripherals

MiniPCI slots 3
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 2

Other

Voltage Monitor Yes
Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB433UL		AR7130 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	16.2	196.7	47.0	192.5	97.3	49.8
Bridging	25 bridge filter rules	16.2	196.7	40.6	166.3	41.0	21.0
Routing	none	16.2	196.7	47.0	192.5	79.4	40.7
Routing	25 simple queues	16.2	196.7	47.0	192.5	67.8	34.7
Routing	25 ip filter rules	16.2	196.7	28.9	118.4	24.7	12.6

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
