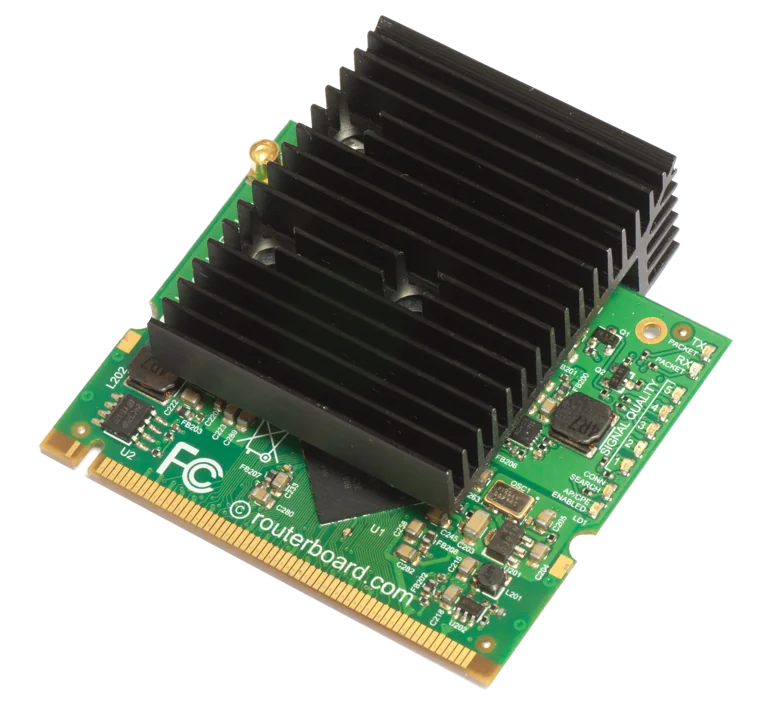

    R2SHPn 2Ghz miniPCI 802.11b/g/n single chain, MMCX connector

    Discontinued


    The new 2.4GHz super high power wireless card for long range links and powerful access points. This is the professional choice for reaching the last mile - high transmit power will give you the ability to reach even further than before. Up to 125Mbit throughput is possible with this device! Works in the 2.4GHz frequency (2192-2732MHz depending on country regulations)

    The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

    The card comes with a preinstalled industrial grade heatsink, one MMCX connector and nine LED indicator lights.

     Send purchase questions

    Product specifications

    Details
    Product code R2SHPn
    2GHz Yes
    Antenna header count 1
    Bands 2192-2734Mhz
    Can be used indoors Yes
    Can be used outdoors Yes
    Chipset AR9223
    Connector MMCX
    Format miniPCI
    Output power 32dBm
    Storage size 4 KB
    Storage type FLASH
    Tested ambient temperature -30C to +65C (operating), -5C to +65C (starting)
    Wi-Fi generation Wi-Fi 4
    Wireless 2.4 GHz Max data rate 150 Mbit/s
    Wireless 2.4 GHz chip model AR9223
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 2.4 GHz number of chains 1
    Wireless 2.4 GHz standards 802.11b/g/n
    Wireless standards 802.11b/g/n
    Suggested price $49.00
    BrochureOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    #
    #
