Discontinued
R5SHPn
5Ghz miniPCI 802.11a/n single chain, MMCX connector
Outdoors
R5SHPn
The new 5GHz super high power wireless card for long range links and powerful access points. This is the professional choice for reaching the last mile - high transmit power will give you the ability to reach even further than before.

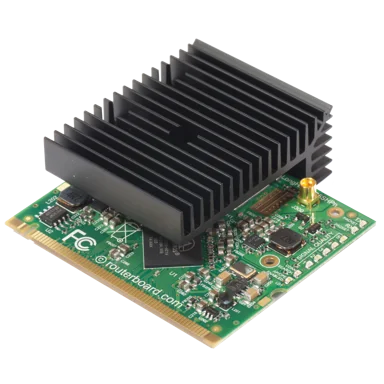

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment. The card comes with a preinstalled industrial grade heatsink, one MMCX connector and nine LED indicator lights.
Specification
Specifications
- Product code R5SHPn
- Suggested price $59.00
- Storage size 4 KB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
Wireless specifications
- 5GHz Yes
- Wireless 5 GHz Max data rate 150 Mbit/s
- Wireless 5 GHz Number of chains 1
- Wireless 5 GHz chip model AR9220
- Wireless 5 GHz generation Wi-Fi 4
Certification & Approvals
- Certification FCC
