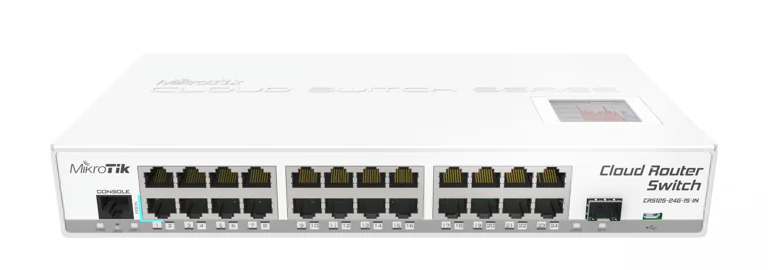

    CRS125-24G-1S-IN 24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5

    Discontinued


    Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

    Choose ports for Wire speed switching, or for routing purposes.

    Perfect SOHO gateway router, switch, all in one box:
    • Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
    • RouterOS gateway/firewall/VPN router with passive cooling
    • up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)

    Box includes: Cloud Router Switch, desktop enclosure, power supply

     Send purchase questions

    Specifications

    Details
    Product code CRS125-24G-1S-IN
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Switch chip model QCA8513
    Dimensions 285 x 144 x 44 mm
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -30°C to 60°C
    Suggested price $189.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 8-28 V
    Max power consumption 20 W
    Max power consumption without attachments 15 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-28 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 24

    Fiber

    Details
    SFP DDMI Yes
    SFP ports 1

    Peripherals

    Details
    Serial console port RJ45
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type microUSB type AB
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

    Included parts

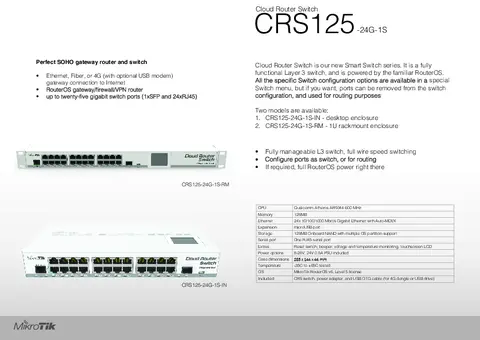

    BrochureOpen
    Quick GuideOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    Block diagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #

    Switching results

    CRS125-24G-1S-IN
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 2,031.9 24,674.9 5,874.1 24,060.2 37,202.4 19,047.6
    Switching Non blocking Layer 2 capacity 2,031.9 49,349.8 5,874.1 48,120.3 37,202.4 38,095.2
    Switching Non blocking Layer 1 throughput 2,031.9 25,000.0 5,874.1 25,000.0 37,202.4 25,000.0
    Switching Non blocking Layer 1 capacity 2,031.9 50,000.0 5,874.1 50,000.0 37,202.4 50,000.0

    Ethernet test results

    CRS125-24G-1S-INAR9344 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
    Bridging25 bridge filter rules81.0983.786.0352.387.644.9
    Routingnone (fast path)81.0983.7210.0860.2226.9116.2
    Routing25 simple queues81.0983.7103.9425.6106.654.6
    Routing25 ip filter rules56.8689.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
