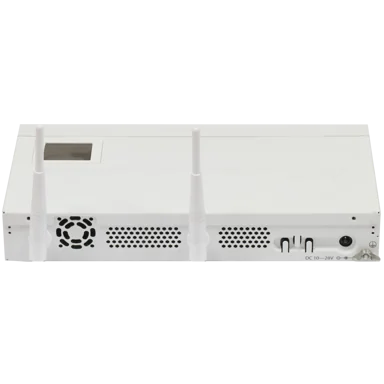

    CRS125-24G-1S-2HnD-IN

    Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
    What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

    Perfect SOHO gateway router, switch, 11n AP all in one box
    • Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
    • RouterOS gateway/firewall/VPN router with passive cooling
    • up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
    • 1000mW high power 2.4GHz 11n wireless AP

    Product specifications

    Details
    Product code CRS125-24G-1S-2HnD-IN
    10/100/1000 Ethernet ports 24
    Antenna gain dBi for 2.4 GHz 4
    Architecture MIPS-BE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    DC jack input Voltage 8-28 V
    Dimensions 285x145x45mm
    License level 5
    Max Power consumption 19W
    Number of DC inputs 1
    Number of USB ports 1
    Number of chains 2
    Operating System RouterOS
    PCB temperature monitor Yes
    PoE in Passive PoE
    SFP DDMI Yes
    SFP ports 1
    Serial port RJ45
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -35C to +65C
    USB Power Reset Yes
    USB slot type microUSB type AB
    Voltage Monitor Yes
    Wireless 2.4 GHz chip model AR9344
    Wireless 2.4 GHz standards 802.11b/g/n
    Suggested price $209.00

    Wireless specifications

    2.4 GHz
    Transmit (dBm)Receive Sensitivity
    1MBit/s29-97
    11MBit/s28-90
    6MBit/s30-96
    54MBit/s25-76
    MCS030-96
    MCS723-73

    More info

    Switching results

    CRS125-24G-1S-2HnD-IN
    Mode Configuration 64 byte 512 byte 1518 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 37,202.4 19,047.6 5,874.1 24,060.2 2,031.9 24,674.9
    Switching Non blocking Layer 2 capacity 37,202.4 38,095.2 5,874.1 48,120.3 2,031.9 49,349.8
    Switching Non blocking Layer 1 throughput 37,202.4 25,000.0 5,874.1 25,000.0 2,031.9 25,000.0
    Switching Non blocking Layer 1 capacity 37,202.4 50,000.0 5,874.1 50,000.0 2,031.9 50,000.0

    Ethernet test results

    CRS125-24G-1S-2HnD-INAR9344 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.0983.7232.0950.3269.6138.0
    Bridging25 bridge filter rules81.0983.786.0352.387.644.9
    Routingnone (fast path)81.0983.7210.0860.2226.9116.2
    Routing25 simple queues81.0983.7103.9425.6106.654.6
    Routing25 ip filter rules56.8689.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
