    CCR1036-12G-4S 1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU

    Discontinued


    CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

    The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

    The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!

     Send purchase questions

    Specifications

    Details
    Product code CCR1036-12G-4S
    Architecture TILE
    CPU TLR4-03680
    CPU core count 36
    CPU nominal frequency 1.2 GHz
    Dimensions 443 x 193 x 44 mm
    RouterOS license 6
    Operating System RouterOS
    Size of RAM 4 GB
    Storage size 1 GB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    IPsec hardware acceleration Yes
    Suggested price $1095.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Number of PSU slots 2
    Frequency (Hz) 50-60
    Max power consumption 60 W
    Cooling type 2 fans

    Ethernet

    Details
    10/100/1000 Ethernet ports 12

    Fiber

    Details
    SFP DDMI Yes
    SFP ports 4

    Peripherals

    Details
    Serial console port RJ45
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1
    Number of M.2 slots 1

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Mode button Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

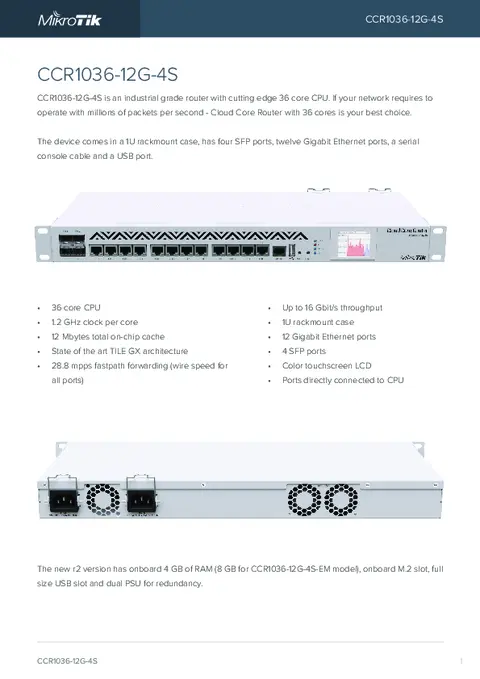

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    Block Diagram r2Open
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #

    Ethernet test results

    CCR1036-12G-4Sr2Tile 36 core max possible throughput test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)1300.415792.13759.415398.528808.014749.7
    Bridging25 bridge filter rules1300.415792.13760.415402.65163.52643.7
    Routingnone (fast path)1300.415792.13762.415410.828808.014749.7
    Routing25 simple queues1300.415792.13762.415410.87643.13913.3
    Routing25 ip filter rules1300.415792.13033.912426.93049.71561.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    CCR1036-12G-4Sr2CCR1036 series IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA1130.51461.6123.4505.4115.459.1
    256 tunnelsAES-128-CBC + SHA1912.910224.51037.44249.21053.1539.2
    256 tunnelsAES-128-CBC + SHA256902.710110.21032.84230.31025.7525.2
    256 tunnelsAES-256-CBC + SHA1901.010091.21028.34211.9998.2511.1
    256 tunnelsAES-256-CBC + SHA256892.59996.0982.94026.0970.7497.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
