Wireless Wire Cube Pro

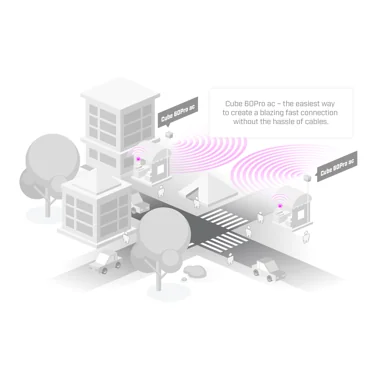

A preconfigured kit of two Cube 60Pro ac (802.11ay 60 GHz) devices: the Wireless Wire Cube Pro. Just point the Cubes at one another and power them on! They will form a blazing fast encrypted wireless connection. Pure plug-and-play!

ARM
Quad-core CPU
GPS
Outdoors
PoE
Wireless Wire Cube Pro
Product image
Product image
Product image
Product image
Product image thumbnail
Product image thumbnail
Product image thumbnail
Product image thumbnail

Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

This is a preconfigured kit of two Cube 60Pro ac devices. The Cube 60Pro ac CPE allows you to establish ultra-fast point-to-point connections over distances as far as 1 km. And that’s not all – we have added Channel 5* support, so you can reach even higher distances if necessary. In our tests, the Cube 60Pro ac easily maintained a reliable connection over 2.4 km. Bridging two locations has never been easier!

Forget about downtime with the automatic 5 GHz backup connection

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

More durability, less unwanted attention

We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

Video thumbnail

Specification

Specifications
  • Product code CubeG-5ac60aypair
  • Suggested price $298.00
  • Architecture ARM 32bit
  • CPU IPQ-4019
  • CPU core count 4
  • CPU nominal frequency 448-896 (auto) MHz
  • CPU Threads count 4
  • RouterOS license 4
  • Operating System RouterOS
  • Size of RAM 256 MB
  • Storage size 64 MB
  • Storage type FLASH
  • MTBF Approximately 200'000 hours at 25C
  • Tested ambient temperature -40°C to 70°C
Powering
  • Number of DC inputs 1 (PoE-IN)
  • Frequency (Hz) 50-60
  • Max power consumption 10 W
  • PoE in 802.3af/at
  • Cooling type Passive
  • PoE in input Voltage 18-48 V
Wireless specifications
  • Wireless 5 GHz Max data rate 433 Mbit/s
  • Wireless 5 GHz Number of chains 1
  • Wireless 5 GHz standards 802.11a/n/ac
  • Antenna gain dBi for 5 GHz 11.5
  • Wireless 5 GHz chip model IPQ-4019
  • Wireless 5 GHz generation Wi-Fi 5
Ethernet
  • 10/100/1000 Ethernet ports 1
Other
  • GNSS standards GPS
Certification & Approvals
  • Certification CE, FCC, IC, EAC, ROHS
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Wireless Specification

Documents

Brochure

Read product brochure and find out about features and specification
.PDF
Brochure PDF first page

Download

Latest RouterOS stable release v7.20.6 download files for arm devices.
System Package
Default Packages
More in download page
