    CubeSA 60Pro ac A powerful sector antenna to connect multiple 60 GHz devices. Quick and easy networking for all kinds of pop-up events and distances up to 800m.

    Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

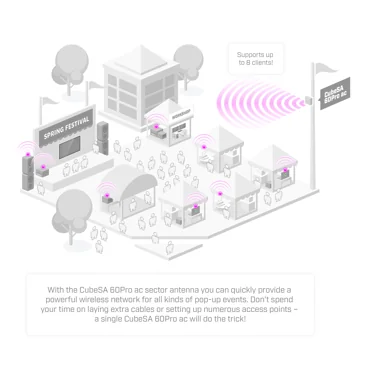

    If you need to connect multiple devices – take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

    Forget about downtime with the automatic 5 GHz backup connection

    The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

    More durability, less unwanted attention

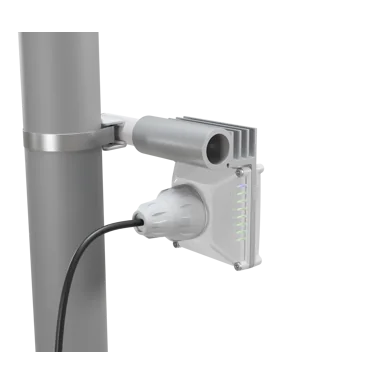

    We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

     Send purchase questions

    Specifications

    Details
    Product code CubeG-5ac60ay-SA
    Architecture ARM 32bit
    CPU IPQ-4019
    CPU core count 4
    CPU nominal frequency 448-896 (auto) MHz
    Dimensions 115 x 211 x 90 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 64 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $199.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 13 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-48 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 433 Mbit/s
    Wireless 5 GHz number of chains 1
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 11.5
    Wireless 5 GHz chip model IPQ4019
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Other

    Details
    GNSS standards GPS

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s22-93
    54MBit/s18-74
    MCS022-93
    MCS717-71
    MCS915-68

    Included parts

    BrochureOpen
    Quick GuideOpen
    FCC Grant of Certification (60GHz)Open
    Selection guide for PtMP linksOpen
    Selection guide for PtP linksOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (5GHz)Open

    High resolution images

    Ethernet test results

    CubeG-5ac60ay-SAIPQ-4019 1G one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81,2986.1234,9962.21482,6759.1
    Bridging25 bridge filter rules81,2986.1227,7932.7231,9118.7
    Routingnone (fast path)81,2986.1235,1963.01421,8728.0
    Routing25 simple queues81,2986.1235,1963.0458,3234.6
    Routing25 ip filter rules81,2986.1234,9962.2236,8121.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
