KNOT Gateway HL9

A rugged IP66 IoT gateway combining BLE 5.1, 915 MHz Wi-Fi HaLow, Wi-Fi, Gigabit Ethernet, LTE Cat 1 bis, and GNSS. Need LoRa® instead? The KNOT Gateway is also available in an 868 MHz LoRa version.

Specification Find retailer

Gigabit Ethernet

PoE-In & surge protection

IP66

BLE 5.1

Dual-core ARM64 CPU

CAT1 bis LTE modem

Multi- GNSS GPS

SIM/eSIM

With the new KNOT Gateway, you can follow tagged equipment, pallets, containers, tools, and other assets as they pass through warehouses and terminals. But there’s more: you can tie various generations of tech together! The KNOT Gateway brings remote meters, sensors, and other IoT devices into your network with BLE and long-range sub-GHz connectivity.

Whatever language your IoT devices speak,

the KNOT gets the conversation going!

BLE 5.1

Turn Bluetooth broadcasts into useful, actionable data: track tagged assets, monitor telemetry, filter advertisements, and use RouterOS scripting to decide what happens next.

Long-range IoT

Go beyond Bluetooth with 868 MHz LoRa® on KNOT Gateway LR8 or 915 MHz Wi-Fi HaLow on KNOT Gateway HL9 – two sub-GHz options for IoT deployments that need to reach even further.

Three ways back to your servers

Use Gigabit Ethernet, 2.4 GHz Wi-Fi, or LTE Cat 1 bis for backhaul. Put the gateway where your devices are, without depending on Ethernet being available there.

RouterOS does the rest

Filter data locally, build your own logic with scripts, publish information using MQTT or HTTP, and integrate it into your preferred IoT platform with custom dashboards, notifications, and reports.

Build where it makes sense

IP66 protection, PoE-in, 12–57 V DC input, surge protection, and integrated antennas for BLE, Wi-Fi, LTE, Sub-GHz, and GNSS let you place KNOT closer to the devices it’s actually serving. External antenna connectors for BLE and Sub-GHz give you extra flexibility when the installation calls for it.

And eSIM/MikroTik connectivity gives you even more flexibility – no need for an existing internet connection. You can active data via a simple MikroTik account login!

MikroTik Connectivity offers preloaded eSIM profiles all over the world, multi-operator switching, and reliable remote management with multi-network access for roaming and backup purposes.

KNOT Gateway HL9

Specification

Specifications

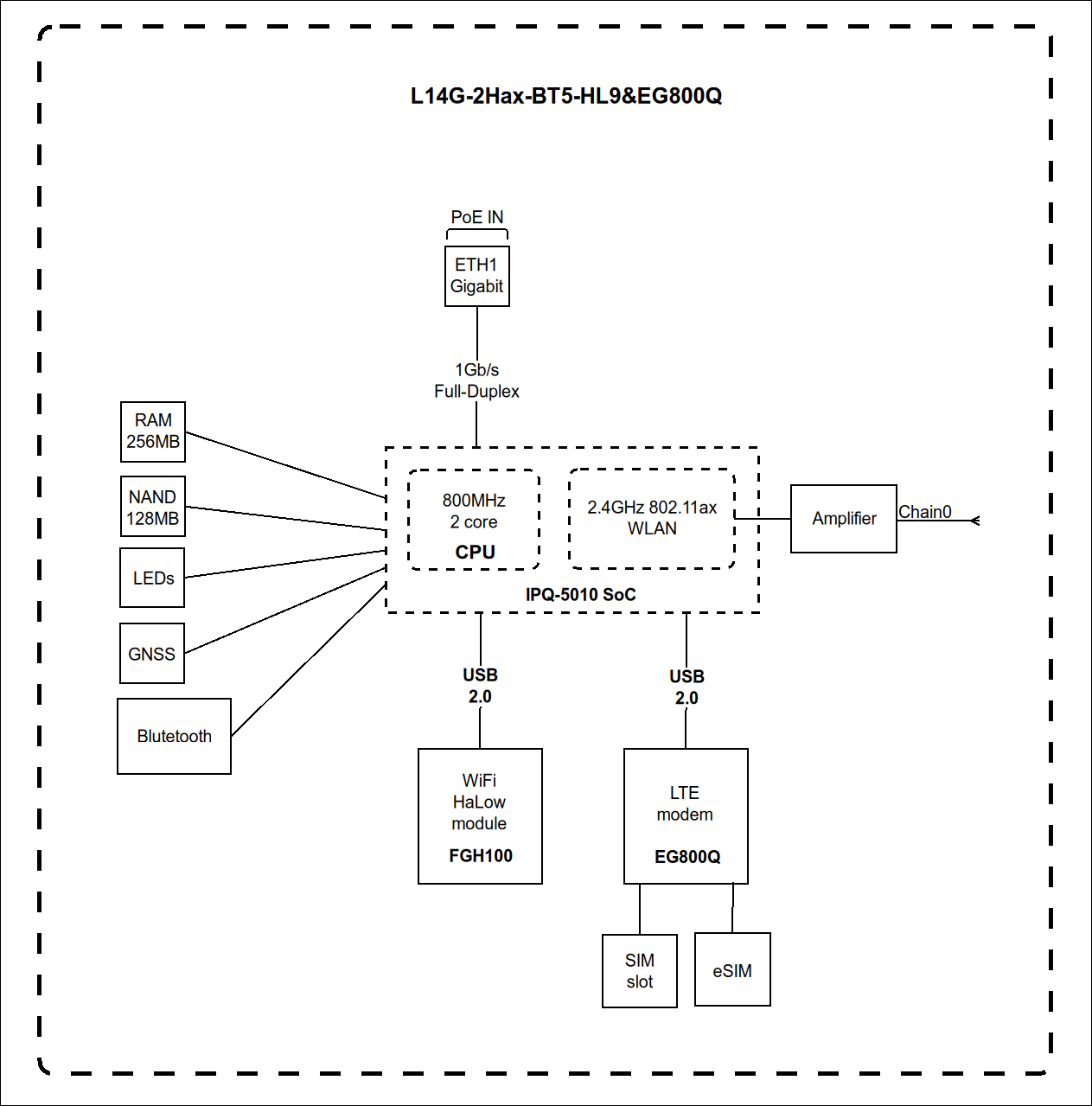

Product code L14G-2ax-BT5-HL9&EG800Q
Suggested price $139.00
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
CPU Threads count 2
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 50°C

Powering

Number of DC inputs 2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage 12-57 V
Max power consumption 7 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 18-57 V

Mobile

LTE Category CAT 1 bis (DL: 10 Mbps; UL: 5 Mbps)
MIMO DL 1x1
MIMO UL 1x1
LTE FDD bands 2 (1900 MHz)
4 (1700 MHz)
5 (850 MHz)
12 (700 MHz)
13 (700 MHz)
66 (1700 MHz)
TAC 01688100

Wireless specifications

Wireless 2.4 GHz Max data rate 287 Mbit/s
Wireless 2.4 GHz Number of chains 1
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 3.9
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6

Ethernet

10/100/1000 Ethernet ports 1

Peripherals

Number of SIM slots 1 Modem (Nano SIM)

Other

CPU temperature monitor Yes
Bluetooth version 5.1
Bluetooth RF connector type uUFL
eSIM Yes

Certification & Approvals

Certification FCC, IC, EAC
IP 66

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
