RB493G

680MHz CPU, 256MB RAM, 9x Gigabit Ethernet, 3x miniPCI, USB, RouterOS L5

Outdoors

PoE

Specification Find retailer

RB493G

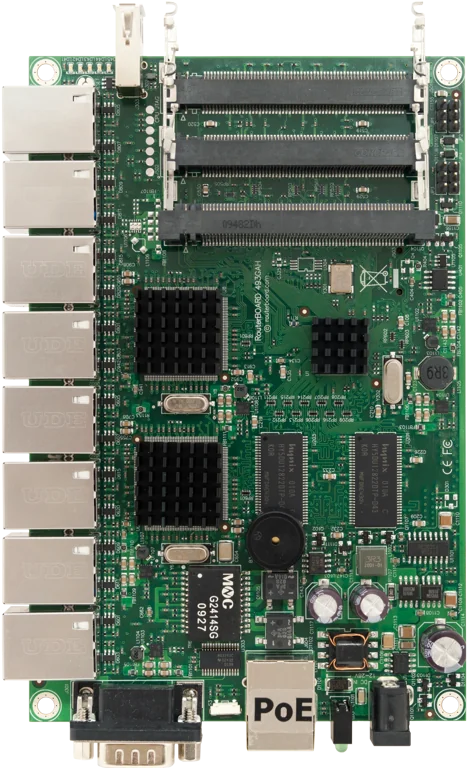

The RB493G has nine Gigabit ethernet ports, three miniPCI slots, and two switch chips, so the ethernet ports can be connected together in two switch groups for wire speed throughput.

The RB493G also has a USB 2.0 port and a microSD card slot for adding more storage or a 3G USB modem for backup connectivity.

The heart of this device is a high performance Atheros AR7161 CPU and it features 256MB of built in RAM. RB493G includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

Specification

Specifications

Product code RB493G
Suggested price $199.00
Architecture MIPSBE
CPU AR7161
CPU core count 1
CPU nominal frequency 680 MHz
Switch chip model AR8316
Dimensions 105mm x 160mm
RouterOS license 5
Operating System RouterOS
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-28 V
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-28 V

Ethernet

10/100/1000 Ethernet ports 9

Peripherals

MiniPCI slots 3
Serial console port RS232
Number of USB ports 1
USB slot type USB type A
Max USB current (A) 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB493G		AR7161 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	58.0	704.4	171.9	704.1	187.3	95.9
Bridging	25 bridge filter rules	58.5	710.4	84.5	346.1	86.4	44.2
Routing	none	59.7	725.0	136.1	557.5	147.0	75.3
Routing	25 simple queues	55.2	670.3	117.7	482.1	137.0	70.1
Routing	25 ip filter rules	54.7	664.3	59.4	243.3	59.2	30.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
