RB493AH

680MHz CPU, 128MB RAM, 9x Ethernet, 3x miniPCI, RouterOS L5

Outdoors

PoE

Specification Find retailer

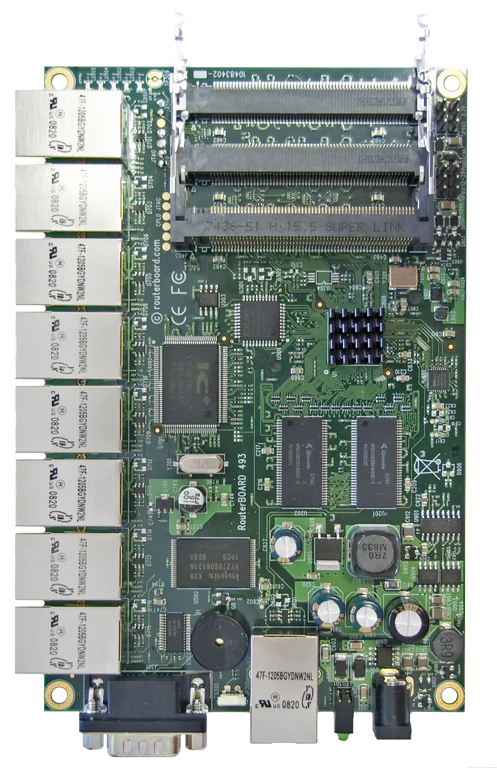

RB493AH

The RB493 has nine ethernet ports and three miniPCI slots, it also has a switch chip, so the ethernet ports 2-9 can be grouped together to make it act as a switch.

RB493 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

The RB493AH model includes the higher speed Atheros 680MHz CPU, more memory, and a Level5 license for more simultaneous tunnel interfaces and hotspot users.

Specification

Specifications

Product code RB493AH
Suggested price $169.00
Architecture MIPSBE
CPU AR7161
CPU core count 1
CPU nominal frequency 680 MHz
Switch chip model IP178CLF
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C

Powering

Number of DC inputs 1 (DC jack)
DC jack input Voltage 8-28 V
PoE in Passive PoE
Cooling type Passive

Ethernet

10/100 Ethernet ports 9

Peripherals

MiniPCI slots 3
Serial console port RS232

Other

Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB493AH		AR7161 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	16.2	196.7	47.0	192.5	187.3	95.9
Bridging	25 bridge filter rules	16.2	196.7	47.0	192.5	86.4	44.2
Routing	none	16.2	196.7	47.0	192.5	147.0	75.3
Routing	25 simple queues	16.2	196.7	47.0	192.5	137.0	70.1
Routing	25 ip filter rules	16.2	196.7	47.0	192.5	59.2	30.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
