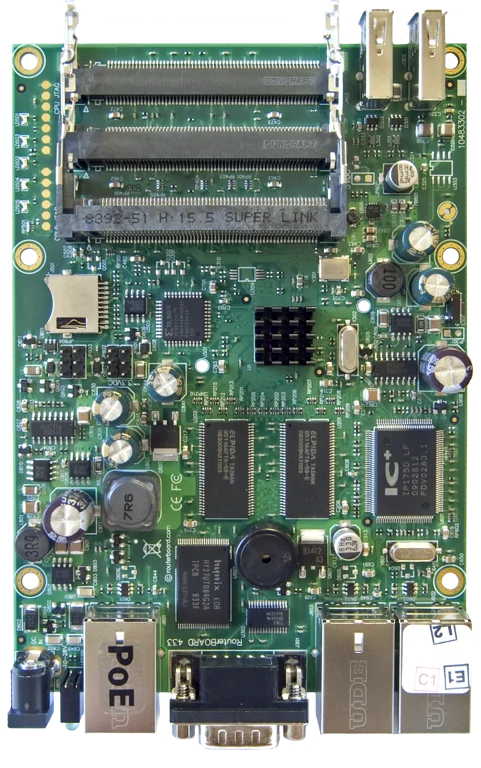

    RB433UAH 680MHz CPU, 128MB RAM, 3x Ethernet, 3x miniPCI, 2xUSB, RouterOS L5

    Discontinued


    Three miniPCI slots and three Ethernet ports give you enough connectivity options to use the RB433UAH as the central part of your network. In addition to our regular model, the UAH version adds more RAM, our popular high-speed Atheros 680MHz CPU, a microSD card slot and two USB 2.0 ports, making this the perfect universal choice for serious networks.

    The two USB 2.0 ports can be used for extending storage, adding a 3G wireless modem for backup connectivity or for a mobile installation, or all together.

    A microSD card gives you the ability to add more storage for Webproxy cache, logs, or Metarouter virtual machines.

     Send purchase questions

    Specifications

    Details
    Product code RB433UAH
    Architecture MIPSBE
    CPU AR7161
    CPU core count 1
    CPU nominal frequency 680 MHz
    Switch chip model IP175DLF
    Dimensions 105x150mm, 140g
    RouterOS license 4
    Size of RAM 128 MB
    Storage size 512 MB
    Storage type NAND
    Tested ambient temperature -30C to +60C
    Suggested price $165.00

    Powering

    Details
    Number of DC inputs 1
    PoE in Passive PoE

    Ethernet

    Details
    10/100 Ethernet ports 3

    Peripherals

    Details
    Memory card type microSD
    Memory Cards 1
    MiniPCI slots 3
    Serial console port RS232
    Number of USB ports 2
    USB slot type USB type A

    Other

    Details
    Voltage Monitor Yes
    Beeper Yes

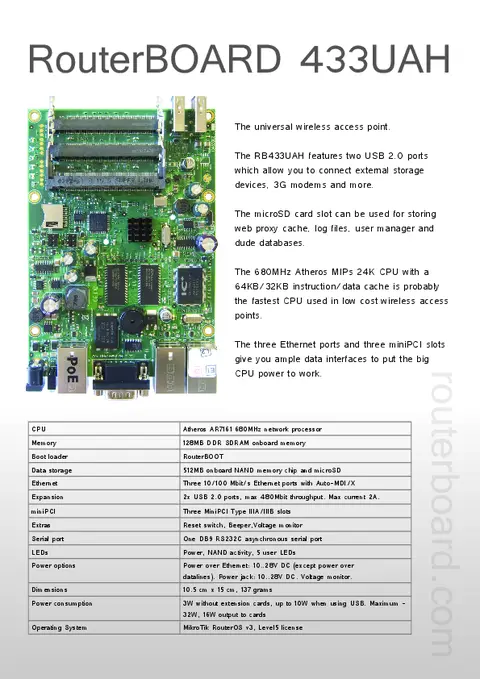

    BrochureOpen
    Quick GuideOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    Design Files DXF-PDFOpen
    Declaration of conformityOpen (CE)
