Discontinued

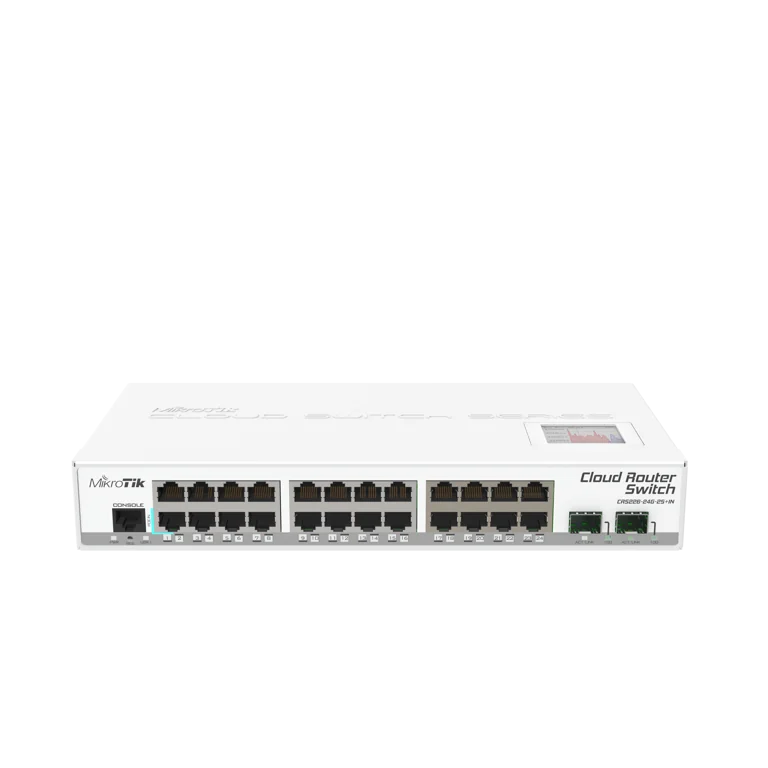

CRS226-24G-2S+IN
24x Gigabit Ethernet layer 3 Smart Switch, 2x SFP+ cages, LCD, 400MHz CPU, 64MB RAM, Metal desktop case, RouterOS L5
PoE
SFP/SFP+
CRS226-24G-2S+IN
Cloud Router Switch is our new member of our Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.
Specification
Specifications
- Product code CRS226-24G-2S+IN
- Suggested price $289.00
- Architecture MIPSBE
- CPU QCA8519
- CPU core count 1
- CPU nominal frequency 400 MHz
- Switch chip model QCA8519-AC2C
- Dimensions 285x145x45mm
- RouterOS license 5
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -35C to +65C
Powering
- Number of DC inputs 1
- Max power consumption 21 W
- Max power consumption without attachments 21W
- PoE in Passive PoE
Ethernet
- 10/100/1000 Ethernet ports 24
Fiber
- SFP DDMI Yes
- SFP+ ports 2
Peripherals
- Serial console port RJ45
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Switching results
| CRS226-24G-2S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 3,576.1 | 43,427.8 | 10,338.3 | 42,345.9 | 65,476.2 | 33,523.8 |
| Switching | Non blocking Layer 2 capacity | 3,576.1 | 86,855.7 | 10,338.3 | 84,691.7 | 65,476.2 | 67,047.6 |
| Switching | Non blocking Layer 1 throughput | 3,576.1 | 44,000.0 | 10,338.3 | 44,000.0 | 65,476.2 | 44,000.0 |
| Switching | Non blocking Layer 1 capacity | 3,576.1 | 88,000.0 | 10,338.3 | 88,000.0 | 65,476.2 | 88,000.0 |
Ethernet test results
| CRS226-24G-2S+IN | QCA8519 Max possible throughput test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 26.7 | 324.2 | 28.6 | 117.1 | 24.5 | 12.5 |
| Bridging | 25 bridge filter rules | 21.4 | 259.9 | 22.4 | 91.8 | 22.2 | 11.4 |
| Routing | none (fast path) | 23.0 | 279.3 | 23.5 | 96.3 | 24.5 | 12.5 |
| Routing | 25 simple queues | 19.6 | 238.0 | 22.4 | 91.8 | 21.0 | 10.8 |
| Routing | 25 ip filter rules | 7.9 | 95.9 | 10.4 | 42.6 | 10.8 | 5.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

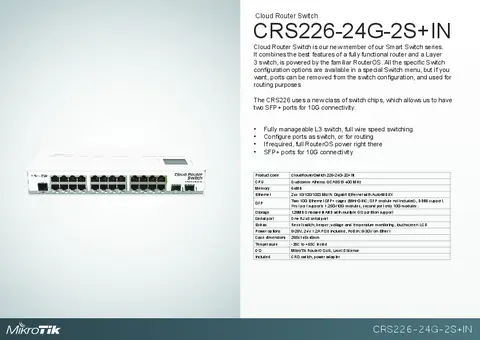

Documents
