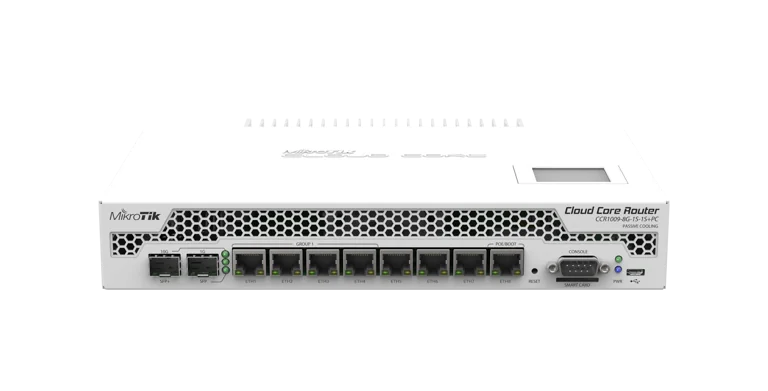

    CCR1009-8G-1S-1S+PC 8x Gigabit Ethernet, 1xSFP cage, 1xSFP+ cage, 9 cores x 1GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSU

    Discontinued


    Our popular 9-core Cloud Core Router is now available in a new passive cooling enclosure.

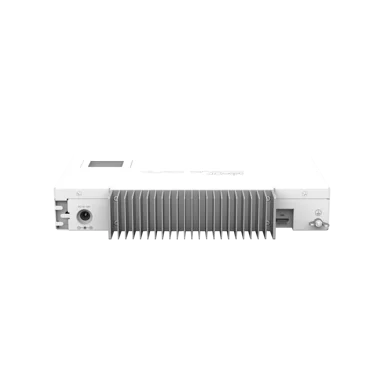

    This CCR1009 unit is equipped with two heat-pipes and a specially designed heat-sink, so its completely silent.

    The unit is powered by an external 24v 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

    The device comes with a desktop enclosure, but special rackmount brackets are also included, so it can be used either on desk or in rack.

     Send purchase questions

    Specifications

    Details
    Product code CCR1009-8G-1S-1S+PC
    Architecture TILE
    CPU TLR4-00980
    CPU core count 9
    CPU nominal frequency 1 GHz
    Switch chip model AR8327-BL1A-R
    Dimensions 272x190x47mm
    RouterOS license 6
    Operating System RouterOS
    Size of RAM 2 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    Suggested price $495.00

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 14-57 V
    Max power consumption 30 W
    Max power consumption without attachments 30W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 14-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 8

    Fiber

    Details
    SFP ports 1
    SFP+ ports 1

    Peripherals

    Details
    Number of SIM slots 1 Smart card (Mini SIM)
    Serial console port RS232
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type microUSB type AB
    Max USB current (A) 1

    Other

    Details
    CPU temperature monitor Yes
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

    Included parts

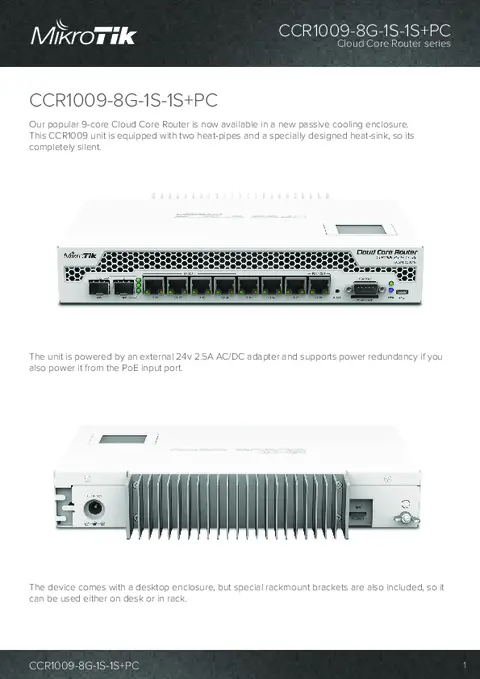

    BrochureOpen
    Quick GuideOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen

    High resolution images

    #
    #

    Ethernet test results

    CCR1009-8G-1S-1S+PCTile 9 core all port test with SFP+
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)974.011,828.32,817.011,538.410,491.15,371.4
    Bridging25 bridge filter rules974.011,828.31,390.05,693.41,447.6741.2
    Routingnone (fast path)974.011,828.32,817.011,538.48,217.14,207.2
    Routing25 simple queues974.011,828.31,803.07,385.11,947.2997.0
    Routing25 ip filter rules680.48,262.8870.13,563.9878.7449.9
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
