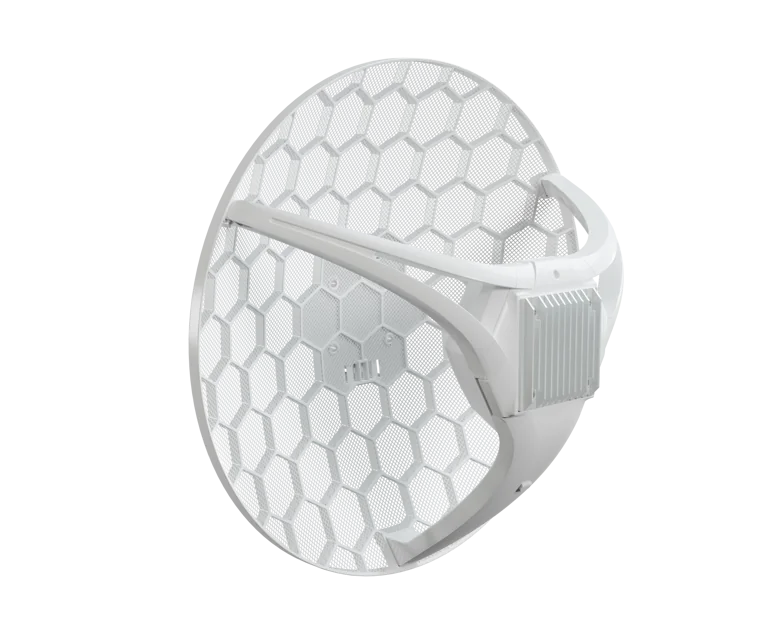

MikroTik Routers and Wireless - Products: LHGG LTE6 kit

Discontinued

Do you want high-speed Internet in the middle of nowhere? Then you want our newest LHGG LTE6 kit! It is a device for “last mile” Internet access in very remote locations. Mount it outdoors, on a pole, mast, or any tall structure, and connect even where cell phones fail. Due to its large high-gain 17 dBi antenna, the LHGG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The LHGG LTE6 kit features a 300 Mbps CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

This device features a Gigabit Ethernet port with PoE-in for powering the device from the Ethernet port. The grid antenna design can withstand harsh, windy weather and can be mounted in different ways. There is a massive heat sink, so you don’t have to worry about overheating. With this device, you can really focus on the important stuff while the tech simply works in the background.

Send purchase questions

Specifications

Details
Product code	RBLHGGR&R11e-LTE6
Architecture	ARM 64bit
CPU	88F3720
CPU core count	2
CPU nominal frequency	800 MHz
Dimensions	391 x 391 x 237 mm
RouterOS license	3
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-30°C to 70°C
Suggested price	$219.00

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	8 W
Max power consumption without attachments	8 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC	35666210

Ethernet

Details
10/100/1000 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
MiniPCI-e slots	1

Other

Details
Mode button	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP 54

Included parts

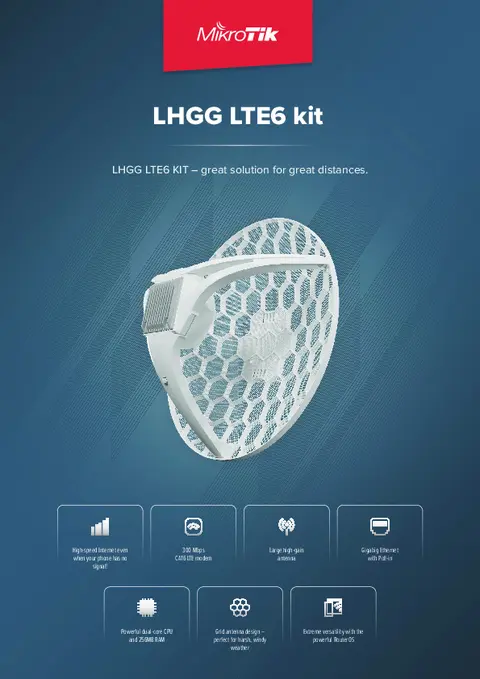

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

Block DiagramOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RBLHGGR&R11e-LTE6		88F3720 1G one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.3	987.3	235.0	962.6	789.9	404.4
Bridging	25 bridge filter rules	81.3	987.3	221.3	906.4	678.3	347.3
Routing	none (fast path)	81.3	987.3	235.0	962.6	790.4	404.7
Routing	25 simple queues	81.3	987.3	235.0	962.6	450.0	230.4
Routing	25 ip filter rules	81.3	987.3	219.8	900.3	219.5	112.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
