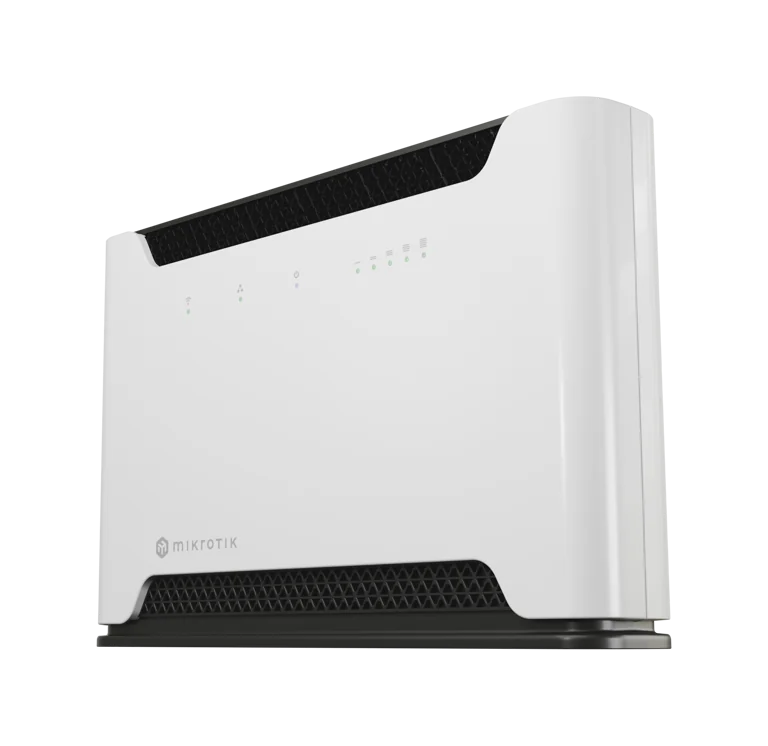

Chateau LTE12 (2025)
Your best friend when it comes to mobile networks. Amazing in the hands of seasoned system administrators. Or in a household with zero IT skills. Or anything in between. Chateau can do it all. New modem by Quectel: added 4x4 MIMO for more bands: 1 / 3 / 7 / 38 / 40 / 41. 5x Gigabit Ethernet ports, 600 Mbps Cat12 LTE.
ARM
Quad-core CPU
LTE Cat12
MIMO 4x4
ROS v7
Dual-band
Chateau LTE12 (2025)
Remove the bottleneck in your mobile internet setup
Are you tired of ISP or operator-issued routers that limit your speed and coverage? Chateau LTE12 is the solution, delivering faster, more reliable mobile internet, whether you are in the city or the countryside. With carrier aggregation and expanded 4x4 MIMO support, you’ll experience:
- Faster speeds in crowded areas
- More stable connections in remote locations
- Wider coverage across multiple LTE bands
New and improved LTE connectivity
- Upgraded LTE12 modem for stronger, reliable connections.
Expanded 4x4 MIMO support on more bands: 1 / 3 / 7 / 38 / 40 / 41 - Dual-band Wi-Fi for seamless performance across all devices
- Now with B32 support for improved LTE performance in supported regions!
Built for homes and businesses

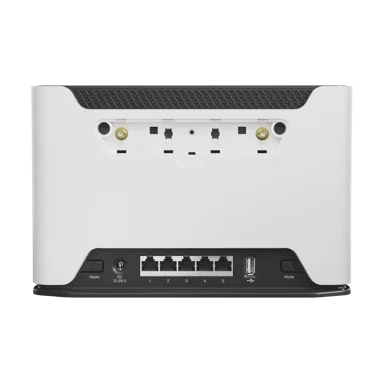

- 5x Gigabit Ethernet ports to connect media servers, PC towers, TVs, or smart home systems.
- Dual-band Wi-Fi (2.4 GHz & 5 GHz) ensures stable connections for all your devices.
- External LTE antenna support (SMA female ports) to boost signal strength in tricky signal areas.
- RouterOS for advanced security, VPNs, and full network control.
Stay ahead of connectivity challenges with the improved Chateau LTE12. Powerful, secure, and designed to keep you connected—anytime, anywhere!
Specification
Specifications

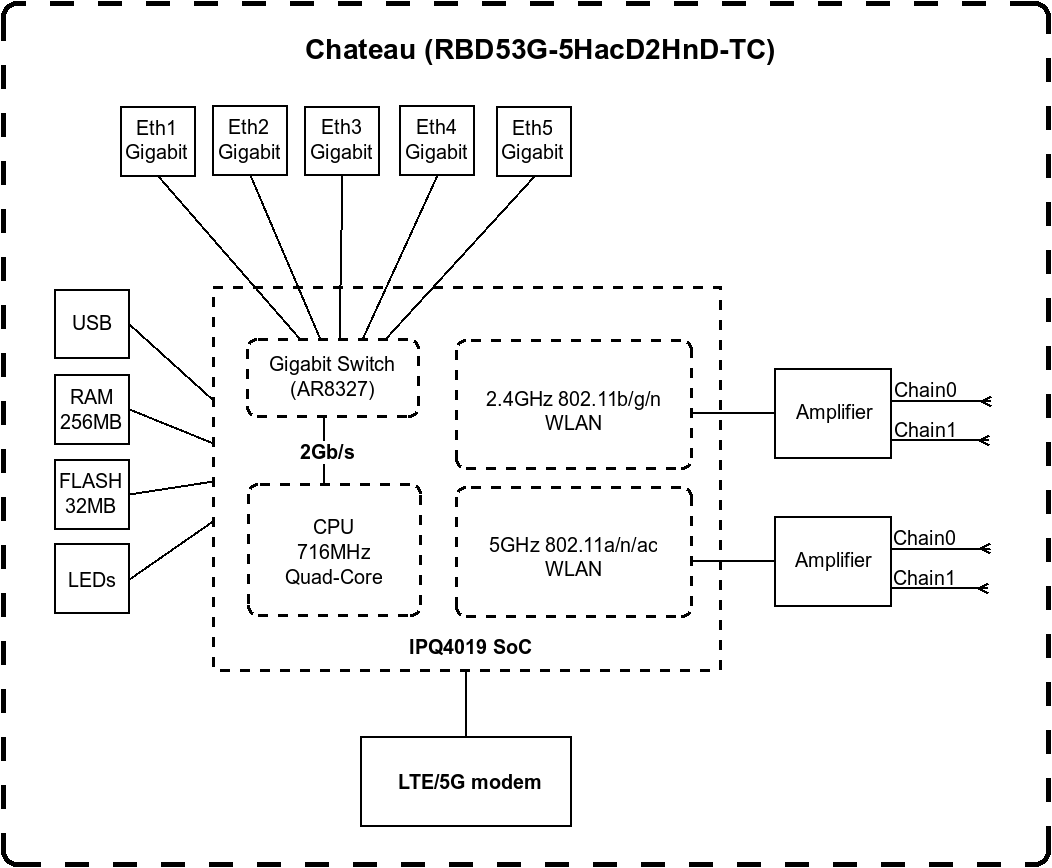

- Product code D53G-5HacD2HnD-TC&EG120K-EA
- Suggested price $179.00
- Architecture ARM 32bit
- CPU IPQ-4019
- CPU core count 4
- CPU nominal frequency 448-896 (auto) MHz
- CPU Threads count 4
- Switch chip model IPQ-4019
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 256 MB
- Storage size 32 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -20°C to 70°C
Powering
- Number of DC inputs 1 (DC jack)
- DC jack input Voltage 12-28 V
- Max power consumption 24 W
- Max power consumption without attachments 18 W
- Cooling type Passive
Mobile
- 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
-
3G bands
3 (1800MHz)
1 (2100MHz)
5 (850MHz)
8 (900MHz)
- LTE Category 12 (600Mbps Downlink, 150Mbps Uplink)
- MIMO DL 4x4
- MIMO UL 1x1
-
LTE FDD bands
1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28 (700MHz)
32 (1500 MHz)
-
LTE TDD bands
40 (2300MHz)
41 (2500MHz)
38 (2600MHz)
- TAC 86642205
Wireless specifications
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2
- Wireless 2.4 GHz chip model IPQ-4019
- Wireless 2.4 GHz generation Wi-Fi 4
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz Number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 4
- Wireless 5 GHz chip model IPQ-4019
- Wireless 5 GHz generation Wi-Fi 5
Ethernet
- 10/100/1000 Ethernet ports 5
Peripherals
- Number of SIM slots 1 Modem (Micro SIM)
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- Mode button Yes
Certification & Approvals
- Certification CE, EAC, ROHS
- IP 20
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Wireless Specification
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
25
-100
11MBit/s
25
-94
6MBit/s
26
-95
54MBit/s
23
-78
MCS0
26
-96
MCS7
22
-73
5 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
26
-96
54MBit/s
22
-80
MCS0
26
-96
MCS7
21
-75
MCS9
19
-70
Ethernet test results
| D53G-5HacD2HnD-TC&EG120K-EA | IPQ-4019 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Bridging | 25 bridge filter rules | 162,5 | 1973.4 | 351,2 | 1438.5 | 352,1 | 180.3 |
| Routing | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Routing | 25 simple queues | 162,5 | 1973.4 | 468,6 | 1919.4 | 493,4 | 252.6 |
| Routing | 25 ip filter rules | 162,5 | 1973.4 | 222,8 | 912.6 | 227,4 | 116.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| D53G-5HacD2HnD-TC&EG120K-EA | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
