Discontinued
RB411UAHR
680MHz CPU, 64MB RAM, 1xEthernet, miniPCI, USB integrated 2.4Ghz wireless, SIM slots, RouterOS L4
Mini PCI-e
Outdoors
PoE
RB411UAHR

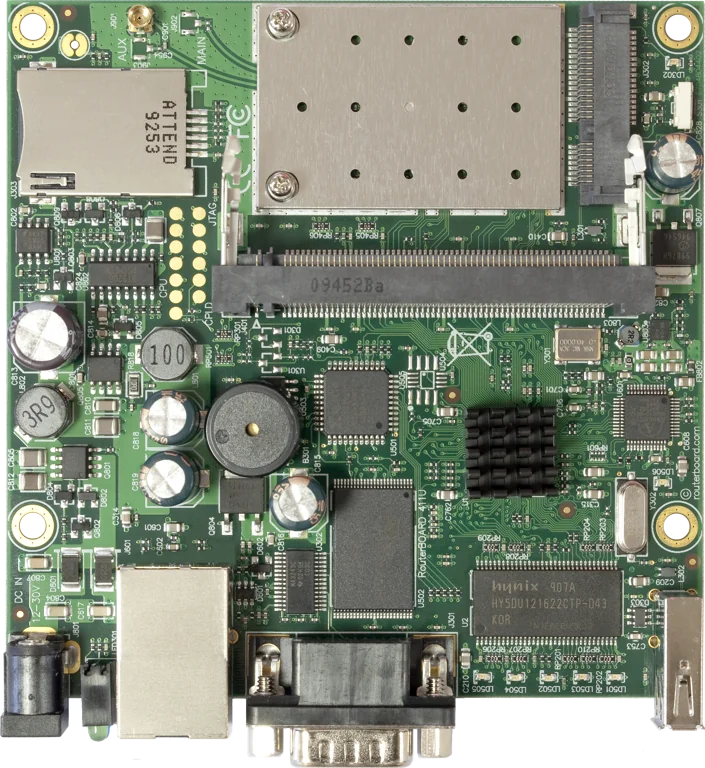

The RB411UAHR has it all, just as the name suggests. It has the popular high-speed CPU, a miniPCI-e slot and a SIM slot for 3G modems, a USB 2.0 port for attaching external storage, a regular miniPCI card slot for 802.11abgn wireless cards, a Ethernet port and a built-in 2.4Ghz wireless radio.
RB411UAHR includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a mobile 3G router, and more - all at the same time.
Specification
Specifications
- Product code RB411UAHR
- Suggested price $119.00
- Architecture MIPSBE
- CPU AR7161
- CPU core count 1
- CPU nominal frequency 680 MHz
- Dimensions 105x105mm
- RouterOS license 4
- Size of RAM 64 MB
- Storage size 64 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -30C to 60C
Powering
- Number of DC inputs 1
- PoE in Passive PoE
Wireless specifications
- Wireless 2.4 GHz Max data rate 54 Mbit/s
- Wireless 2.4 GHz Number of chains 1
- Wireless 2.4 GHz standards 802.11b/g
- Wireless 2.4 GHz chip model AR2417
Ethernet
- 10/100 Ethernet ports 1
Peripherals
- Number of SIM slots 1 (Mini SIM)
- MiniPCI slots 1
- MiniPCI-e slots 1
- Serial console port RS232
- Number of USB ports 1
- USB slot type USB type A
Other
- Voltage Monitor Yes
- Beeper Yes
Wireless Specification
2.4 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
-87
54MBit/s
15
-69
MCS0
