RB411AH

680MHz CPU, 64MB RAM, 1xEthernet, miniPCI, RouterOS L4

Outdoors

PoE

Specification Find retailer

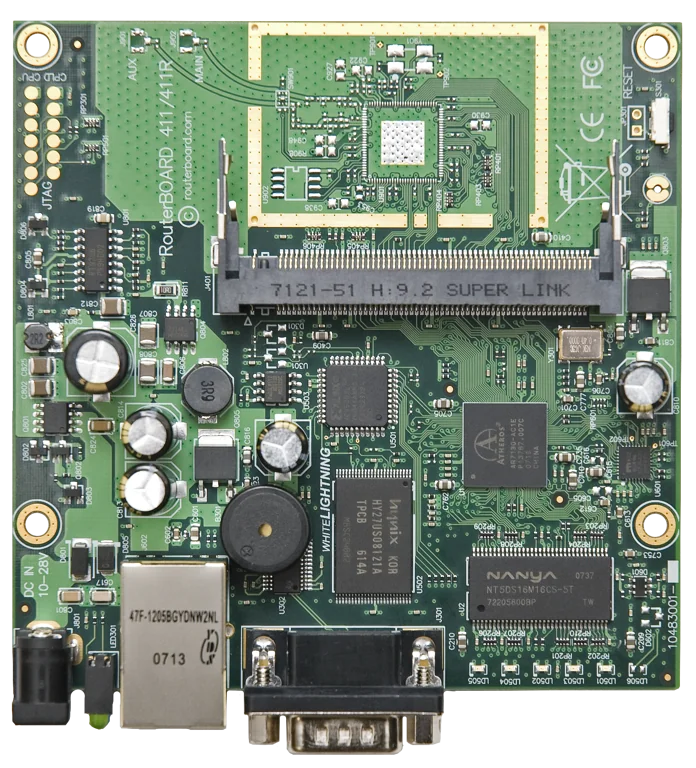

RB411AH

The RB411AH is designed with size and cost in mind. This small device will fit perfectly into small AP, CPE devices or run your wireless backup link. The powerful 680MHz Atheros CPU gives it the ability to do all of this and more.

The RB411AH includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

Specification

Specifications

Product code RB411AH
Suggested price $99.00
Architecture MIPSBE
CPU AR7161
CPU core count 1
CPU nominal frequency 680 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-28 V
Max power consumption 14 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 10-28 V

Ethernet

10/100 Ethernet ports 1

Peripherals

MiniPCI slots 1
Serial console port RS232

Other

Voltage Monitor Yes
Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB411AH		AR7161 100M 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	8.1	98.6	23.5	96.3	148.0	75.8
Bridging	25 bridge filter rules	8.1	98.6	23.5	96.3	86.4	44.2
Routing	none	8.1	98.6	23.5	96.3	147.0	75.3
Routing	25 simple queues	8.1	98.6	23.5	96.3	137.0	70.1
Routing	25 ip filter rules	8.1	98.6	23.5	96.3	59.2	30.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
