Discontinued
CCR1009-8G-1S
1U rackmount, 8x Gigabit Ethernet, 1xSFP cage, 9 cores x 1.2GHz CPU, 1GB RAM, RouterOS L6
PoE
SFP/SFP+

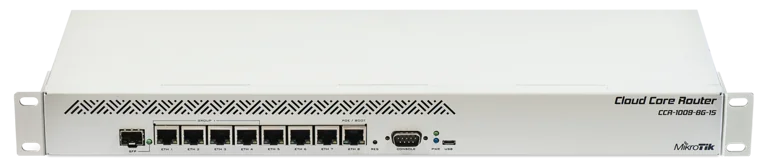

CCR1009-8G-1S
The CCR1009 is a powerful Ethernet router based on the cutting edge TILERA 9 core CPU.
It comes with 1GB of RAM, eight Gigabit Ethernet ports (Ether1-4 are in a Switch group), and one SFP cage (SFP module not included).
Specification
Specifications
- Product code CCR1009-8G-1S
- Suggested price $425.00
- CPU TLR4-00980CG-10CE
- CPU core count 9
- CPU nominal frequency 1.2 GHz
- Switch chip model AR8327-BL1A-R
- Dimensions 444x175x47mm
- RouterOS license 6
- Operating System RouterOS
- Size of RAM 1 GB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -20C .. +60C
Powering
- Number of DC inputs 1
- Max power consumption 34 W
- Max power consumption without attachments 34W
- PoE in Passive PoE
Ethernet
- 10/100/1000 Ethernet ports 8
Fiber
- SFP DDMI Yes
- SFP ports 1
Peripherals
- Serial console port RS232 + Header
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type microUSB type AB
Other
- CPU temperature monitor Yes
- Current Monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Ethernet test results
| CCR1009-8G-1S | Tile 9 core all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 487 | 5914.1 | 1412 | 5783.6 | 9060 | 4638.7 |
| Bridging | 25 bridge filter rules | 487 | 5914.1 | 1390 | 5693.4 | 1447.6 | 741.2 |
| Routing | none (fast path) | 487 | 5914.1 | 1412 | 5783.6 | 9060 | 4638.7 |
| Routing | 25 simple queues | 487 | 5914.1 | 1412 | 5783.6 | 1947.2 | 997 |
| Routing | 25 ip filter rules | 487 | 5914.1 | 870.1 | 3563.9 | 878.7 | 449.9 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
