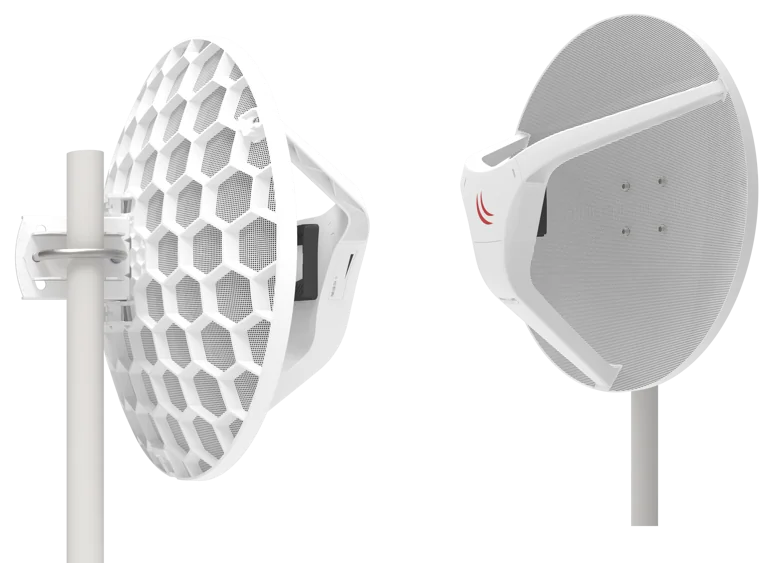

    Wireless Wire Dish 2 Gb/s aggregate link up to 1500m+ without cables!

    The Wireless Wire Dish is a ground breaking solution which offers Fiber speed and quality on distances up to 1500 m for a fraction of the price!

    This amazing kit makes a secure AES encrypted 60 GHz wireless link that is not affected by the crowded WiFi spectrum, offering a stable and fast link for distances of 1500 meters or more. Simply point the included devices at one another and power them on, they are already preconfigured to connect automatically and will make a 2 Gb/s aggregate link.

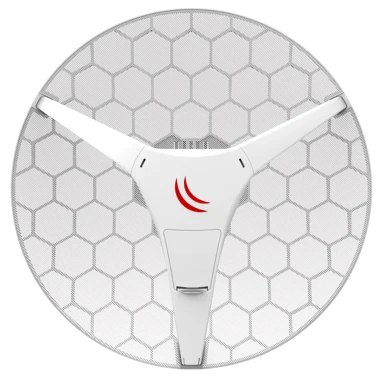

    The box includes two LHGG-60ad devices that are already paired together, power supplies, PoE injectors and mounting kits for both devices.

     Send purchase questions

    Specifications

    Details
    Product code Wireless Wire Dish
    Architecture ARM 32bit
    CPU IPQ-4019
    CPU core count 4
    CPU nominal frequency 716 MHz
    Dimensions Ø 391 x 222 mm
    License level 3
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40°C .. +70°C
    Suggested price $298.00

    Powering

    Details
    Max Power consumption 5W
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V
    Number of DC inputs 1 (PoE-IN)

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Included parts

    Quick GuideOpen

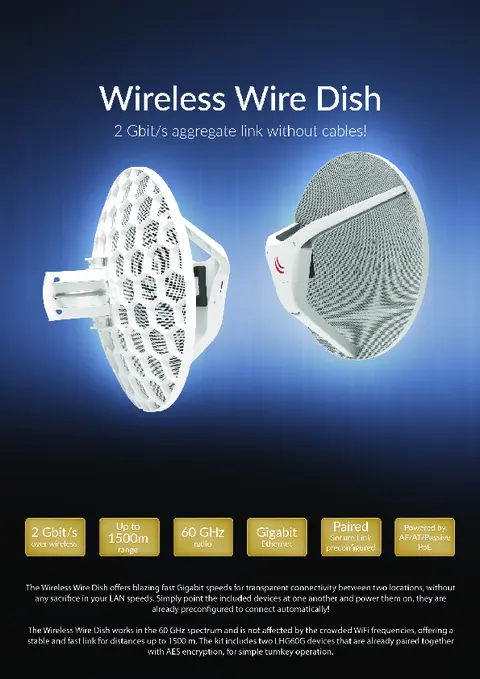

    BrochureOpen
    RouterOS current releaseDownload
    Selection guide for PtP linksOpen
    Selection guide for PtMP linksOpen
    RouterOS software manualOpen

    High resolution images

    Ethernet test results

    RBLHGG-60ad kitr2IPQ-4019 1G one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1234.9962.21483.0759.3
    Bridging25 bridge filter rules81.2986.1227.7932.7231.9118.7
    Routingnone (fast path)81.2986.1234.9962.21489.5762.6
    Routing25 simple queues81.2986.1234.9962.2375.7192.4
    Routing25 ip filter rules81.2986.1177.9728.7180.192.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
