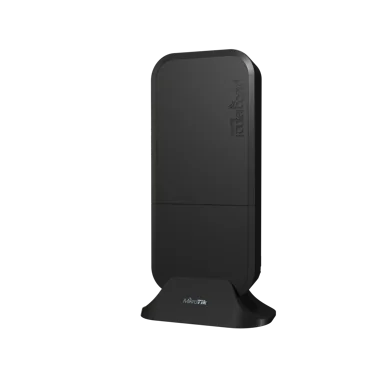

    wAP ac BE wAP ac – a small dual-band weatherproof wireless access point for mounting on a pole, wall, or the ceiling. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

    Discontinued


    The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need a capable wireless connection. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

    Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else since this frequency is less cluttered.

    The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner.

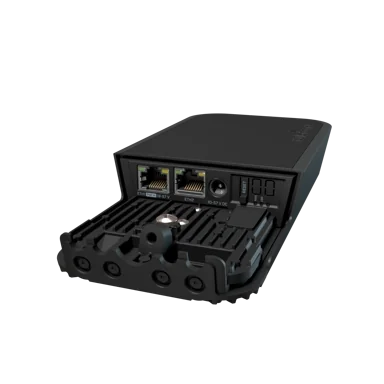

    There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP ac attracts less attention and blends into any environment.It looks unobtrusive and sleek.

     Send purchase questions

    Specifications

    Details
    Product code RBwAPG-5HacD2HnD-BE
    Architecture ARM 32bit
    CPU IPQ-4018
    CPU core count 4
    CPU nominal frequency 488-896 (auto) MHz
    Switch chip model IPQ-4018
    Dimensions 185 x 85 x 30 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $89.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2.5
    Wireless 2.4 GHz chip model IPQ-4018
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 2.5
    Wireless 5 GHz chip model IPQ-4018
    Wireless 5 GHz generation Wi-Fi 5
    WiFi speed AC1200

    Ethernet

    Details
    10/100/1000 Ethernet ports 2

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 10-57 V
    Max power consumption 10 W
    Max power consumption without attachments 10 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-100
    11MBit/s25-94
    6MBit/s25-96
    54MBit/s19-78
    MCS025-96
    MCS718-73
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s24-96
    54MBit/s20-80
    MCS024-96
    MCS719-75
    MCS917-70

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Block DiagramOpen
    Mounting dimensionsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open

    High resolution images

    #
    #
    #

    Ethernet test results

    RBwAPG-5HacD2HnD-BEr3IPQ-4018 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162.51973.4469.91924.71484.8760.2
    Bridging25 bridge filter rules162.11968.5352.91445.5359.2183.9
    Routingnone (fast path)162.51973.4469.91924.71488761.9
    Routing25 simple queues162.51973.4469.91924.7506.3259.2
    Routing25 ip filter rules162.21969.8240.8986.3242.9124.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RBwAPG-5HacD2HnD-BEr3IPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
