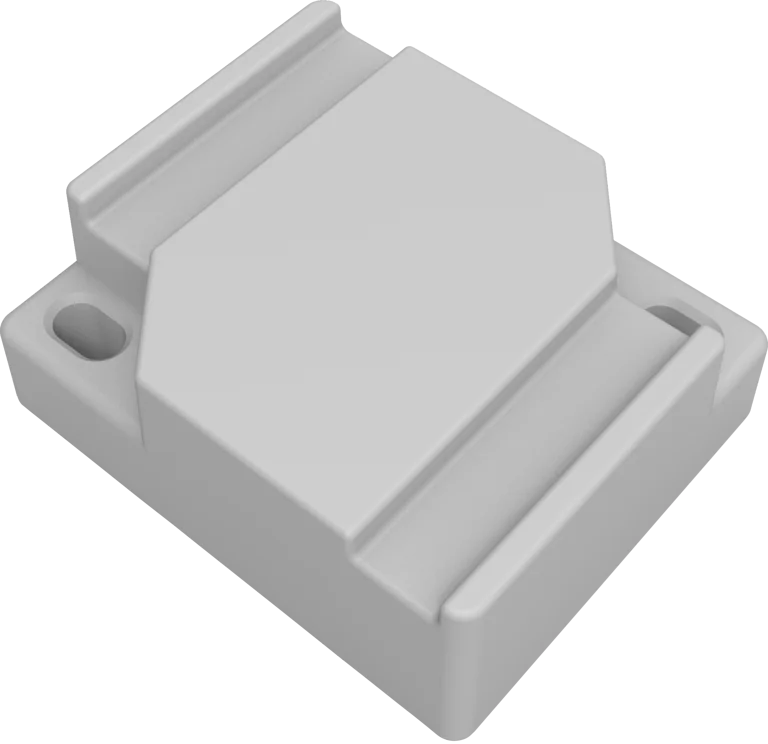

    TG-BT5-OUT An outdoor heavy-duty Bluetooth tag for the MikroTik KNOT or other IoT asset-tracking/telemetry setups. Built-in temperature sensors and accelerometer. Cast in industrial grade molds for maximum protection.

    TG-BT5-OUT : the heavy-duty tag for industrial challenges

    This version of our BLE tags comes completely sealed, cast in industrial-grade molds to give it a solid IP69k ingress protection rating. In other words, this tag is dust-tight – nothing gets in, and it is fully protected against close-range high-pressure, high-temperature spray downs. Perfect for industrial telemetry systems or to track all kinds of heavy equipment and materials at a construction site.

    Like the indoor version, this tag also supports iBeacon, Eddystone, and MikroTik telemetry formats. There is an NFC encoded MAC address and optional encryption. Unlike the indoor version, the outdoor tag comes with a built-in temperature sensor that can be used for condition monitoring. The ±0.5°C precision can be very useful in cold supply chain logistics.

    TG-BT5-OUT features an improved 550 mAH battery that will last around five years (with a sending interval of 1s). It is suitable for strapping to all kinds of surfaces, and it can handle a temperature range of -20°C to 85°C.

     Send purchase questions

    Specifications

    Details
    Product code TG-BT5-OUT
    Size of RAM 32 KB
    Storage size 512 KB
    Storage type FLASH
    Suggested price $18.00

    Powering

    Details
    Number of DC inputs 1

    Other

    Details
    Bluetooth version 5.2

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP69K
    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    Declaration of conformityOpen (CE)

    High resolution images
