RB433GL

680MHz CPU, 128MB RAM, 3x Gigabit Ethernet, 3x miniPCI, USB, RouterOS L5

Outdoors

PoE

Specification Find retailer

RB433GL

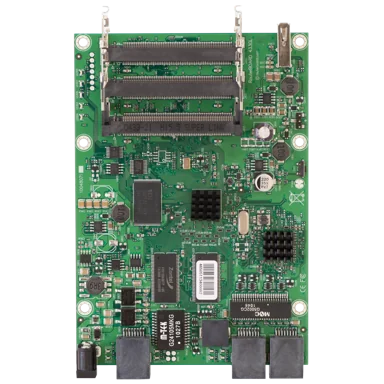

The RB433GL has three miniPCI slots, three Gigabit Ethernet ports and one USB port for storage or a 3G modem.

Three Gigabit Ethernet ports and three miniPCI slots gives you plenty of options- it can be high speed Gigabit Router, sector AP, wireless backhaul, firewall etc. Powerful Atheros 680MHz CPU, 128MB of RAM and Level5 RouterOS license provides required horsepower.

Differences between RB433GL and RB433AH can be seen in the file (RB411L differences) in the left hand menu.

Specification

Specifications

Product code RB433GL
Suggested price $139.00
Architecture MIPSBE
CPU AR7161
CPU core count 1
CPU nominal frequency 680 MHz
Switch chip model AR8327-BL1A
Dimensions 105 mm x 154 mm,
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C .. +70°C tested

Powering

Number of DC inputs 1
PoE in Passive PoE

Ethernet

10/100/1000 Ethernet ports 3

Peripherals

MiniPCI slots 3
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A

Other

Voltage Monitor Yes
Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB433GL		AR7161 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	58.0	704.4	171.9	704.1	187.3	95.9
Bridging	25 bridge filter rules	58.5	710.4	84.5	346.1	86.4	44.2
Routing	none	59.7	725.0	136.1	557.5	147.0	75.3
Routing	25 simple queues	55.2	670.3	117.7	482.1	137.0	70.1
Routing	25 ip filter rules	54.7	664.3	59.4	243.3	59.2	30.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
