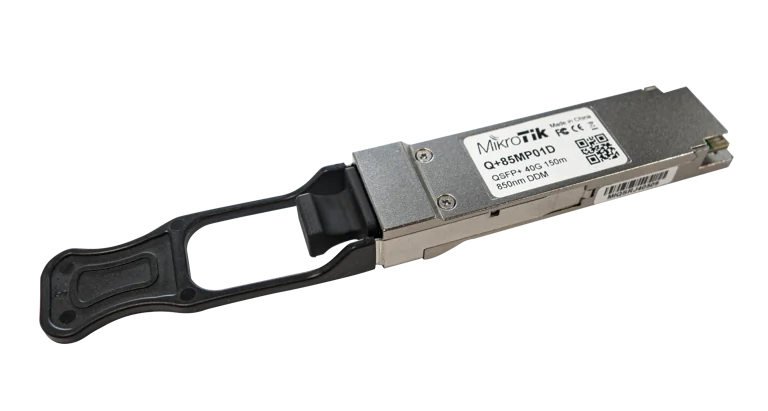

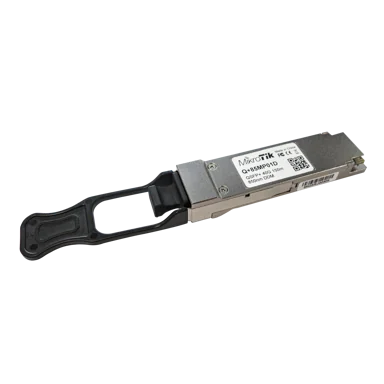

Q+85MP01D 40 Gbps 850nm optical QSFP+ module


    This is an optical module with MTP/MPO connector for 12-fiber array that requires Female-Female Type-B polarity MTP/MPO optical cable, which offers 4 independent full-duplex channels with up to 10 Gbps per channel bandwidth and aggregate bandwidth of 40 Gbps.

    It can provide a connection over 100 m on OM3 Multimode Fiber (MMF) and 150 m on OM4 MMF. The module has built-in digital diagnostic functions, including optical power monitoring, and will perform well in environments up to 70° C.

    It has been designed to meet the harshest conditions, including temperature, humidity and EMI interference, so we definitely recommend this as a reliable solution for all your 40 Gbps QSFP+ devices.

     Send purchase questions

    Product specifications

    Product code Q+85MP01D
    Connector 1x12 MTP/MPO
    Data Rate 40G
    Distance 150m
    Format QSFP
    Mode MM
    Wavelength 850nm
    Suggested price $59
    SFP compatibility listOpen
