    PWR-LINE AP (EU plug) 802.11b/g/n WiFi AP with a single Ethernet port and capability to connect to other PWR-LINE devices through the electrical lines in your premises (Type C plug, European)

    The PWR-Line AP is a small Wi-Fi access point, made as an accessory to your existing network, for places, where your signal or your cable is unable to reach. Unit comes with Type C power plug (commonly used in Europe, South America & Asia).

    Especially useful in homes with thick walls, where you can extend Wi-Fi coverage to those rooms, where signal is poor, without having to re-wire your house.

    Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises. They will link together through the power lines. You can install up to eight PWR-LINE devices to further build your network.

     Send purchase questions

    Product specifications

    Details
    Product code PL7411-2nD
    10/100 Ethernet ports 1
    Antenna gain dBi for 2.4 GHz 1.5
    Architecture MIPSBE
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 650 MHz
    Can be used indoors Yes
    Certification CE/RED, EAC, ROHS
    Dimensions 50 x 68 x 33mm
    License level 4
    Max power consumption 7 W
    Operating System RouterOS
    PLC chipset AR7420
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -20°C to 60°C
    Wi-Fi generation Wi-Fi 4
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz chip model QCA9533
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Suggested price $42

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71
    Quick GuideOpen

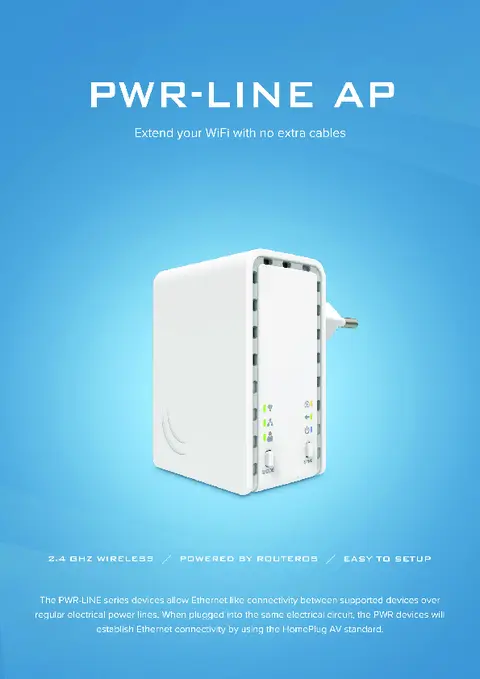

    BrochureOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    PL7411-2nDQCA9533 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.382.242.1
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.3118.760.8
    Routing25 ip filter rules8.198.423.596.353.927.6
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Download: Full CE declaration (PDF)
