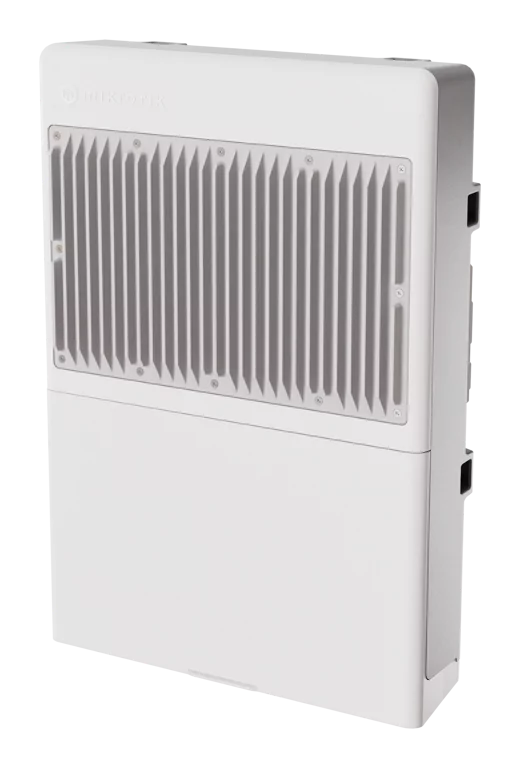

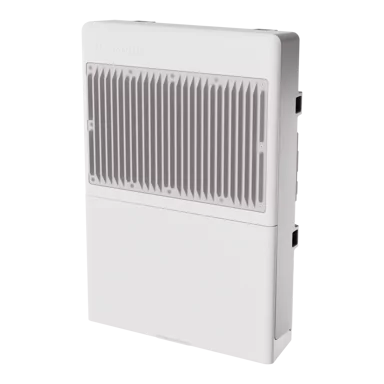

netPower Lite 8P
Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger – because your CCTV cameras and access points deserve true off-the-grid resilience.
Power cuts shouldn’t mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery – and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
The netPower Lite 8P comes with eight Gigabit Ethernet ports featuring 802.3af/at PoE-Out, plus two 10G SFP+ uplinks for high-speed backhaul. It runs SwOS Lite – fast, efficient, and refreshingly simple to manage. Power input is flexible: just feed 24–57 V DC into the 2-pin terminal.
Just like our other outdoor-friendly gear, this switch is built to endure. With an operating range of –40 °C to +70 °C, the netPower Lite 8P keeps delivering where many devices would already be giving up. The switch can draw up to 181 W total, with a 120 W PoE-Out budget. When incoming power is limited, PoE is prioritized automatically – charging slows down first to keep your essential devices online.
Built-in UPS support:
effective, reliable, gives you options
Connect a 24 V nominal battery – typically two 12 V units in series – and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.
The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.

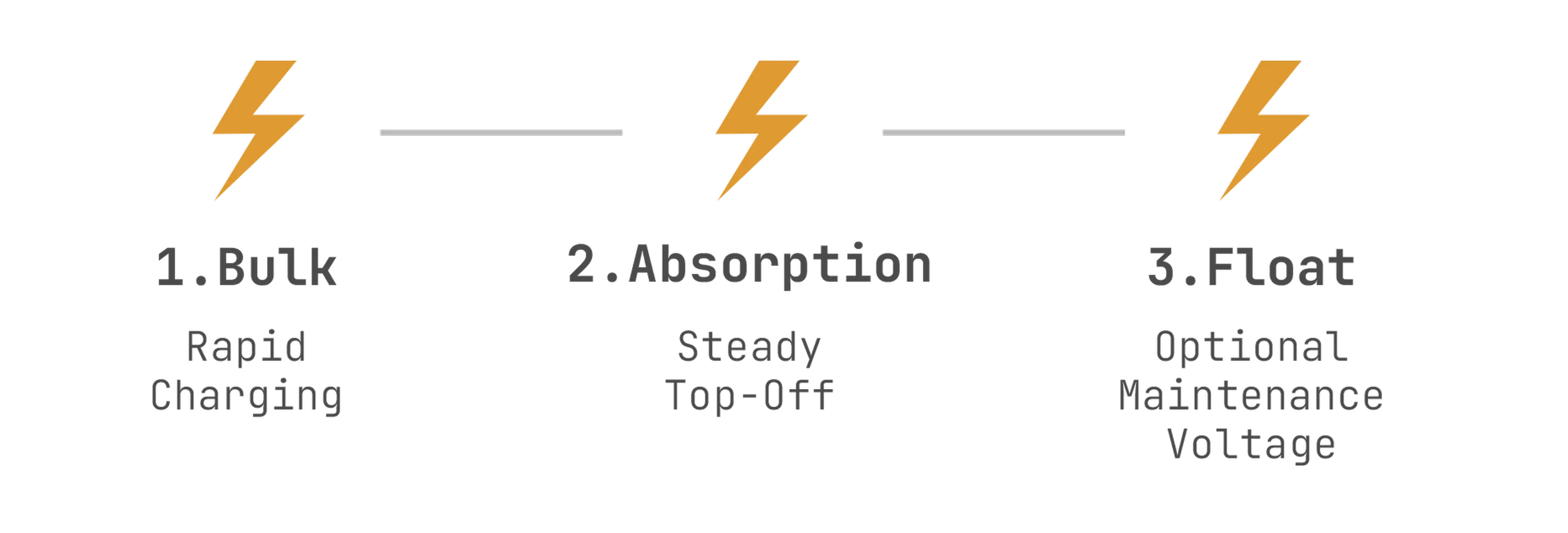

Charging is handled intelligently through three stages:

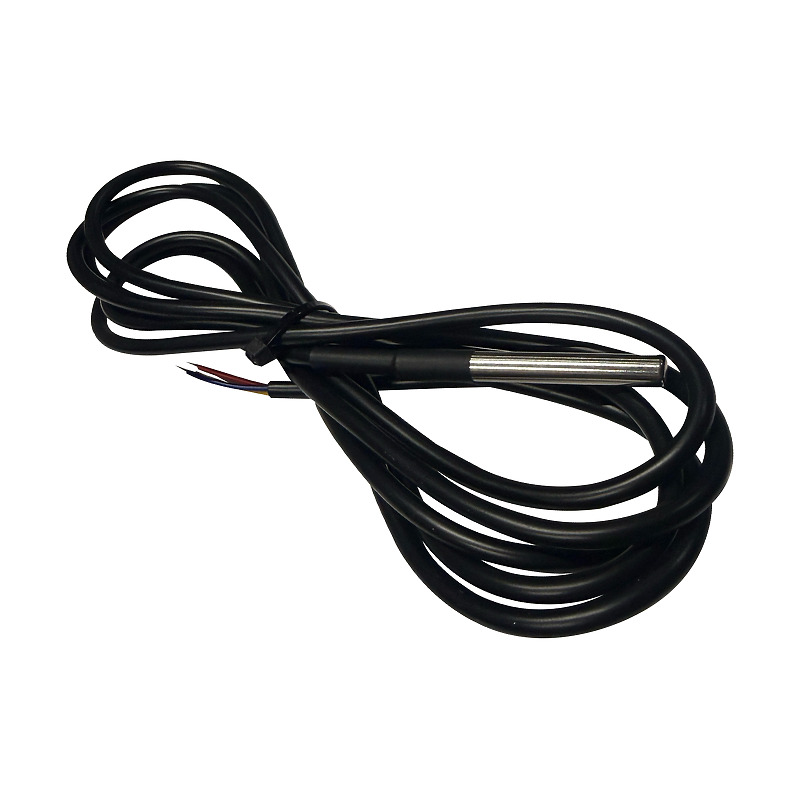

A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.
Alarm input: connect a simple 2-wire contact to detect tampering, and the device will report it instantly in SwOS Lite and over SNMP. You can pair it with a RouterOS device for additional automation or creative scripting triggers.
Typical Deployment: powering cameras and wireless backhaul from a single UPS-enabled switch with zero downtime in the long run
Perfect for WISPs, CCTV, apartments, utilities, and smart-city networks
Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.
So if you value every watt and every second of uptime – the netPower Lite 8P is ready to keep you online…even when the lights go out.
Specification
- Product code CSS610-8P-2S+OUT
- Suggested price $199.00
- Switch chip model 88E6193
- Operating System SwOS Lite
- Storage size 64 KB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 3 (2-pin terminal)
- 2-pin terminal input Voltage 24-57 V (Battery 22-30 V)
- Max power consumption 208 W
- Max power consumption without attachments 9 W
- Cooling type Passive
- PoE-out ports Ether1-Ether8
- PoE out 802.3af/at
- Low voltage PoE-Out current limit 1.0 A
- High voltage PoE-Out current limit 0.64 A
- Total output power 120
- 10/100/1000 Ethernet ports 8
- Number of 1G Ethernet ports with PoE-out 8
- SFP+ ports 2
- CPU temperature monitor Yes
- Current Monitor Yes
- Voltage Monitor Yes
- Certification CE, EAC, ROHS
- IP 54
| CSS610-8P-2S+OUT | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,275.7 | 27,635.9 | 6,578.9 | 26,947.4 | 41,666.7 | 21,333.3 |
| Switching | Non blocking Layer 2 capacity | 2,275.7 | 55,271.8 | 6,578.9 | 53,894.7 | 41,666.7 | 42,666.7 |
| Switching | Non blocking Layer 1 throughput | 2,275.7 | 28,000.0 | 6,578.9 | 28,000.0 | 41,666.7 | 28,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,275.7 | 56,000.0 | 6,578.9 | 56,000.0 | 41,666.7 | 56,000.0 |
