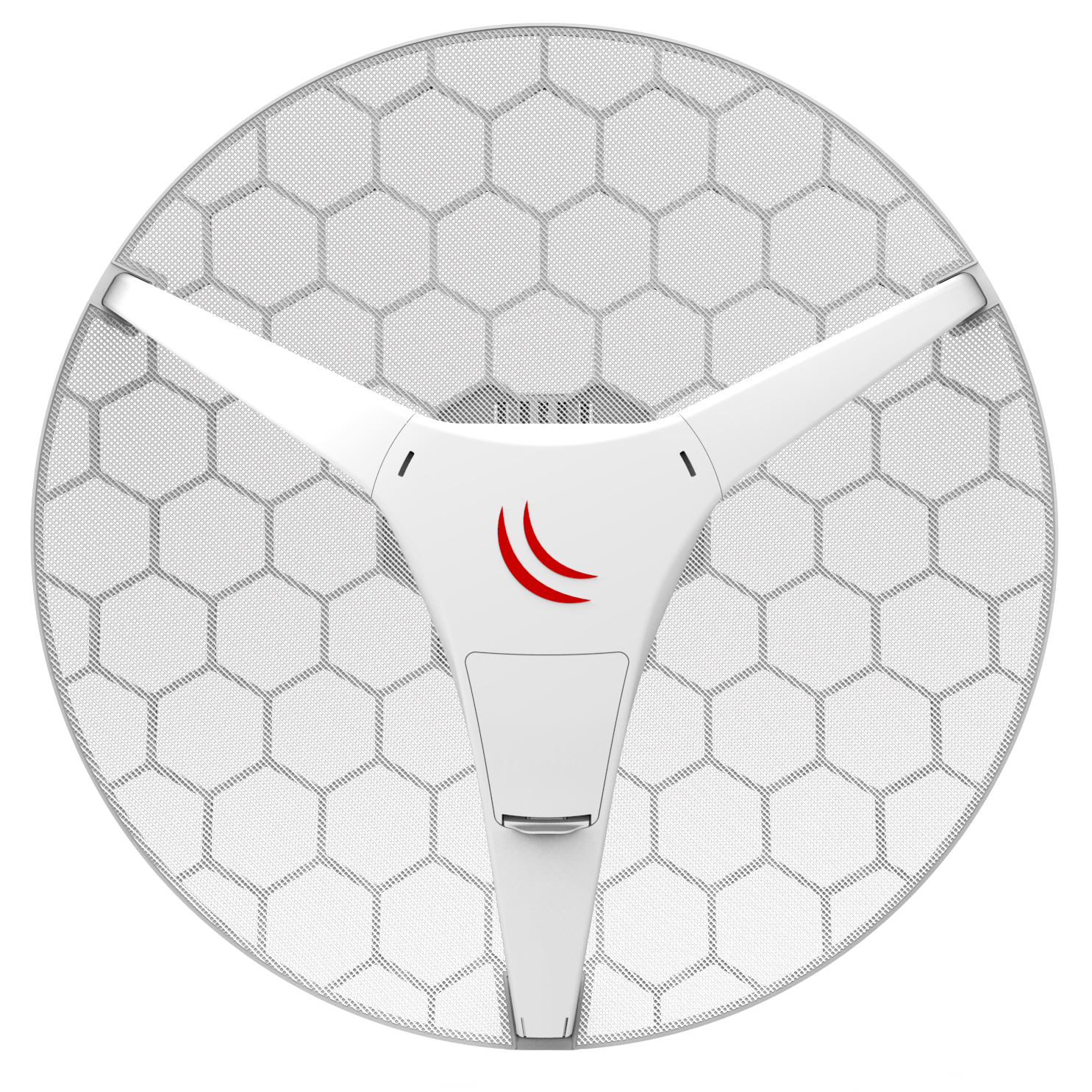

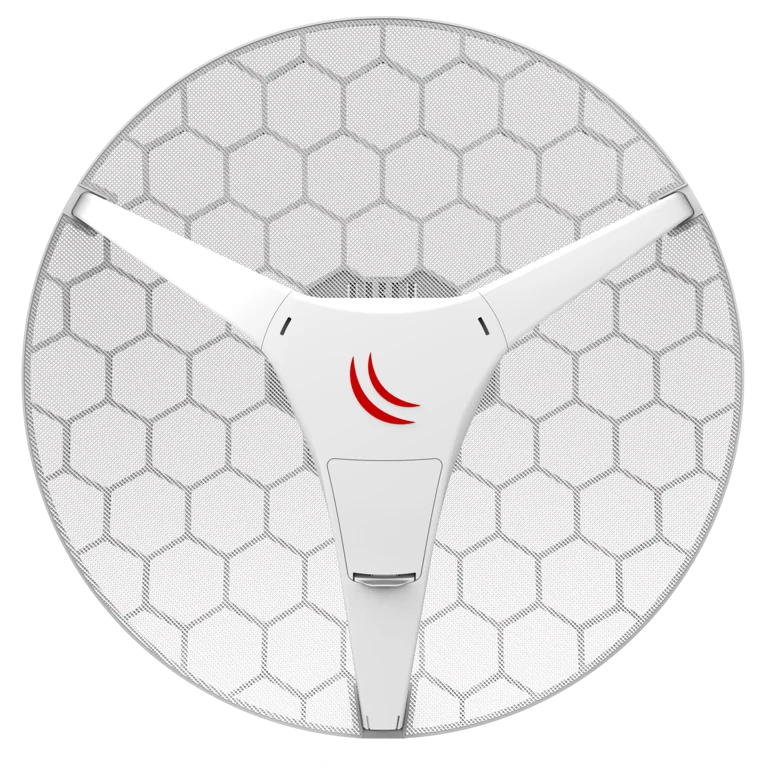

LHG Lite60
For use as 60GHz CPE in Point -to-Multipoint setups for connections up to 800m with wAP 60G AP, low cost version with 10/100Mbps Ethernet port
The LHG Lite60 is a new model in our 60 GHz lineup. This is a low cost CPE unit for connecting to a 60 GHz AP at longer distances, enabling you to build a cost effective point to multipoint setup in the clean 60 GHz wireless spectrum.
Connect up to eight of these CPE units to a 60 GHz access point, such as our wAP60G AP. For links up to 800 meters, this is the best alternative for wireless connections where 2 and 5 GHz wireless space is crowded and unreliable, at a fraction of the cost. Also, it's possible to make point-to-point link with two LHG Lite60.
Lightweight, compact and very affordable, this is a 60 GHz device like no other before.
Specification
- Product code RBLHG-60ad
- Suggested price $99.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Dimensions Ø 391 x 222 mm
- RouterOS license 3
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 50°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 4 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 12-30 V
- 10/100 Ethernet ports 1
- Certification CE, FCC, IC, EAC, ROHS
- IP IP54
| RBLHG-60ad | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
