MikroTik Routers and Wireless - Products: LHG XL 5 ax

Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.

The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!

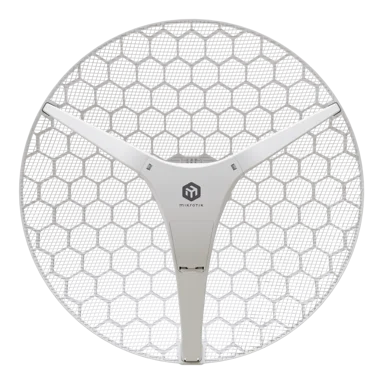

LHG XL 5 ax is an extra large long-range CPE with a 27 dBi antenna. Perfect for links up to 30 km in ideal conditions. Check related devices below for the regular version if you're working at a closer range!

Specifications

Details
Product code	LHG-5axD-XL
Architecture	ARM 64bit
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	3
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 70°C
Suggested price	$119.00

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	27
Wireless 5 GHz chip model	QCN-6102
Wireless 5 GHz generation	Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports	1

Other

Details
CPU temperature monitor	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	54

Included parts

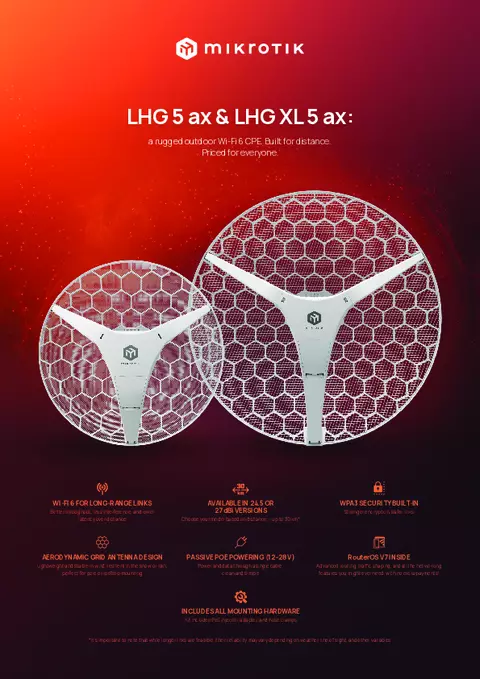

BrochureOpen

RouterOS current release

Download

FCC Grant of Certification (5GHz)Open

Block DiagramOpen

Safety and regulatory informationOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

LHG-5axD-XL		IPQ-5010 one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.1	984.6	233.3	955.6	689.2	374.9
Bridging	25 bridge filter rules	81.1	984.6	201.6	825.6	204.8	111.4
Routing	none (fast path)	81.3	987.4	219.1	897.3	398	216.5
Routing	25 simple queues	81.3	987.4	178.6	731.4	181	98.5
Routing	25 ip filter rules	81.3	987.4	123.4	505.5	122.6	66.7

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
