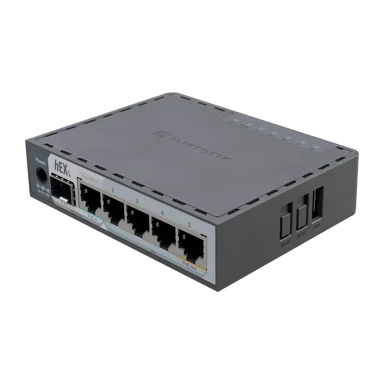

MikroTik Routers and Wireless - Products: hEX S (2025)

Need a wired router that won’t slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything — and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

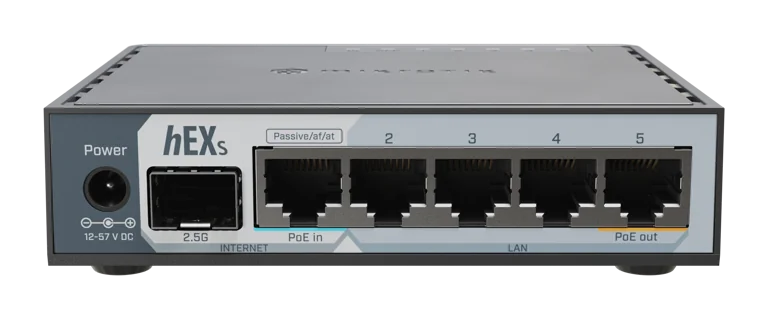

With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge — full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more — so you can build the wired network you’ve always wanted.

Specifications

Details
Product code	E60iUGS
Architecture	ARM
CPU	EN7562CT
CPU core count	2
CPU nominal frequency	950 MHz
Switch chip model	EN7562CT
RouterOS license	4
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	$69.00

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	23 W
Max power consumption without attachments	5 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	18-57 V

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE up to 57V

Ethernet

Details
10/100/1000 Ethernet ports	5
Number of 1G Ethernet ports with PoE-out	1

Fiber

Details
SFP ports	1 (2.5G supported)

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Included parts

24V 1.2A power adapter

BrochureOpen

RouterOS current releaseDownload

Safety and regulatory informationOpen

Block DiagramOpen

SFP compatibility listOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

E60iUGS		EN7562CT 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	340.3	4132.4	389	1593.5	402.6	219
Bridging	25 bridge filter rules	190.6	2315.1	197	806.8	193.9	105.5
Routing	none (fast path)	300.3	3646.6	340.5	1394.7	342.2	186.1
Routing	25 simple queues	173.1	2102.6	174.3	713.8	171.9	93.5
Routing	25 ip filter rules	117.8	1430.3	121.6	498.1	117	63.6

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

E60iUGS		EN7562CT IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	31.4	351.7	34.8	142.5	37.2	20.2
256 tunnels	AES-128-CBC + SHA1	16.8	188.2	17.6	72.1	18.5	10.1
256 tunnels	AES-128-CBC + SHA256	16.9	189.3	17.9	73.3	18.7	10.2
256 tunnels	AES-256-CBC + SHA1	16.8	188.2	17.6	72.1	18.7	10.2
256 tunnels	AES-256-CBC + SHA256	16.9	189.3	17.9	73.3	18.9	10.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
