New

CRS418-8P-8G-2S+5axQ2axQ-RM

The Wi-Fi version of CRS418... with our strongest 4x4 MIMO Wi-Fi 6! L3 HW offloading, quad-core 2.2 GHz ARM CPU, 16x Gigabit Ethernet ports + a Gigabit management port with a direct CPU line, 2x 10G SFP+ ports, PoE-out.

Specification Find retailer

4x4 MIMO

L3 HW Offloading

Mighty Quad-core 2.2 GHz ARM CPU

Dual-redundant power supplies

1 GB RAM

USB 3

Dual-band Wi-Fi 6

16x Gigabit Ethernet ports

PoE-out

2x 10G SFP+ ports

More than a switch!

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading... in a single 1U device and for the best price on the market?

16 x Gbit, 2x 10G SFP+ and more

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity. Also, there’s a Gigabit management port with a direct CPU line.

Quad-core CPU

Powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!

Why CRS418?

It is perfect for hybrid Layer 2/3 environments – whether you’re segmenting your network with VLANs or routing between them. Here’s why:

Powerful enough to replace most small/medium office routers

Thanks to its 2.2 GHz quad-core ARM CPU, L3 hardware offloading, and RouterOS v7, you can use it as an internet gateway, firewall, and even a CAPsMAN controller.

2x 10G SFP+ cages

Connect to media servers, fast ISP fiber networks, core switches, or high-speed storage.

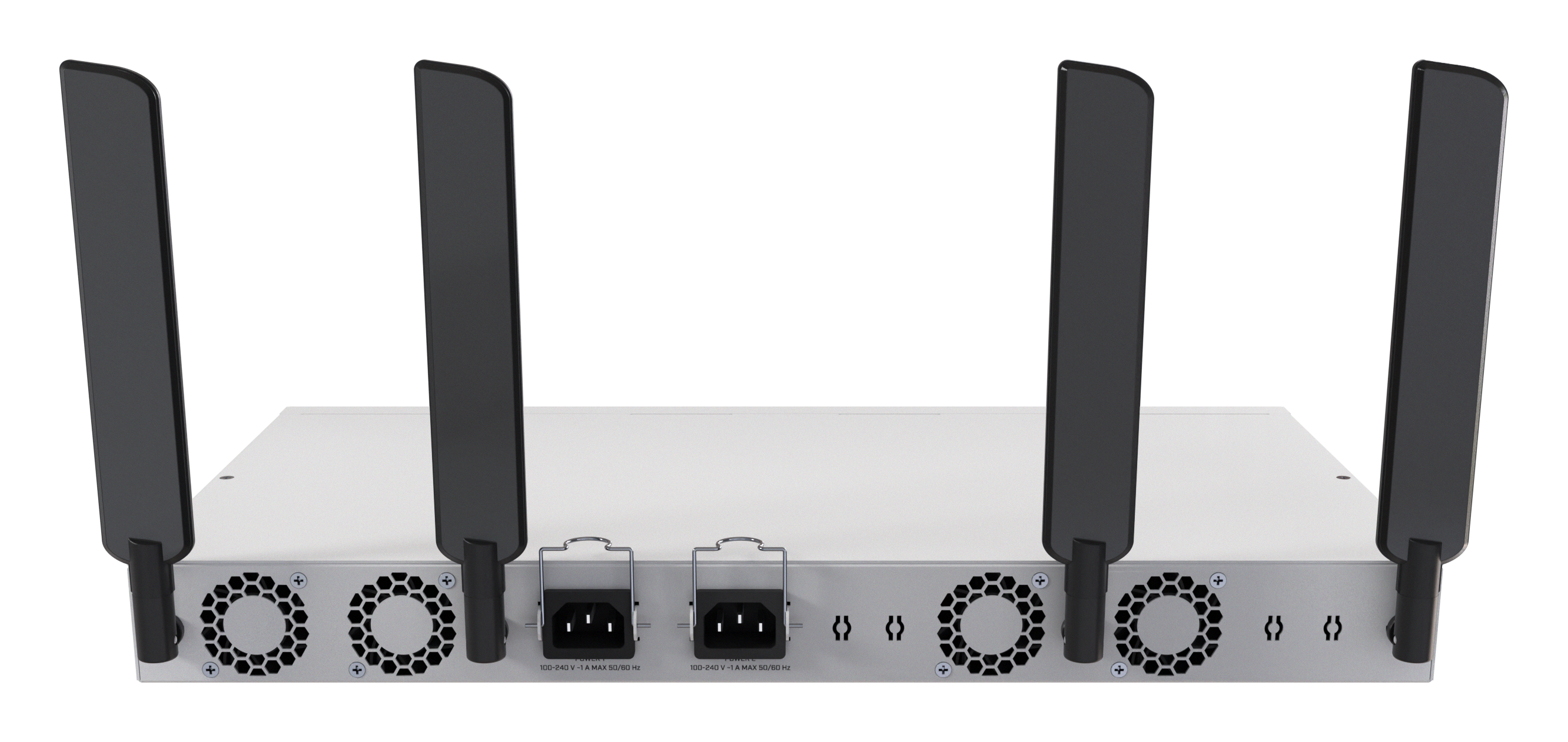

1U rackmount case with redundant power inputs

Space-saving and secure with dual AC inputs for extra peace of mind.

8x PoE-out ports (802.3af/at and 24V Passive PoE-out)

Power your devices directly from the switch with up to 150 W total output

USB 3 for extra storage or configuration tools

Perfect for backups, logs, databases, or pushing large files around your organization.

17 Gigabit Ethernet ports

Organize all your gear with a mix of PoE and standard Gigabit ports in one rack-mountable unit. Having a nice, clean server room is easy – if you have the right tools.

RouterOS v7

Use all the advanced switching and routing features MikroTik is known for. No subscriptions, no paywalls, the only limit is your imagination. VLANs, ACLs, SNMP, advanced monitoring & traffic shaping, and so much more!

It’s a real multi-tasking champion that keeps your network lean and your server room clean.

Wi-Fi where it matters

The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget – now you don’t need to carry a separate access point!

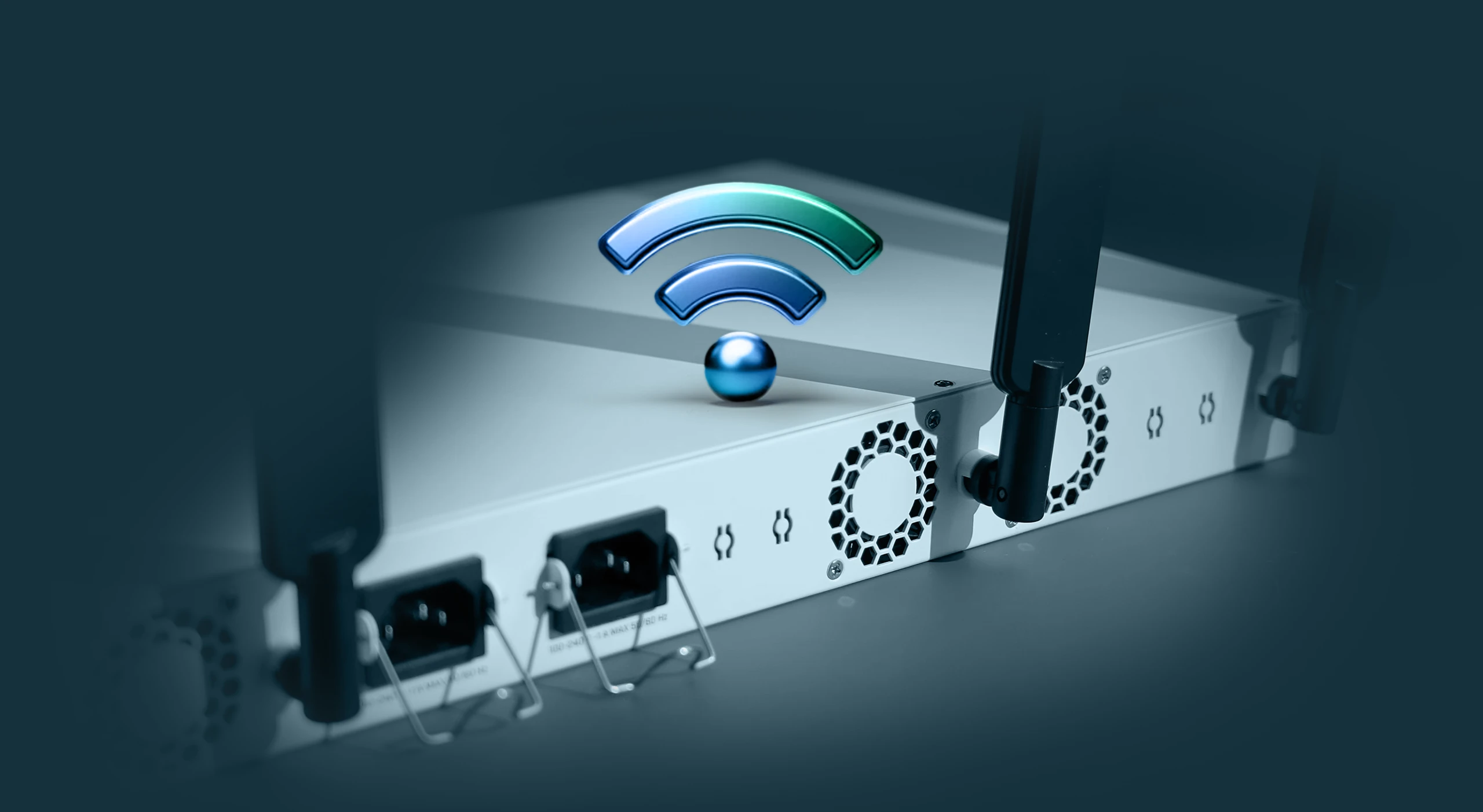

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.

CRS418-8P-8G-2S+5axQ2axQ-RM

Specification

Specifications

Product code CRS418-8P-8G-2S+5axQ2axQ-RM
Suggested price $499.00
Architecture ARM 64bit
CPU IPQ-8072A
CPU core count 4
CPU nominal frequency 2208 MHz
CPU Threads count 4
Switch chip model 98DX226S
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 70°C

Powering

Number of AC inputs 2
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 227 W
Max power consumption without attachments 43 W
Cooling type 4 fans

PoE-out

PoE-out ports Ether9-Ether16
PoE out 802.3af/at
Low voltage PoE-Out current limit 1.1 A
High voltage PoE-Out current limit 0.56 A
Total output power 150

Wireless specifications

Wireless 2.4 GHz Max data rate 1148 Mbit/s
Wireless 2.4 GHz Number of chains 4
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 5
Wireless 2.4 GHz chip model QCN-5024
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz Number of chains 4
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5054
Wireless 5 GHz generation Wi-Fi 6

Ethernet

10/100/1000 Ethernet ports 17
Number of 1G Ethernet ports with PoE-out 8

Fiber

SFP+ ports 2

Peripherals

Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1

Other

CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS
IP 20

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

CRS418-8P-8G-2S+5axQ2axQ-RM
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	3,007.2	36,518.9	8,693.6	35,609.0	55,059.5	28,190.5
Switching	Non blocking Layer 2 capacity	3,007.2	73,037.7	8,693.6	71,218.0	55,059.5	56,381.0
Switching	Non blocking Layer 1 throughput	3,007.2	37,000.0	8,693.6	37,000.0	55,059.5	37,000.0
Switching	Non blocking Layer 1 capacity	3,007.2	74,000.0	8,693.6	74,000.0	55,059.5	74,000.0

CRS418-8P-8G-2S+5axQ2axQ-RM		IPQ-8072A All port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	406.4	4934.8	1136.6	4655.5	1253.3	681.8
Bridging	25 bridge filter rules	389.9	4735.4	403.5	1652.7	413.6	225
Routing	none (fast path)	406.4	4934.8	850.6	3484	891.2	484.8
Routing	25 simple queues	374.2	4544.5	389	1593.5	391.6	213
Routing	25 ip filter rules	269.9	3277.9	277.5	1136.7	276.3	150.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

CRS418-8P-8G-2S+5axQ2axQ-RM		IPQ-8072A IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	109.2	1223.0	124.6	510.4	137.9	75.0
256 tunnels	AES-128-CBC + SHA1	54.9	614.9	59.1	242.1	62.3	33.9
256 tunnels	AES-128-CBC + SHA256	54.1	605.9	58.4	239.2	61.2	33.3
256 tunnels	AES-256-CBC + SHA1	53.1	594.7	57.2	234.3	60.7	33.0
256 tunnels	AES-256-CBC + SHA256	53.9	603.7	58.6	240.0	61.2	33.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
