MikroTik Routers and Wireless - Products: CRS418-8P-8G-2S+RM

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading… in a single 1U device and for the best price on the market?

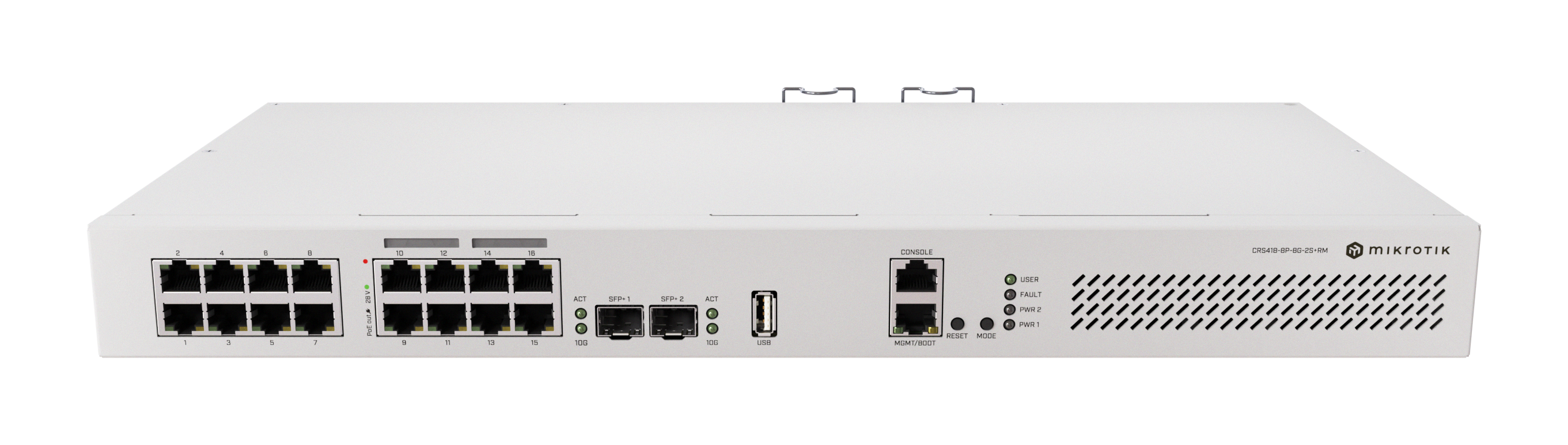

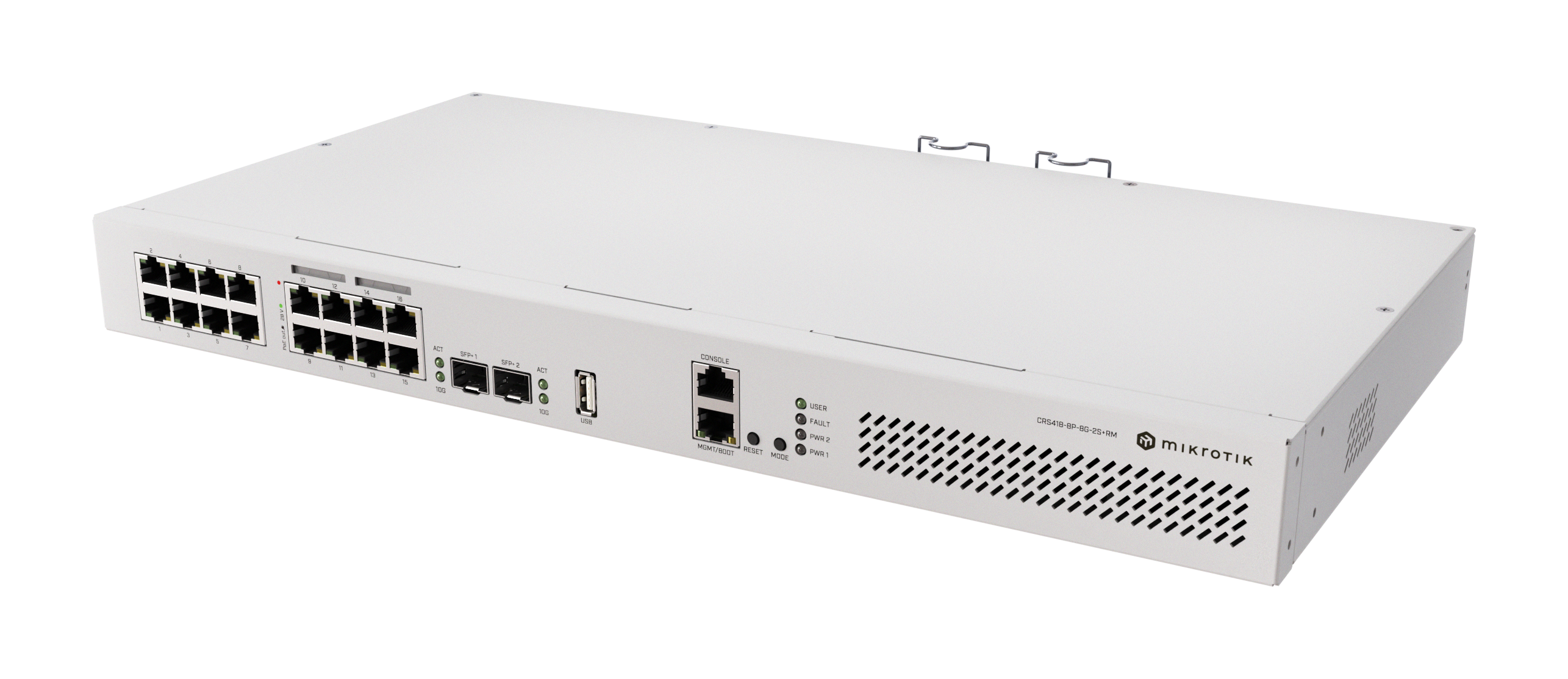

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there’s a Gigabit management port with a direct CPU line.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!

CRS418-8P-8G-2S+RM is more than a switch. It’s a real multi-tasking champion that keeps your network lean and your server room clean.

Specifications

Details
Product code	CRS418-8P-8G-2S+RM
Architecture	ARM 64bit
CPU	IPQ-8072
CPU core count	4
CPU nominal frequency	2208 MHz
Switch chip model	98DX226S
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	$449.00

Powering

Details

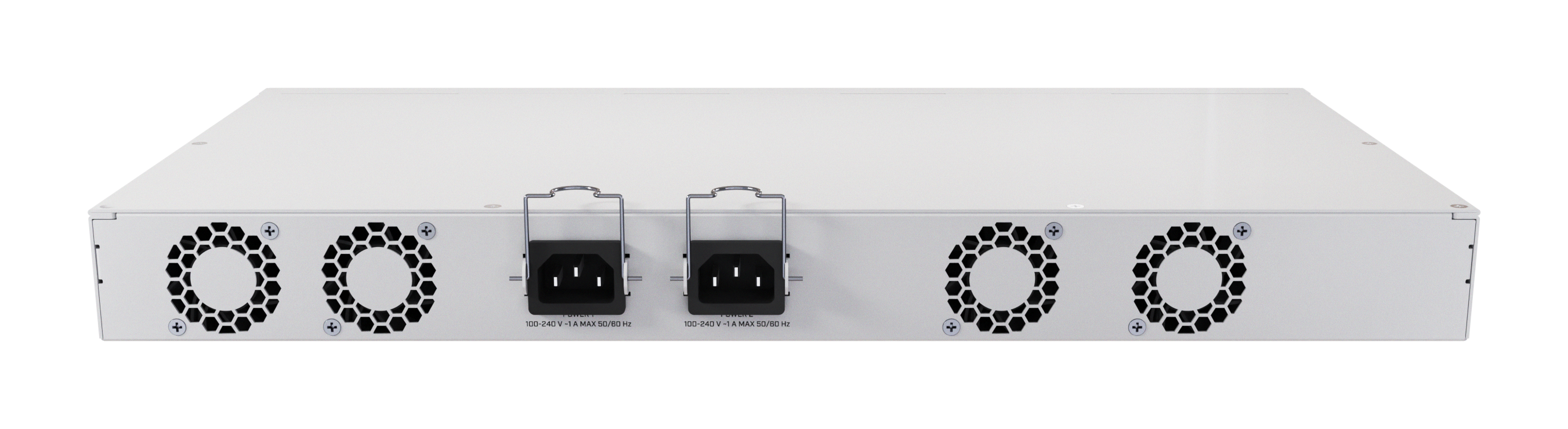

Number of AC inputs	2
AC input range	100-240
Number of PSU slots	2
Frequency (Hz)	50-60
Max power consumption	215 W
Max power consumption without attachments	28 W
Cooling type	4 fans

PoE-out

Details
PoE-out ports	Ether9 - Ether16
PoE out	802.3af/at
Low voltage PoE-Out current limit	1.1 A
High voltage PoE-Out current limit	0.56 A
Max total out (A)	5.4 A
Total output current	5.4
Total output power	150

Ethernet

Details
10/100/1000 Ethernet ports	17
Number of 1G Ethernet ports with PoE-out	8

Fiber

Details
SFP+ ports	2

Peripherals

Details
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1

Other

Details
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Included parts

BrochureOpen

User manualOpen

RouterOS current releaseDownload

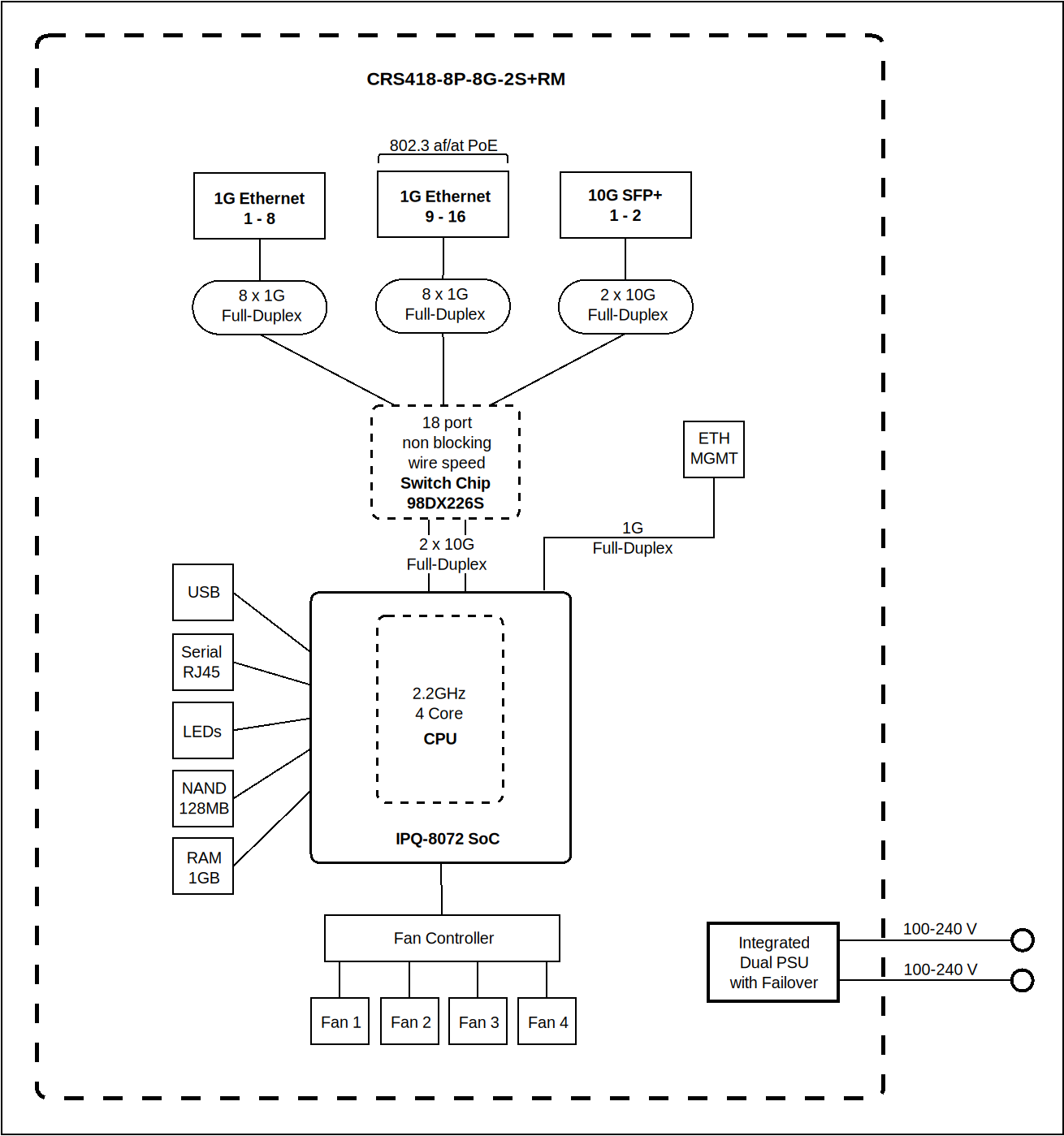

Block DiagramOpen

Safety and regulatory informationOpen

SFP compatibility listOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Switching results

CRS418-8P-8G-2S+RM
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	3,007.2	36,518.9	8,693.6	35,609.0	55,059.5	28,190.5
Switching	Non blocking Layer 2 capacity	3,007.2	73,037.7	8,693.6	71,218.0	55,059.5	56,381.0
Switching	Non blocking Layer 1 throughput	3,007.2	37,000.0	8,693.6	37,000.0	55,059.5	37,000.0
Switching	Non blocking Layer 1 capacity	3,007.2	74,000.0	8,693.6	74,000.0	55,059.5	74,000.0

Ethernet test results

CRS418-8P-8G-2S+RM		IPQ-8072A All port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	406.4	4934.8	1136.6	4655.5	1253.3	681.8
Bridging	25 bridge filter rules	389.9	4735.4	403.5	1652.7	413.6	225
Routing	none (fast path)	406.4	4934.8	850.6	3484	891.2	484.8
Routing	25 simple queues	374.2	4544.5	389	1593.5	391.6	213
Routing	25 ip filter rules	269.9	3277.9	277.5	1136.7	276.3	150.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

CRS418-8P-8G-2S+RM		IPQ-8072A IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	109.2	1223.0	124.6	510.4	137.9	75.0
256 tunnels	AES-128-CBC + SHA1	54.9	614.9	59.1	242.1	62.3	33.9
256 tunnels	AES-128-CBC + SHA256	54.1	605.9	58.4	239.2	61.2	33.3
256 tunnels	AES-256-CBC + SHA1	53.1	594.7	57.2	234.3	60.7	33.0
256 tunnels	AES-256-CBC + SHA256	53.9	603.7	58.6	240.0	61.2	33.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
