CRS304-4XG-IN
Compact, powerful, and ready to simplify your 10 Gigabit network setups with 4x10G Ethernet ports ready to use out-of-the-box. No extra modules needed!
Introducing the CRS304-4XG-IN – a compact yet highly capable 10 Gigabit Ethernet switch designed to simplify your network setup routine. Unlike typical 10 Gigabit products, the new CRS304 is equipped with four ready-to-use 10 Gigabit Ethernet ports straight out of the box. That’s right – you don’t need any extra SFP modules, just pure plug-and-play! Also, there is an additional Gigabit Ethernet port – for management purposes.
Innovative Design Meets Silent Operation

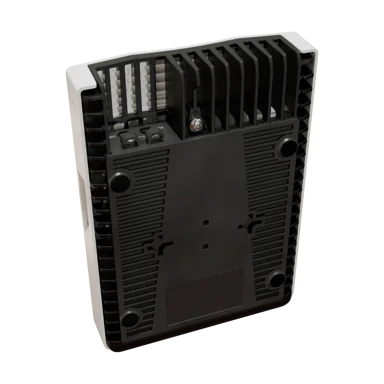

The CRS304 features an enclosure that doubles as a robust, lightweight heat sink, eliminating the need for active cooling. This fanless design ensures silent operation, making it ideal for any environment where noise is a concern – offices, libraries, or even your bedroom homelab! The sturdy form-factor provides a premium feel, balancing comfortable weight and durability, all at an accessible price point.
Versatile Mounting Options
This switch includes a convenient DIN rail mount on the side and standard screw attachment points on the back, allowing for seamless integration literally anywhere. Furthermore, the side DIN rail mount can be moved to the back of the switch.
Multiple Powering Options for Ultimate Reliability
Power redundancy is a key feature of the CRS304. It offers four different power input options: two DC jacks, a 2-pin terminal, and PoE-in. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation.
Small Frame, Big Game
Powered by a dual-core ARM CPU and the mighty Marvell Prestera switch chip, the CRS304 delivers exceptional performance for its tiny size. Port-to-port forwarding, broadcast storm control, MAC filtering, VLANs, traffic mirroring, bandwidth limitations, and even some Layer 3 hardware offloading – not a problem for the CRS304-4XG-IN!
Your Backpack Server Room
The CRS304’s small form factor and enhanced durability make it an ideal choice for both stationary and mobile applications. Place it on your desk or keep it in your backpack for on-the-go networking – this is a must-have switch for any network administrator.
Specification
- Product code CRS304-4XG-IN
- Suggested price $199.00
- Architecture ARM 64bit
- CPU 98DX2528
- CPU core count 2
- CPU nominal frequency 1200 MHz
- CPU Threads count 2
- Switch chip model 98DX2528
- RouterOS license 5
- Operating System RouterOS v7
- Size of RAM 512 MB
- Storage size 32 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 4 (DC jack, PoE-IN, 2-pin terminal)
- DC jack input Voltage 12-57 V / 12-57 V
- 2-pin terminal input Voltage 12-57 V
- Max power consumption 21 W
- Max power consumption without attachments 15 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 36-57 V
- 10/100/1000 Ethernet ports 1
- Number of 1G/2.5G/5G/10G Ethernet ports 4
- Certification CE, EAC, ROHS
- IP 20
| CRS304-4XG-IN | CRS304-4XG all port switching results | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 3251 | 39,480.1 | 9,398.5 | 38,496.3 | 59,523.8 | 30,476.2 |
| Switching | Non blocking Layer 2 capacity | 3251 | 78,960.2 | 9,398.5 | 76,992.6 | 59,523.8 | 60,952.4 |
| Switching | Non blocking Layer 1 throughput | 3251 | 40,000.0 | 9,398.5 | 40,000.0 | 59,523.8 | 40,000.0 |
| Switching | Non blocking Layer 1 capacity | 3251 | 80,000.0 | 9,398.5 | 80,000.0 | 59,523.8 | 80,000.0 |
| CRS304-4XG-IN | 98DX2528 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 164.7 | 2000.3 | 431.1 | 1765.7 | 997.1 | 542.4 |
| Bridging | 25 bridge filter rules | 163.8 | 1989.8 | 236.8 | 969.9 | 248.6 | 135.2 |
| Routing | none (fast path) | 165.7 | 2012.6 | 431.6 | 1767.7 | 754.4 | 410.4 |
| Routing | 25 simple queues | 164 | 1992 | 246.7 | 1010.5 | 248.6 | 135.2 |
| Routing | 25 ip filter rules | 129.7 | 1575.5 | 131.2 | 537.5 | 130 | 70.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
