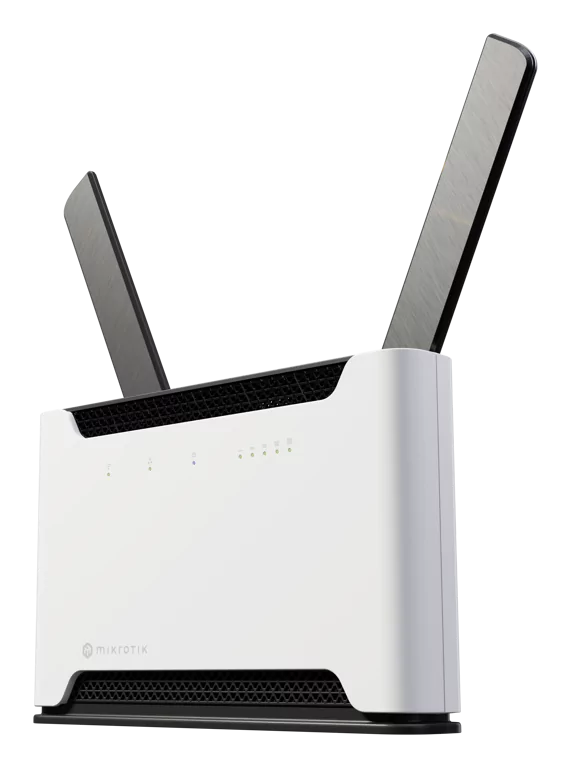

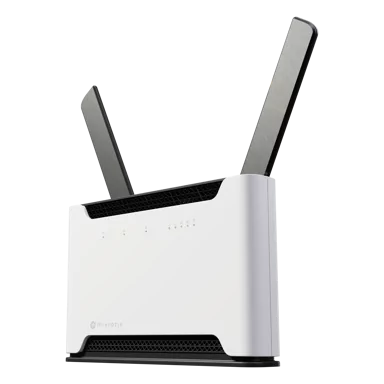

Chateau LTE7 ax
Your favorite high-performance home andoffice LTE router just got a major upgrade. Chateau LTE7 ax keeps the same powerful hardware, sleek design, and Wi-Fi 6 performance – but now features an LTE Category 7 modem, expanded frequency support, and a significantly lower price than the previous LTE6 ax version.
Are you tired of those suspicious, low-quality default routers from your service providers? So many households are switching to mobile internet, but those default routers can really ruin the experience. That’s why we decided to take everything we’ve learned over the last 20 years of networking excellence and create a single device that will make most households happy: the MikroTik Chateau.
Why upgrade to CAT7?
• Twice the upload speed (Depending on the LTE tower infrastructure and other variables)
• Expanded frequency support, including Band 28 (700 MHz) & Band 32 (1500 MHz) for better performance in congested areas
• Carrier aggregation (2×CA) for higher efficiency and responsiveness in busy networks
• Same trusted design – no changes to installation or configuration
• Lower cost – better connectivity that actually costs less, especially on volume orders
A powerful LTE router for demanding networks
Chateau LTE7 ax combines the new R11e-LTE7 modem with a quad-core ARM CPU, 1GB of RAM, Wi-Fi 6(802.11ax) dual-band wireless, and a 2.5 Gigabit Ethernet port for ultra-fast local connections. Run multiplesecure VPN tunnels, advanced firewall rules, advanced container setups, or complex routing scenarios– all while enjoying faster and more reliable mobile connectivity. Whether LTE is your primary connectionor a rock-solid backup to fiber, Chateau LTE7 ax adapts to your setup effortlessly… and in style!
Perfect for home offices, businesses, and ISPs

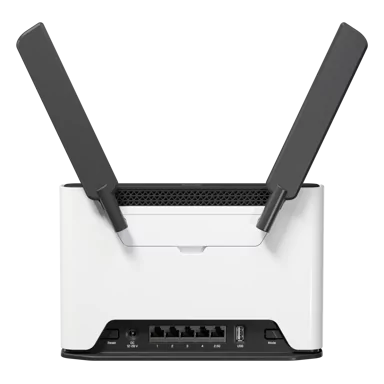

With five Ethernet ports (including a 2.5G port!), 2×2 MIMO LTE and full RouterOS v7 functionality, Chateau LTE7 ax fits a wide range of use cases:
• Secure home offices and remote work
• Small and medium-sized businesses
• LTE-based or hybrid ISP deployments
• Households that want performance and clean design
It’s equally comfortable in the hands of seasoned system administrators who need true flexibility – or users who just want to plug it in and forget it’s there.
Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill.
Specification
- Product code S53UG+5HaxD2HaxD-TC&R11e-LTE7
- Suggested price $169.00
- Architecture ARM 64bit
- CPU IPQ-6010
- CPU core count 4
- CPU nominal frequency auto MHz
- CPU Threads count 4
- Switch chip model IPQ-6010
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 1 GB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 1 (DC jack)
- DC jack input Voltage 12-28 V
- Max power consumption 21.5 W
- Max power consumption without attachments 15.5 W
- Cooling type Passive
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
-
3G bands
1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)
3 (1800 MHz)
- LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL 2x2
- MIMO UL 1x1
-
LTE FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
-
LTE TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC 35312597
- Wireless 2.4 GHz Max data rate 574 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz 3
- Wireless 2.4 GHz chip model QCN-5022
- Wireless 2.4 GHz generation Wi-Fi 6
- Wireless 5 GHz Max data rate 1200 Mbit/s
- Wireless 5 GHz Number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz 6
- Wireless 5 GHz chip model QCN-5052
- Wireless 5 GHz generation Wi-Fi 6
- 10/100/1000 Ethernet ports 4
- Number of 2.5G Ethernet ports 1
- Number of SIM slots 1 Modem (Micro SIM)
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- CPU temperature monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Mode button Yes
- Certification CE, EAC, ROHS
- IP 20
| S53UG+5HaxD2HaxD-TC&R11e-LTE7 | IPQ-6010 All port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 219.2 | 2662 | 593.5 | 2430.9 | 1509.2 | 821 |
| Bridging | 25 bridge filter rules | 218.1 | 2649.1 | 460.3 | 1885.3 | 468.5 | 254.9 |
| Routing | none (fast path) | 218.9 | 2657.8 | 596.6 | 2443.6 | 1228.3 | 668.2 |
| Routing | 25 simple queues | 218.5 | 2653.5 | 463.4 | 1898 | 468.5 | 254.9 |
| Routing | 25 ip filter rules | 215.3 | 2614.4 | 279.6 | 1145.2 | 281.8 | 153.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| S53UG+5HaxD2HaxD-TC&R11e-LTE7 | IPQ-6010 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 78.4 | 878.1 | 91.9 | 376.4 | 93.6 | 47.9 |
| 256 tunnels | AES-128-CBC + SHA1 | 50.1 | 561.1 | 55.5 | 227.3 | 58.6 | 30 |
| 256 tunnels | AES-128-CBC + SHA256 | 50 | 560 | 55.4 | 226.9 | 58.6 | 30 |
| 256 tunnels | AES-256-CBC + SHA1 | 49.4 | 553.3 | 54.8 | 224.5 | 58.6 | 30 |
| 256 tunnels | AES-256-CBC + SHA256 | 49.4 | 553.3 | 55 | 225.3 | 58.6 | 30 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
