    GrooveA 52 2.4GHz/5GHz AP/Backbone/CPE, N-male connector, includes 2.4GHz/5GHz 6dBi Omni Antenna

    Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA has also supports AP mode.

    With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

    NEW- now comes packaged with a Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz)!

    Box contains: Groove unit, mounting loops, PoE injector, power adapter, Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz).

    We have two versions available.

    - RBGrooveA-52HPn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RBGrooveA-52HPn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBGrooveA-52HPn
    Architecture MIPSBE
    CPU AR9342
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 177x44x44mm, 193g
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $79.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 6 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 9-30 V

    Wireless specifications

    Details
    Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s
    Wireless 2.4 GHz/5 GHz number of chains 1
    Wireless 2.4 GHz/5 GHz standards 802.11b/g/n, 802.11a/n
    Antenna gain dBi for 2.4 GHz/5 GHz 6
    Wireless 2.4 GHz/5 GHz chip model AR9342
    Wireless 2.4 GHz/5 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s27-97
    11MBit/s27-91
    6MBit/s27-93
    54MBit/s24-75
    MCS027-93
    MCS723-70
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s27-93
    54MBit/s23-75
    MCS026-93
    MCS722-70

    Included parts

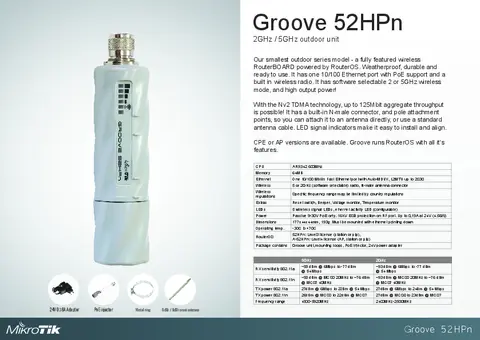

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterBoot firmware Download
    Mounting dimensionsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open

    High resolution images

    Ethernet test results

    RBGrooveA-52HPnr2AR9342 100M 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3148.075.8
    Bridging25 bridge filter rules8.198.423.596.387.644.9
    Routingnone (fast path)8.198.423.596.3148.075.8
    Routing25 simple queues8.198.423.596.3106.654.6
    Routing25 ip filter rules8.198.423.596.360.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
