    wsAP ac lite In-wall Dual Concurrent 2.4GHz / 5GHz wireless access point with three Ethernet ports and telephone jack pass through for hospitality networks

    Discontinued


    The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.

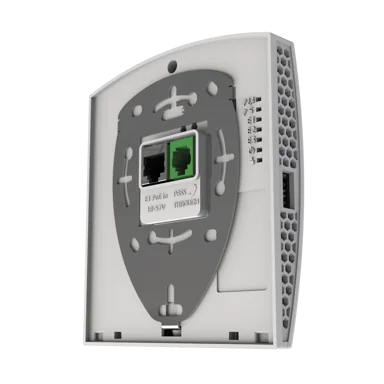

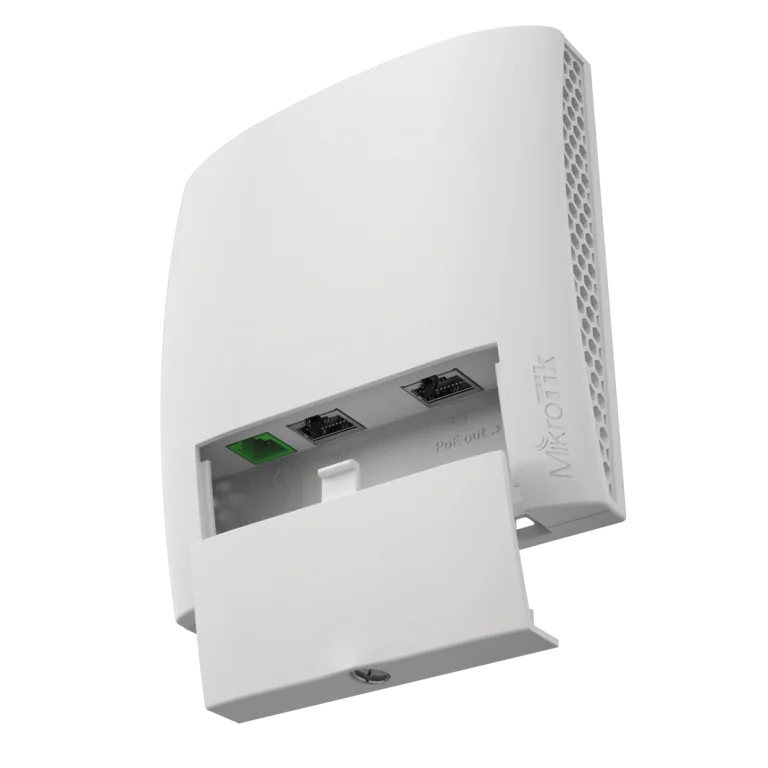

    The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.

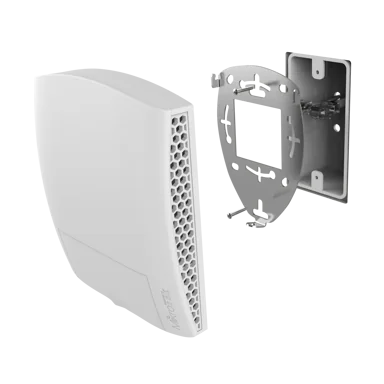

    The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management. As a separate accessory you can order a special screw set (product code K50), that ensures the bottom door can only be opened by the owner. Mounting bracket fits US and EU most popular telecomunication sockets.

    We have two versions available.

    - wsAP ac lite-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - wsAP ac lite (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBwsAP-5Hac2nD
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model QCA9531
    Dimensions 112 x 126 x 30 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $59.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 1.5
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 433 Mbit/s
    Wireless 5 GHz number of chains 1
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 3
    Wireless 5 GHz chip model QCA-9887
    Wireless 5 GHz generation Wi-Fi 5
    WiFi speed AC750

    Ethernet

    Details
    10/100 Ethernet ports 3

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 0.5

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 20 W
    Max power consumption without attachments 6 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    PoE-out

    Details
    PoE-out ports Ether3
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 420 mA
    Max out per port output (input 30-57 V) 420 mA
    Max total out (A) 420 mA

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP20

    Other

    Details
    Mode button Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s23-93
    54MBit/s20-75
    MCS023-93
    MCS719-71
    MCS916-63

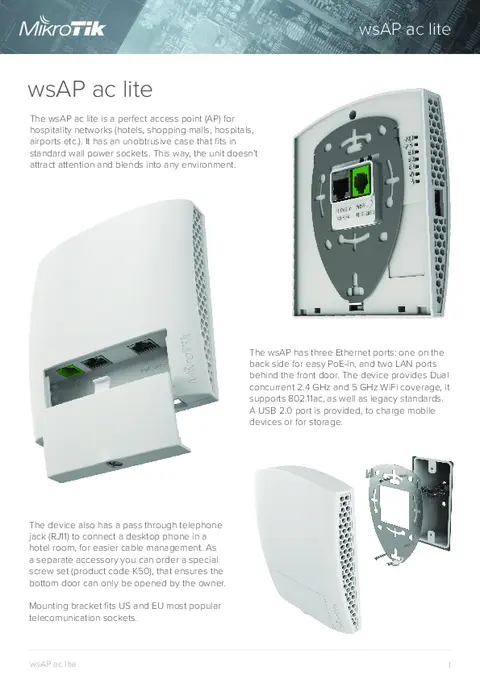

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    MountingOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open

    High resolution images

    Ethernet test results

    RBwsAP-5Hac2nDQCA9531 100M three port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)24.4296.370.5288.8387.8198.6
    Bridging25 bridge filter rules24.4296.370.5288.886.544.3
    Routingnone (fast path)24.4296.370.5288.8220.4112.8
    Routing25 simple queues24.4296.370.5288.8130.766.9
    Routing25 ip filter rules24.4296.357.7236.358.830.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
