wAP ac LTE kit
A refresh of the classic dual-band wAP LTE kit with Gigabit Ethernet – this time with a brand new LTE modem that brings the PRICE DOWN and the performance UP!
wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a serious price drop!

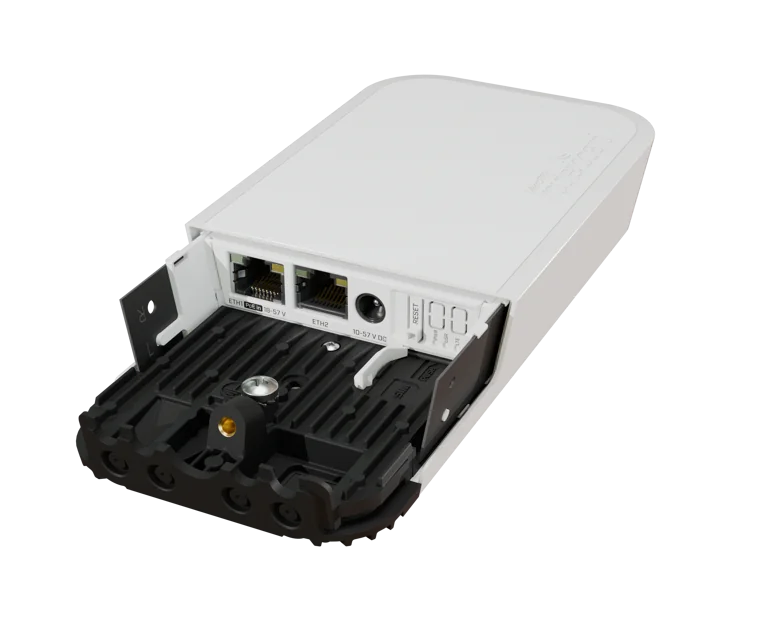

wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.
There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
Specification
- Product code wAPGR-5HacD2HnD&EC200A-EU
- Suggested price $169.00
- Architecture ARM 32bit
- CPU IPQ-4018
- CPU core count 4
- CPU nominal frequency 488-896 (auto) MHz
- CPU Threads count 4
- Switch chip model IPQ-4018
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -30°C to 60°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 10-57 V
- Max power consumption 12 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 18-57 V
- 2G Category Class12
-
2G bands
8 (900MHz)
3 (1800MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
-
3G bands
5 (850MHz)
8 (900MHz)
1 (2100MHz)
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
-
LTE FDD bands
20 (800MHz)
3 (1800MHz)
1 (2100MHz)
7 (2600MHz)
8 (900 MHz)
5 (850MHz)
28 (700MHz)
-
LTE TDD bands
40 (2300MHz)
38 (2600MHz)
41n (2500MHz)
- TAC 86314105
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model IPQ-4018
- Wireless 2.4 GHz generation Wi-Fi 4
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz Number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 2.5
- Wireless 5 GHz chip model IPQ-4018
- Wireless 5 GHz generation Wi-Fi 5
- 10/100/1000 Ethernet ports 2
- Number of SIM slots 1 Modem (Micro SIM)
- MiniPCI-e slots 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, E-MARK, EAC, ROHS
- IP 54
| wAPGR-5HacD2HnD&EC200A-EUr3 | IPQ-4018 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1484.8 | 760.2 |
| Bridging | 25 bridge filter rules | 162.1 | 1968.5 | 352.9 | 1445.5 | 359.2 | 183.9 |
| Routing | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1488 | 761.9 |
| Routing | 25 simple queues | 162.5 | 1973.4 | 469.9 | 1924.7 | 506.3 | 259.2 |
| Routing | 25 ip filter rules | 162.2 | 1969.8 | 240.8 | 986.3 | 242.9 | 124.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| wAPGR-5HacD2HnD&EC200A-EUr3 | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
