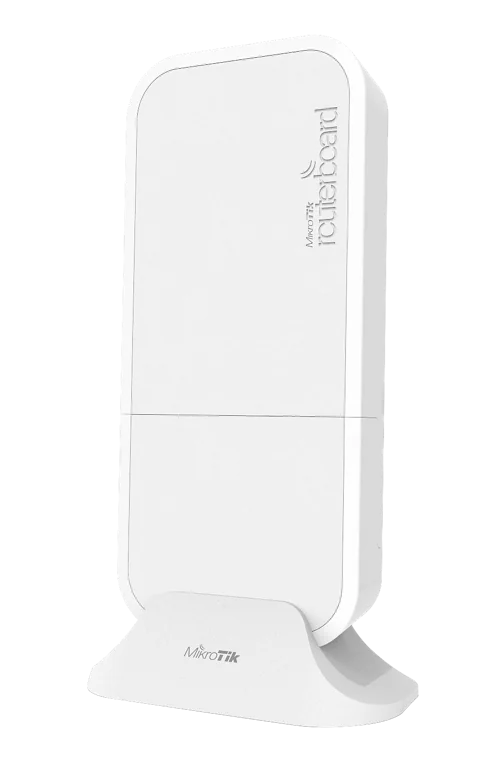

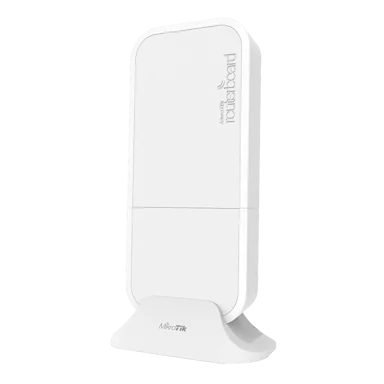

    wAP ac 4G kit Small weatherproof Dual Band 2.4 / 5 GHz wireless access point with LTE antennas and modem for International bands 3, 7, 20, 31, 41n, 42 and 43

    Discontinued


    A small package with a huge ambition – the wAP ac 4G is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can also enjoy wireless experience anywhere – indoors or outdoors. wAP ac 4G is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C‎° to +60 C‎ and can be easily mounted on walls, ceilings or poles.

    Don’t be fooled by the compact size – this device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

    RBwAPGR-5HacD2HnD&R11e-4G includes LTE modem that supports International LTE bands FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

    High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac 4G will meet most demands without making sacrifices.

     Send purchase questions

    Specifications

    Details
    Product code RBwAPGR-5HacD2HnD&R11e-4G
    Architecture ARM 32bit
    CPU IPQ-4018
    CPU core count 4
    CPU nominal frequency 716 MHz
    Switch chip model IPQ-4018
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -30°C to 60°C
    IPsec hardware acceleration Yes
    Suggested price $169.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 10-57 V
    Max power consumption 14 W
    Max power consumption without attachments 10 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 18-57 V

    Mobile

    Details
    LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands 3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz)
    LTE TDD bands 41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
    TAC 35914709

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2.5
    Wireless 2.4 GHz chip model IPQ-4018
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 2.5
    Wireless 5 GHz chip model IPQ-4018
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 2

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    MiniPCI-e slots 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-100
    11MBit/s25-94
    6MBit/s25-96
    54MBit/s19-78
    MCS025-96
    MCS718-73
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s24-96
    54MBit/s20-80
    MCS024-96
    MCS719-75
    MCS917-70

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Mounting dimensionsOpen
    FCC Grant of Certification (LTE)Open
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open

    High resolution images

    #
    #

    Ethernet test results

    RBwAPGR-5HacD2HnD&R11e-4Gr2IPQ-4018 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162.51973.4469.91924.71484.8760.2
    Bridging25 bridge filter rules162.11968.5352.91445.5359.2183.9
    Routingnone (fast path)162.51973.4469.91924.71488761.9
    Routing25 simple queues162.51973.4469.91924.7506.3259.2
    Routing25 ip filter rules162.21969.8240.8986.3242.9124.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RBwAPGR-5HacD2HnD&R11e-4Gr2IPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
