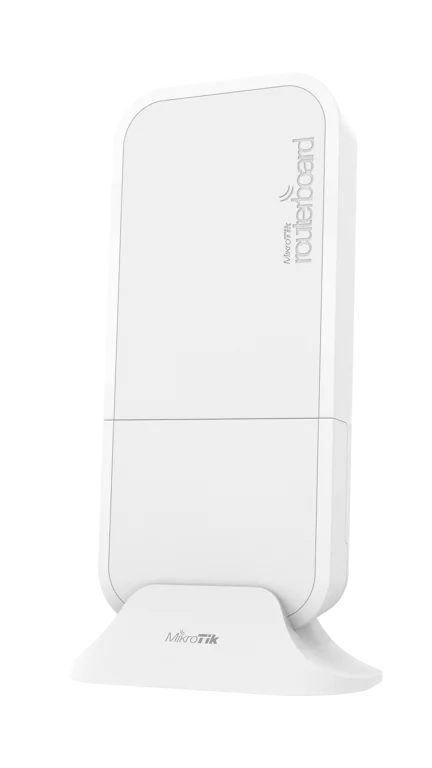

wAP 4G kit
Small weatherproof wireless access point with LTE modem for bands 3, 7, 20, 31, 41n, 42 and 43
The wAP 4G kit s a small weatherproof wireless access point with a built in cellular modem that supports 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
RBwAPR-2nD&R11e-4G includes LTE modem that supports LTE bands FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
Specification
- Product code RBwAPR-2nD&R11e-4G
- Suggested price $129.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Dimensions 185 x 85 x 30 mm
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage 9-30 V
- Automotive input Voltage 9-30 V
- Max power consumption 8 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 9-30 V
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
-
LTE FDD bands
3 (1800MHz)
7 (2600MHz)
20 (800MHz)
31 (450MHz)
-
LTE TDD bands
41n (2500MHz)
42 (3500MHz)
43 (3700MHz)
- TAC 35914709
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2
- Wireless 2.4 GHz chip model QCA9531
- Wireless 2.4 GHz generation Wi-Fi 4
- 10/100 Ethernet ports 1
- Number of SIM slots 1 Modem (Mini SIM)
- MiniPCI-e slots 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, FCC, IC, E-MARK, EAC, ROHS
- IP IP54
| RBwAPR-2nD&R11e-4G | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
