SXTsq Lite60

For use as 60GHz CPE in Point -to-Multipoint setups for connections up to 200m with wAP 60G AP, low cost version

IP 54

Outdoors

PoE

Specification Find retailer

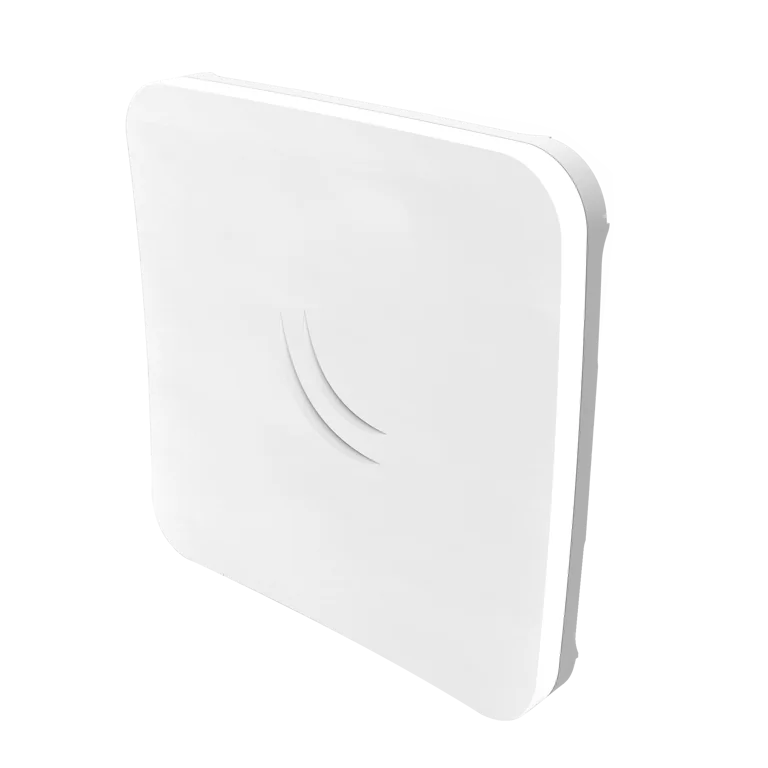

SXTsq Lite60

The SXTsq Lite60 is a new model in our 60 GHz lineup. This is a low cost CPE unit for connecting to a 60 GHz AP, enabling you to build a cost effective point to multipoint setup in the clean 60 GHz wireless spectrum. Connect up to eight of these CPE units to a 60 GHz access point, such as our wAP60G AP.

For links up to 200 meters, this is the best alternative for wireless connections where 2 and 5 GHz wireless space is crowded and unreliable, at a fraction of the cost. Also, it's possible to make point-to-point link with two SXTsq Lite60.

Specification

Specifications

Product code RBSXTsq-60ad
Suggested price $69.00
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 129 x 129 x 34 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 50°C

Powering

Number of DC inputs 1 (PoE-IN)
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 12-30 V

Ethernet

10/100 Ethernet ports 1

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS
IP IP54

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RBSXTsq-60ad		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
