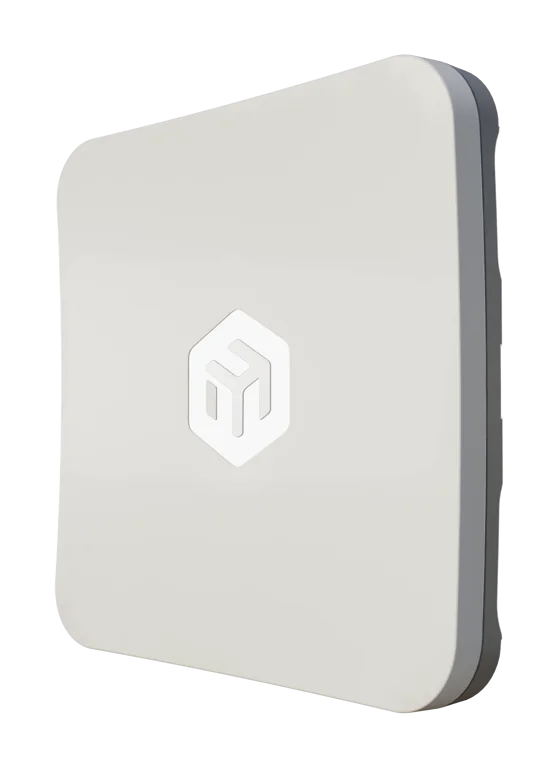

    SXTsq 5 ax A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options — perfect for masts, poles, or rooftop deployments.

    Meet the SXTsq 5 ax — our first Wi-Fi 6 outdoor CPE, combining the best wireless technology with our trusted, compact SXTsq form factor.

    Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual- core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.

    The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.

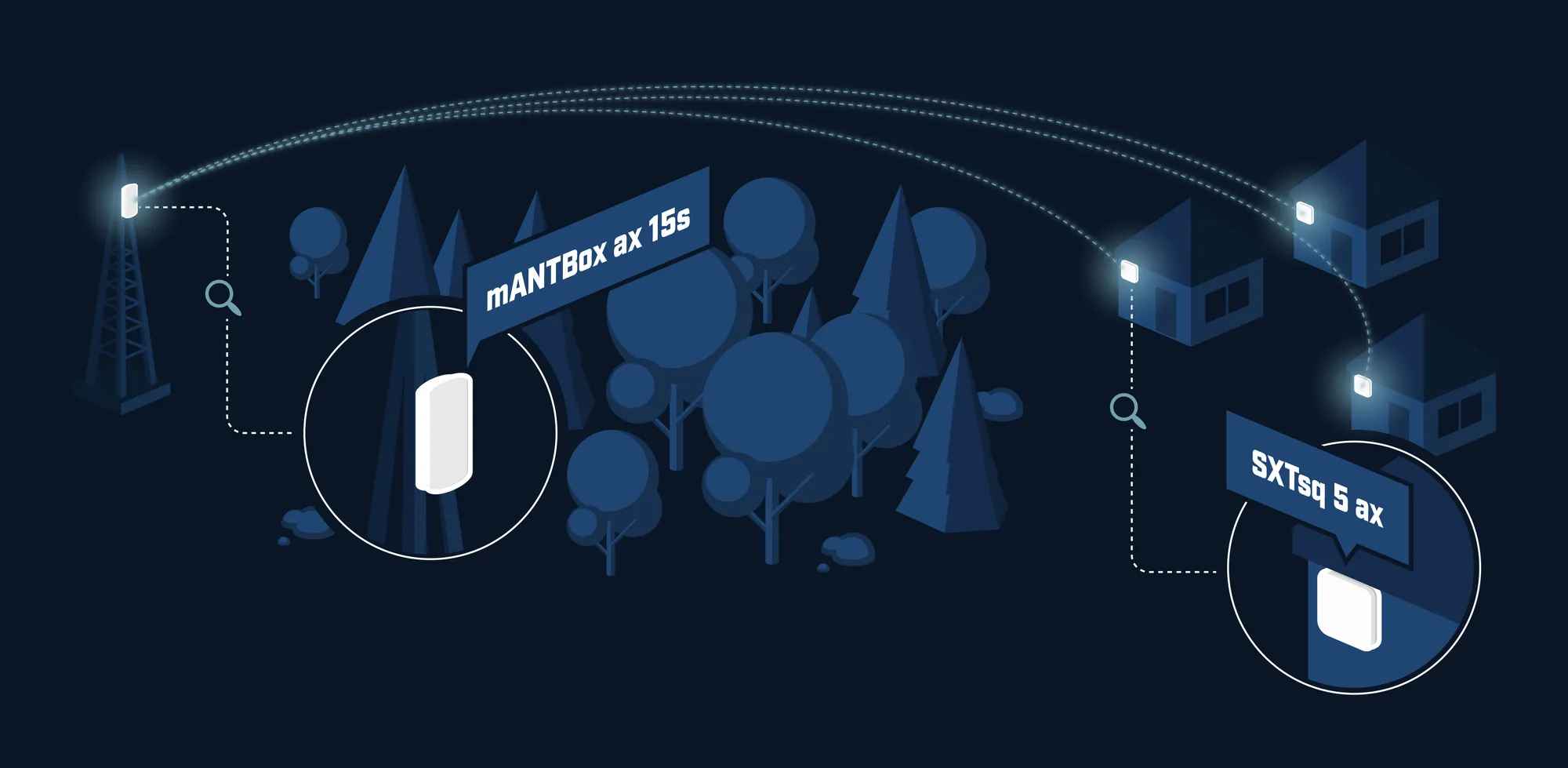

    Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.

    With RouterOS license level 4, the SXTsq 5 ax isn’t just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space- sensitive deployments.

    Download Brochure

     Send purchase questions

    Specifications

    Details
    Product code SXTsq-5axD
    Architecture ARM 64bit
    CPU IPQ-5010
    CPU core count 2
    CPU nominal frequency 800 MHz
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 256 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $65.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 6 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 12-28 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 1200 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz 16
    Wireless 5 GHz chip model QCN-6102
    Wireless 5 GHz generation Wi-Fi 6

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Other

    Details
    CPU temperature monitor Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP 55

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s24-96
    54MBit/s21-80
    MCS024-96
    MCS720-75
    MCS918-70
    MCS1116-67
    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s
    11MBit/s
    6MBit/s
    54MBit/s
    MCS0
    MCS7
    MCS9
    MCS11

    Included parts

    BrochureOpen
    RouterOS current release
    Safety and regulatory informationOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (5GHz)Open

    High resolution images

    #
    #
    #

    Ethernet test results

    SXTsq-5axDIPQ-5010 one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.1984.6233.3955.6689.2374.9
    Bridging25 bridge filter rules81.1984.6201.6825.6204.8111.4
    Routingnone (fast path)81.3987.4219.1897.3398216.5
    Routing25 simple queues81.3987.4178.6731.418198.5
    Routing25 ip filter rules81.3987.4123.4505.5122.666.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
