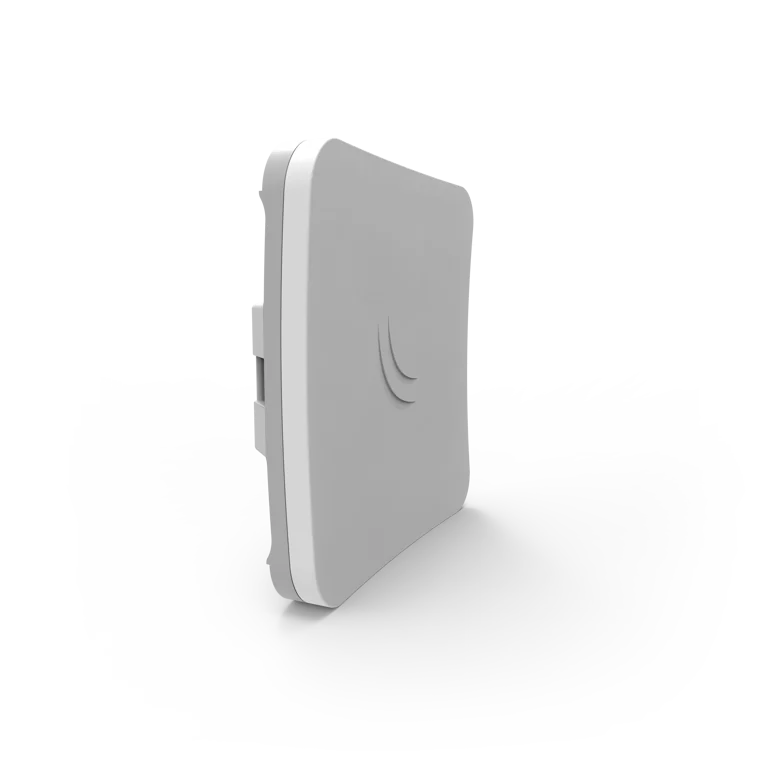

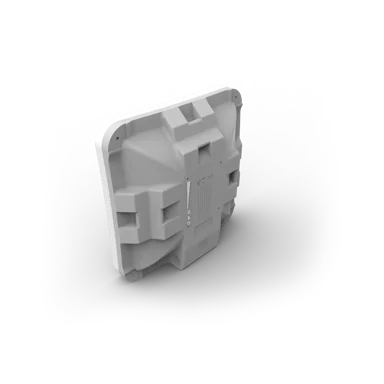

    SXTsq 5 ac Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone with AC support and Gigabit Ethernet

    The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

    The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

    - SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
     Send purchase questions

    Specifications

    Details
    Product code RBSXTsqG-5acD
    Architecture ARM 32bit
    CPU IPQ-4018
    CPU core count 4
    CPU nominal frequency 488-896 (auto) MHz
    Dimensions 129 x 129 x 34 mm
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $65.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 7 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-28 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 16
    Wireless 5 GHz chip model IPQ-4018
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s25-96
    54MBit/s21-80
    MCS025-96
    MCS720-75
    MCS918-70

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Block DiagramOpen
    Horizontal ElevationOpen
    Horizontal AzimuthOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #

    Ethernet test results

    RBSXTsqG-5acDIPQ-4018 1G one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)82,2998.2243,9999.01484,8760.2
    Bridging25 bridge filter rules82,2998.2243,9999.0359,2183.9
    Routingnone (fast path)82,2998.2243,9999.01488761.9
    Routing25 simple queues82,2998.2243,9999.0506,3259.2
    Routing25 ip filter rules82,2998.2240,8986.3242,9124.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RBSXTsqG-5acDIPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
