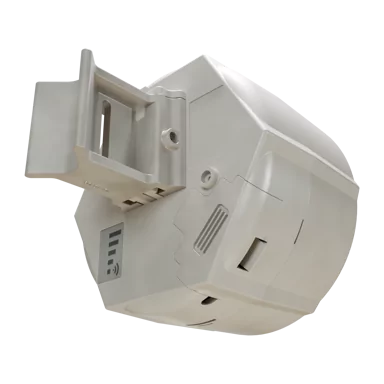

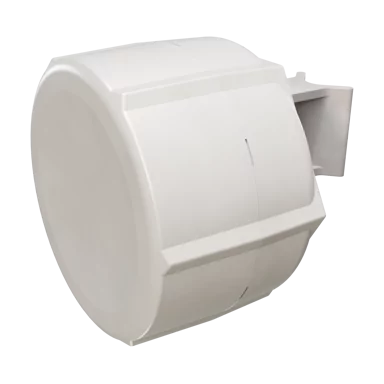

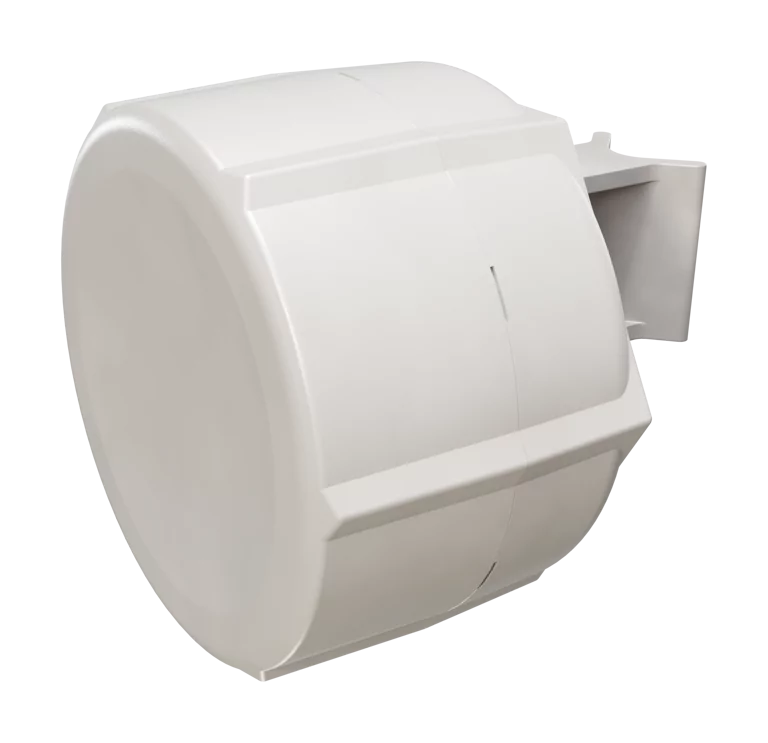

SXT LTE7 kit
A rugged outdoor LTE CPE with the new R11e-LTE7 modem inside. Delivers stable, fast Internet where phones fail – ideal for farms, off-grid connections, and countryside estates. Now with better uplink, PoE in/out, and a wide 12–57 V power range. Mount it, connect, and stay online.
The SXT LTE7 kit is a rugged, outdoor LTE access point designed for remote and hard-to-reach locations that are still within cellular network coverage. It keeps the same trusted SXT enclosure that has proven itself in thousands of deployments worldwide – but now features a faster LTE Category 7 modem, delivering higher speeds, better stability, and improved performance in crowded or rural LTE networks.
Mount it outside, point it at the nearest tower, and always stay connected!
SXT has always been about reliable connectivity with minimal visual impact:
• Weatherproof/Snow-resistant
• Unobtrusive, durable and discreet
• Designed to attract less unwanted attention
The SXT LTE7 kit keeps everything that made the platform popular – and upgrades what matters most: mobile performance. With LTE Category 7, you get faster uploads, better responsiveness, and stronger connections without changing your installation or setup.
We’ve included two Micro-SIM slots – for backup. It never hurts to have extra options when itcomes to mobile network coverage. Also, the Category 7 LTE modem enables carrier aggregation,allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there area lot of mobile users in the area. It offers better responsiveness in a crowded environment. Andhigher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internetspeed doubling in rural areas after switching to carrier aggregation, so there is no need to wait forcable network expansions.
The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!
Unit is shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.
Specification
- Product code SXTR&R11e-LTE7
- Suggested price $109.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Switch chip model QCA9531
- RouterOS license 3
- Operating System RouterOS v7
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 24 W
- Max power consumption without attachments 7 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- PoE-out ports Ether2
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 600 mA
- High voltage PoE-Out current limit 400 mA
- Max total out (A) 600 mA
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
-
3G bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
- LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL 2x2
- MIMO UL 1x1
-
LTE FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
-
LTE TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC 35312597
- 10/100 Ethernet ports 2
- Number of SIM slots 2 Modem (Micro SIM)
- MiniPCI-e slots 1
- Mode button Yes
- Certification CE, EAC, ROHS
- IP 54
| SXTR&R11e-LTE7r3 | QCA9531 100M two port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 297.6 | 152.4 |
| Bridging | 25 bridge filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 80.4 | 41.2 |
| Routing | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 233.1 | 119.3 |
| Routing | 25 simple queues | 16.3 | 197.9 | 47.0 | 192.5 | 131.4 | 67.3 |
| Routing | 25 ip filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 49.1 | 25.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
