RB450Gx4
Four core 716MHz CPU, 1GB RAM, 5xGigabit Ethernet, PoE out on port #5, RouterOS L5

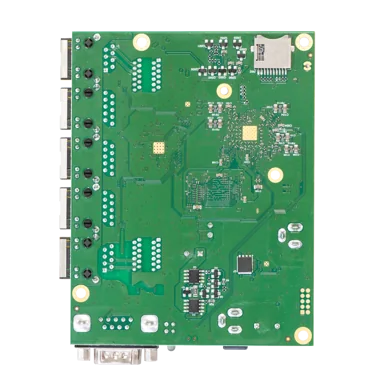

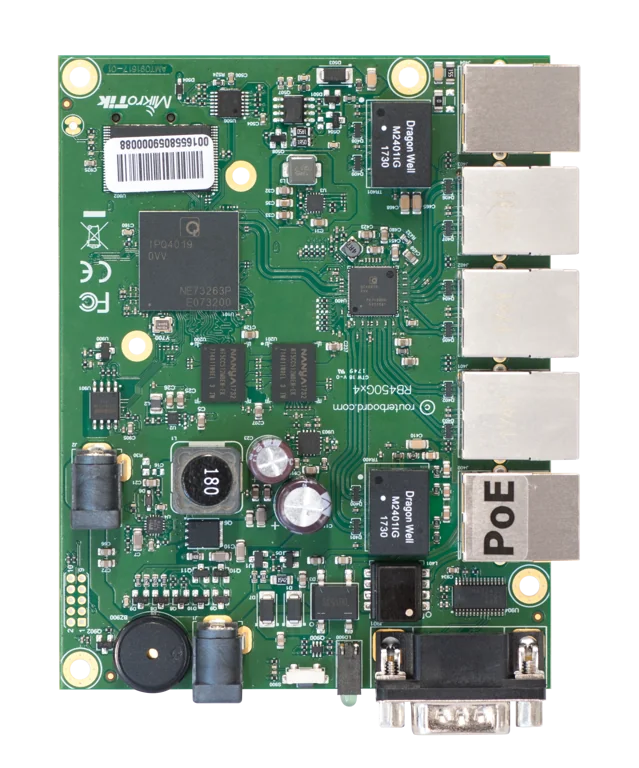

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.
It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.
The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
Specification
- Product code RB450Gx4
- Suggested price $99.00
- Architecture ARM 32bit
- CPU IPQ-4019
- CPU core count 4
- CPU nominal frequency 448-896 (auto) MHz
- CPU Threads count 4
- Switch chip model IPQ-4019
- Dimensions 90 x 116 mm
- RouterOS license 5
- Operating System RouterOS
- Size of RAM 1 GB
- Storage size 512 MB
- Storage type NAND
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 3 (DC jack, PoE-IN)
- DC jack input Voltage 10-57 V
- Max power consumption 16 W
- Max power consumption without attachments 4 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- PoE-out ports Ether5
- PoE out Passive PoE
- Low voltage PoE-Out current limit 500 mA
- High voltage PoE-Out current limit 500 mA
- Max total out (A) 500 mA
- 10/100/1000 Ethernet ports 5
- Memory card type microSD
- Serial console port RS232
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
- Certification CE, EAC, ROHS
- IP IP00
| RB450Gx4 | IPQ-4019 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Bridging | 25 bridge filter rules | 162,5 | 1973.4 | 351,2 | 1438.5 | 352,1 | 180.3 |
| Routing | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Routing | 25 simple queues | 162,5 | 1973.4 | 468,6 | 1919.4 | 493,4 | 252.6 |
| Routing | 25 ip filter rules | 162,5 | 1973.4 | 222,8 | 912.6 | 227,4 | 116.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RB450Gx4 | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
