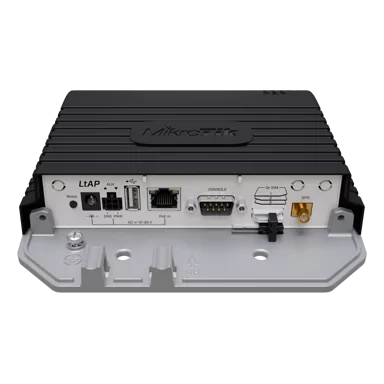

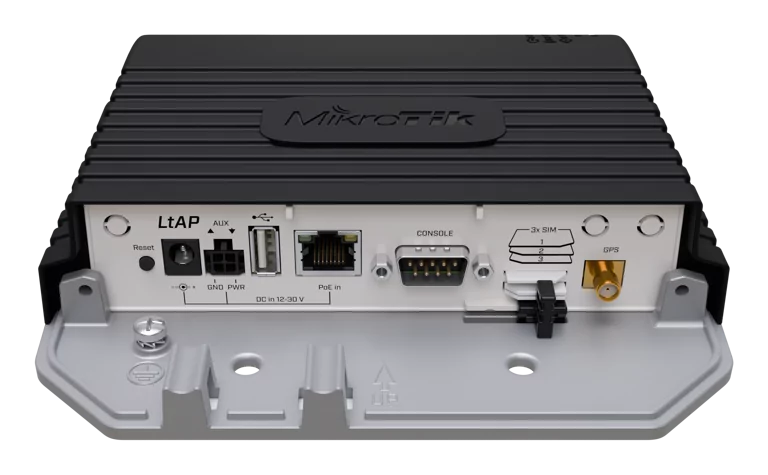

LtAP LTE7 kit
A compact, heavy-duty LTE access point with built-in GPS – now upgraded with a faster, smarter, more affordable LTE Category 7 modem. Add extensive networking and tracking options to your vehicle without breaking the bank!
The new LtAP LTE7 kit takes everything people loveabout LtAP – the rugged weatherproof case, built-in GPS, extreme power flexibility, and miniPCI-e expansion options… and adds our latest LTE Category 7 modem for ahuge real-world improvement! Higher speed, stability and throughput is not the onlybenefit of the new modem. It comes with expandedfrequency support including Band 32 for betterperformance in congested areas and during roaming.Same trusted LtAP form factor – no changes to installationor configuration. Just faster uploads, stronger ruralperformance, and a noticeably better price.
Perfect for logistics, transport & tracking
Just like in the previous model, you get 3 MiniSIM slots for automatic roaming as your vehicle crosses borders. Two internal LTE antennas keep things compact, while U.FL connectors allow external antennas for even better long-distance work. Built-in GPS (via SMA connector) makes LtAP ideal for fleet tracking, mobile video systems, asset security, and location-aware monitoring.
Whether it’s delivery trucks, buses, forklifts, agricultural machines, or utility fleets – LtAP keeps everything online and traceable in real time. The LtAP enclosure has also proven itself in public transport and other busy areas: extremely durable, discreet, and far less attention- grabbing than traditional routers.
The virtue of versatility
LtAP is designed to run in nearly any environment. It supports: DC jack, Passive PoE-in, and Automotive power connector!
Users have even run the device from power banks in the field. And because LtAP includes two miniPCIe slots, you can expand it with a second LTE modem, a 5 GHz interface, or other add-ons – building exactly the setup you need.
Powered by RouterOS v7 – automate, adapt, and configure anything to your liking!
Firewalling, VPNs, VLANs, DHCP, routing policies, advanced notifications, GPS data processing, custom scripts – RouterOS v7 gives you full control. No paywalls, no subscriptions, only pure functionality… forever! We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job.
Specification
- Product code LtAP-2HnD&R11e-LTE7
- Suggested price $169.00
- Architecture MMIPS
- CPU MT7621AT
- CPU core count 2
- CPU nominal frequency 880 MHz
- CPU Threads count 4
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage 12-30 V
- Automotive input Voltage 12-27 V
- Max power consumption 24 W
- Max power consumption without attachments 12 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 12-30 V
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
-
3G bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
- LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL 2x2
- MIMO UL 1x1
-
LTE FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
-
LTE TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC 35312597
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model AR9382
- Wireless 2.4 GHz generation Wi-Fi 4
- 10/100/1000 Ethernet ports 1
- Number of SIM slots 3 Modem (Mini SIM)
- MiniPCI-e slots 2
- Serial console port RS232
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- GNSS standards GPS
- Certification CE, EAC, ROHS
- IP 54
| LtAP-2HnD&R11e-LTE7r2 | MT7621A (880Mhz) 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 717.9 | 367.6 |
| Bridging | 25 bridge filter rules | 81.1 | 984.9 | 133.1 | 545.2 | 133.1 | 68.1 |
| Routing | none (fast path) | 81.1 | 984.9 | 233.3 | 955.6 | 859.5 | 440.1 |
| Routing | 25 simple queues | 81.1 | 984.9 | 116.9 | 478.8 | 119 | 60.9 |
| Routing | 25 ip filter rules | 70.8 | 859.8 | 74.6 | 305.6 | 73.5 | 37.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| LtAP-2HnD&R11e-LTE7r2 | MT7621A IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 20.7 | 231.8 | 21.5 | 88.1 | 21.3 | 11.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.7 | 6.9 |
| 256 tunnels | AES-128-CBC + SHA256 | 12.2 | 136.6 | 12.4 | 50.8 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 10.5 | 117.6 | 12.6 | 51.6 | 12.4 | 6.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
