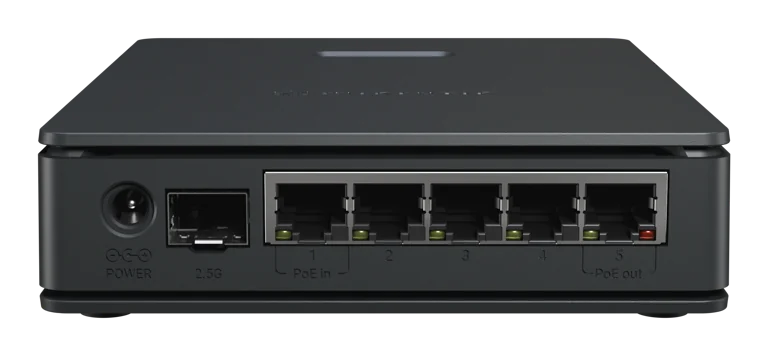

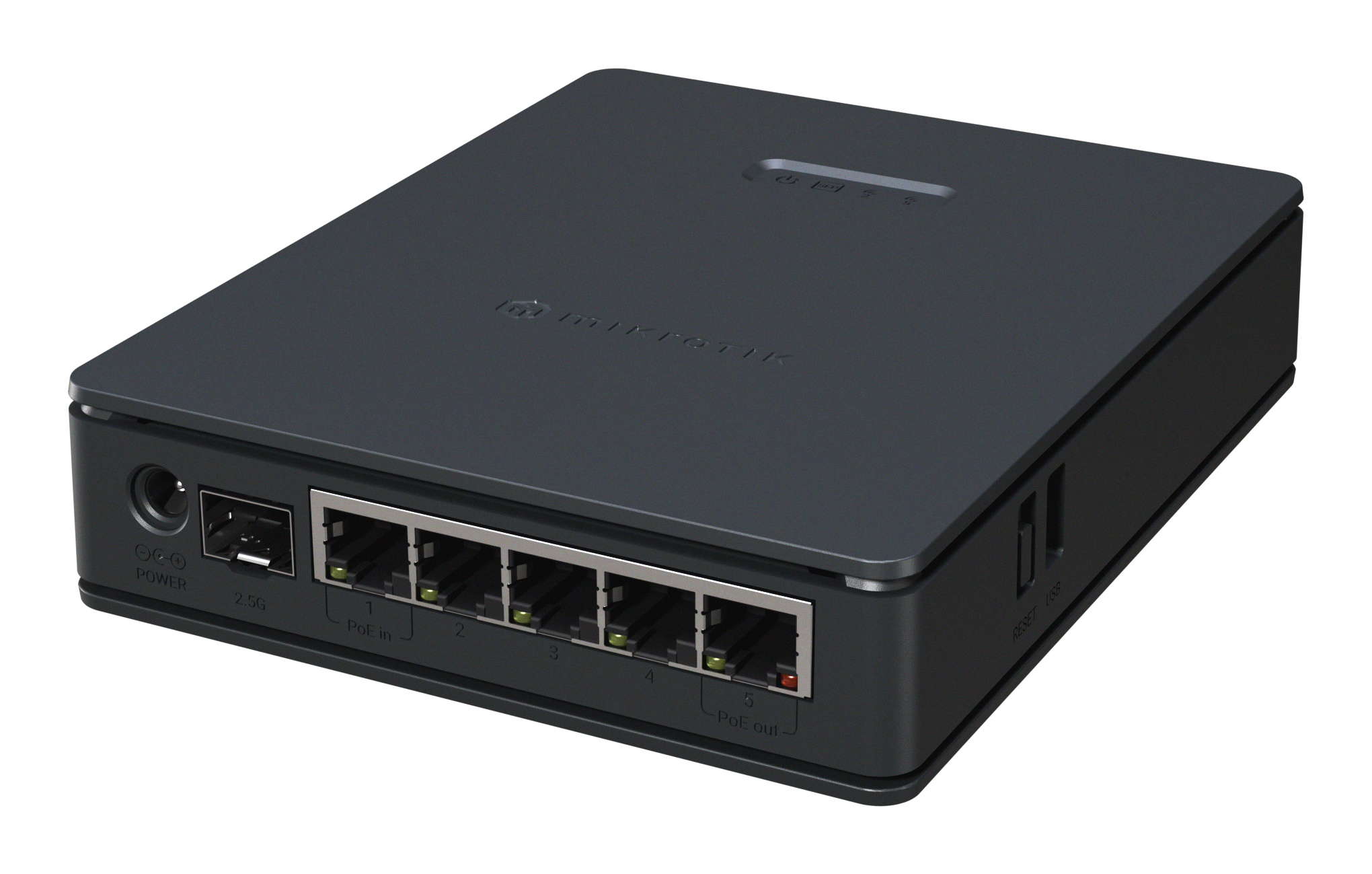

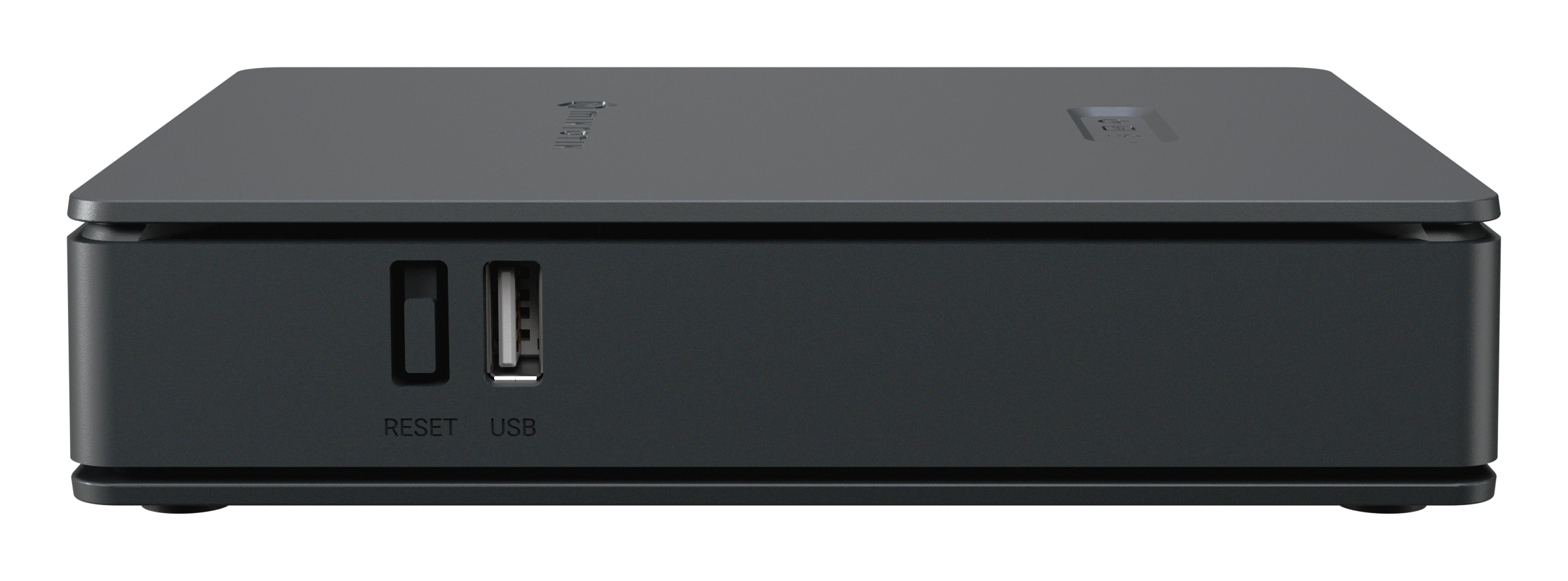

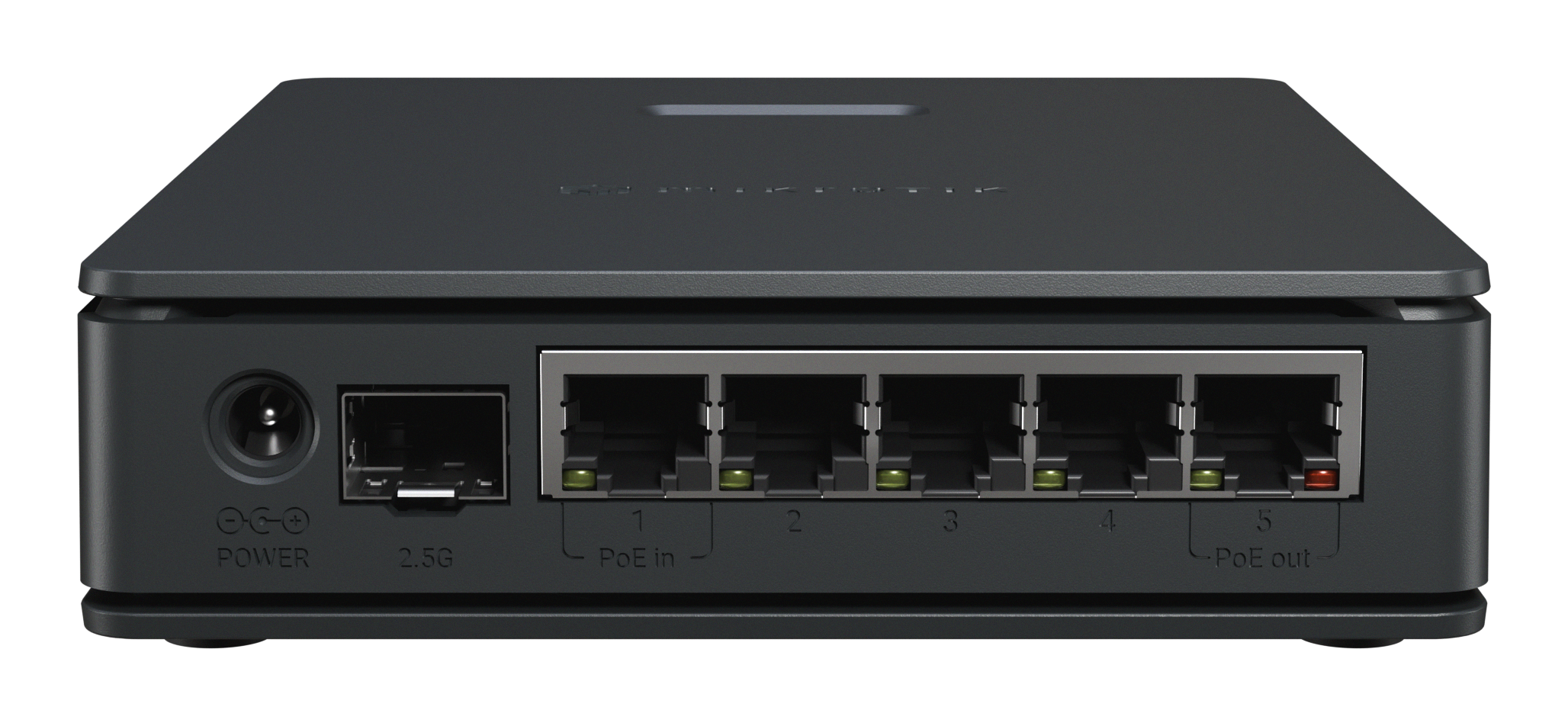

hAP ax S
Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.
Meet the new hAP ax S
Our most cost-effective Wi-Fi 6 access point yet
It costs far less than most mid-range, mass-produced routers… while delivering far more flexibility and longevity right out of the box!
Wi-Fi 6
Dual-band Wi-Fi 6 access point with triple-chain 5 GHz radio (up to 900 Mbit/s throughput).
2.5 Gbit + 5 x 1 Gbit
Five Gigabit Ethernet ports, and a 2.5 Gigabit SFP cage. You can connect direct fiber-to-home or link up a high-speed NAS for lightning-fast local access.
Dual-Core ARM CPU
Under the sleek exterior lies a dual-core ARM CPU.
DC jack or PoE
Dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device.
Triple-chain 5 GHz:
the key to stable, gigabit-class Wi-Fi
The new hAP ax S features a triple-chain 5 GHz radio that achieves real-world throughput of around 800–900 Mbit/s. That means smooth streaming, faster downloads, and stable performance across multiple devices – even in crowded environments.
It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VR headsets, offering higher resolution and lower latency without the cables. Unlike single-purpose “gaming” access points, the hAP ax S gives you the full performance, flexibility, and future-proofing of RouterOS v7!
Enjoy dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device, such as an additional AP or a compact desktop switch. This makes it ideal for both home setups and small offices where clean cable management matters.
Your network, your rules
RouterOS v7
Despite the low price, the hAP ax S runs a full version of RouterOS v7, the most flexible networking software on the market.
Free with all the features
In the age of growing data security and privacy challenges, RouterOS gives you complete control – with no subscriptions, no upsells, no locked features. Whether you’re configuring your first Wi-Fi network through the MikroTik app or building complex topologies, RouterOS v7 grows with you.
Limitless possibilities
VLANs, firewalls, VPN tunnels, traffic shaping, scripting, SMS automation – the possibilities are endless. For example: you can easily isolate IoT devices into separate subnets to protect your home network from unwanted access via the smart fridge or those flashy LED light hubs.
Specification
- Product code E62iUGS-2axD5axT
- Suggested price $79.00
- Architecture ARM 32bit
- CPU EN7562CT
- CPU core count 2
- CPU nominal frequency 950 MHz
- CPU Threads count 2
- Switch chip model EN7523
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 512 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Wireless 2.4 GHz Max data rate 574 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz 5.5
- Wireless 2.4 GHz chip model MT7916
- Wireless 2.4 GHz generation Wi-Fi 6
- Wireless 5 GHz Max data rate 1800 Mbit/s
- Wireless 5 GHz Number of chains 3
- Wireless 5 GHz standards 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz 8.07
- Wireless 5 GHz chip model MT7976
- Wireless 5 GHz generation Wi-Fi 6
- WiFi speed AX2400
- 10/100/1000 Ethernet ports 5
- Number of 1G Ethernet ports with PoE-out 1
- SFP ports 1 (2.5G supported)
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-28 V
- Max power consumption 34 W
- Max power consumption without attachments 11 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 18-28 V
- PoE-out ports Ether5
- PoE out Passive PoE
- Low voltage PoE-Out current limit 0.6 A
- Max total out (A) 0.6 A
- Total output current 0.6
- Total output power 16.8
- Certification CE, FCC, IC, EAC, ROHS
- IP 20
- CPU temperature monitor Yes
| E62iUGS-2axD5axT | EN7562CT 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 340.3 | 4132.4 | 389 | 1593.5 | 402.6 | 219 |
| Bridging | 25 bridge filter rules | 190.6 | 2315.1 | 197 | 806.8 | 193.9 | 105.5 |
| Routing | none (fast path) | 300.3 | 3646.6 | 340.5 | 1394.7 | 342.2 | 186.1 |
| Routing | 25 simple queues | 173.1 | 2102.6 | 174.3 | 713.8 | 171.9 | 93.5 |
| Routing | 25 ip filter rules | 117.8 | 1430.3 | 121.6 | 498.1 | 117 | 63.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| E62iUGS-2axD5axT | EN7562CT IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 31.4 | 351.7 | 34.8 | 142.5 | 37.2 | 20.2 |
| 256 tunnels | AES-128-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.5 | 10.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.9 | 10.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

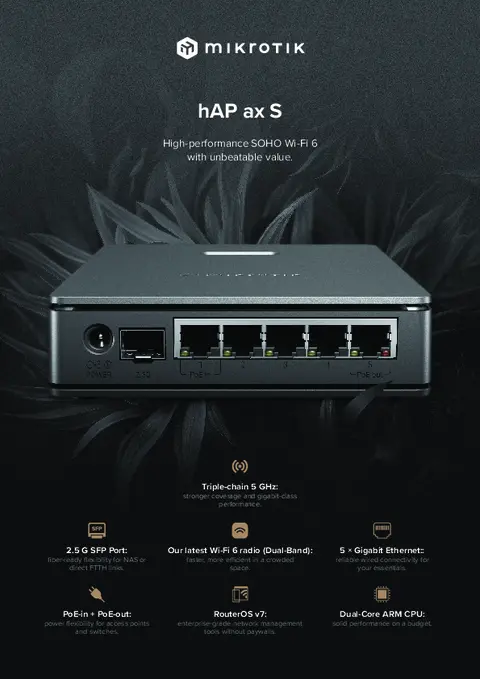

Documents
