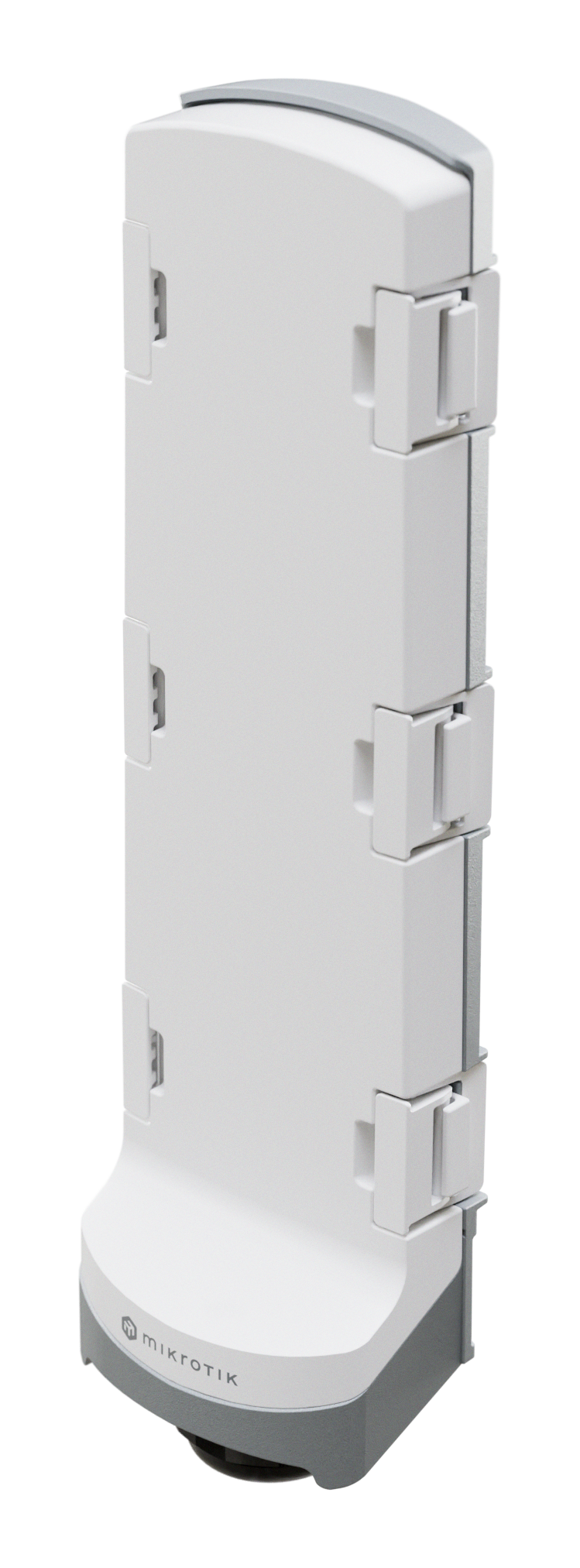

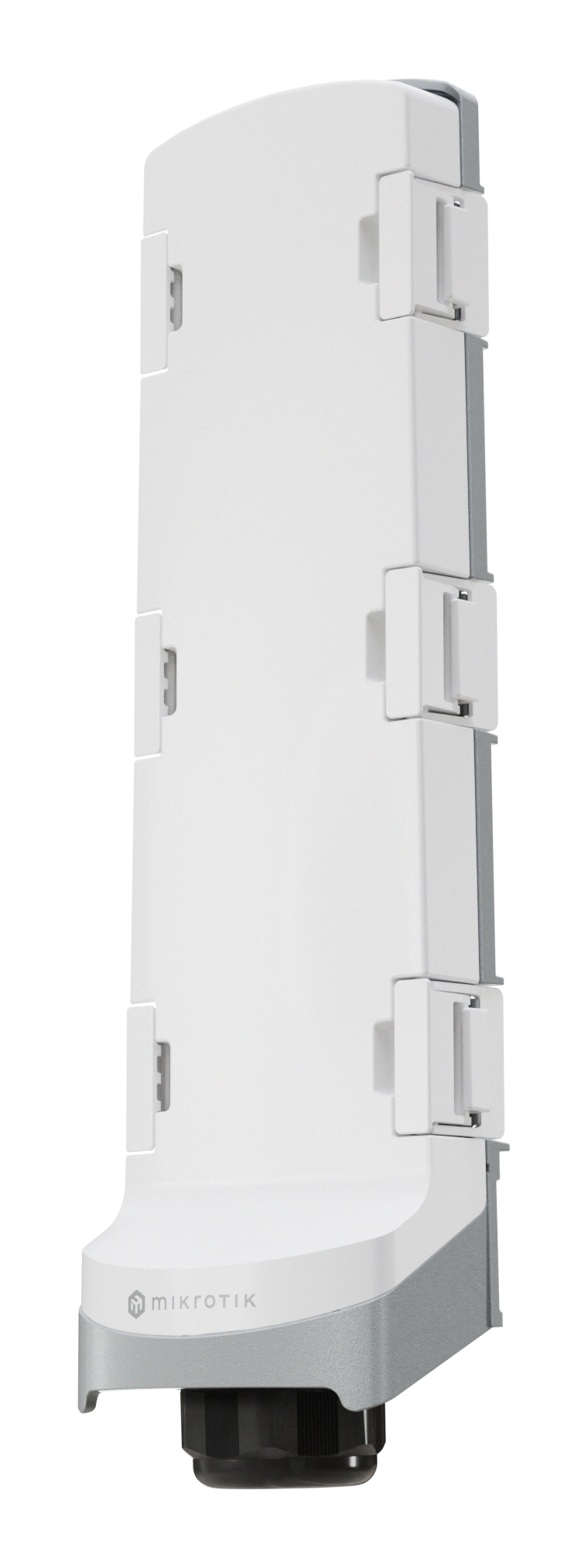

GPERx6
Cut the cable clutter – extend power and fiber together, anywhere – with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.

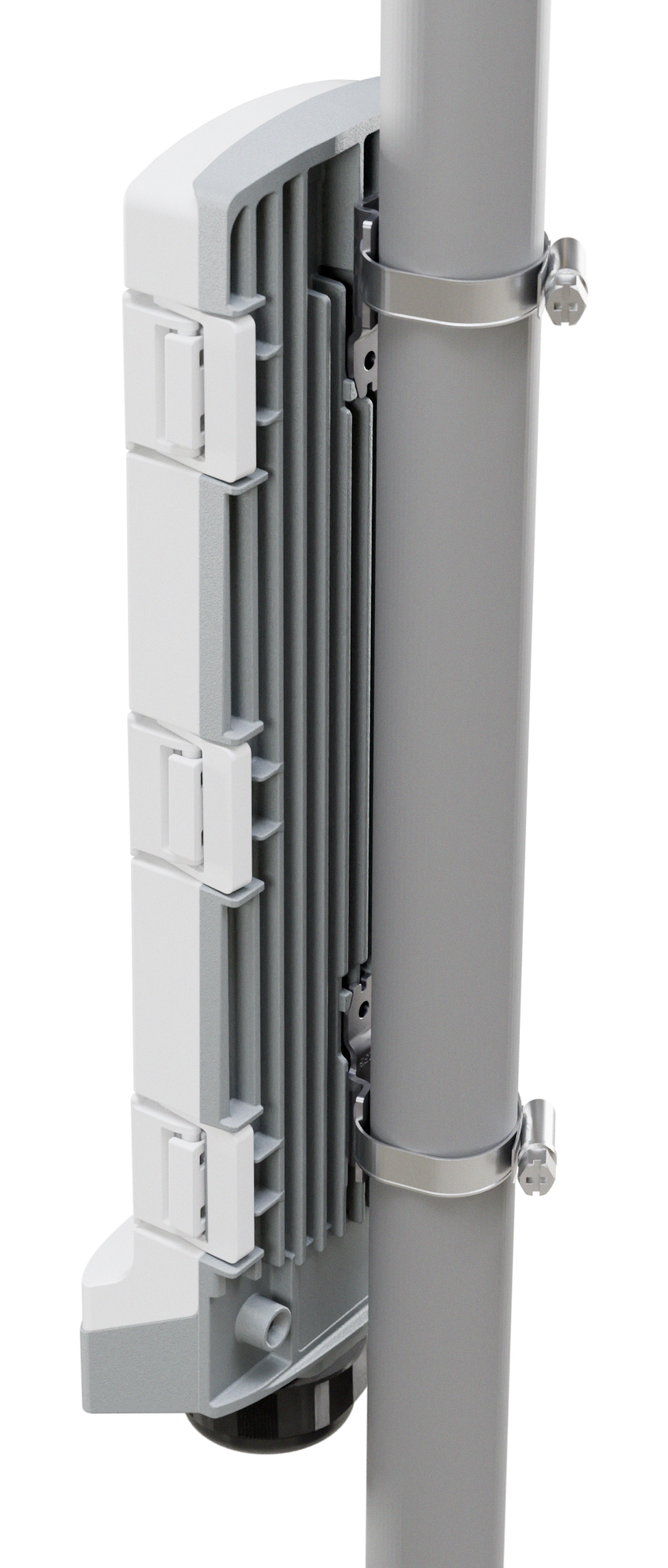

Built for the toughest deployments
The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple
On the surface,
it’s straightforward
But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!
Hybrid cable advantage
With hybrid fiber + copper cables, the GPERx6 becomes a power-and-data lifeline:
Fiber strands carry your high-speed uplink;
Copper conductors deliver DC power;

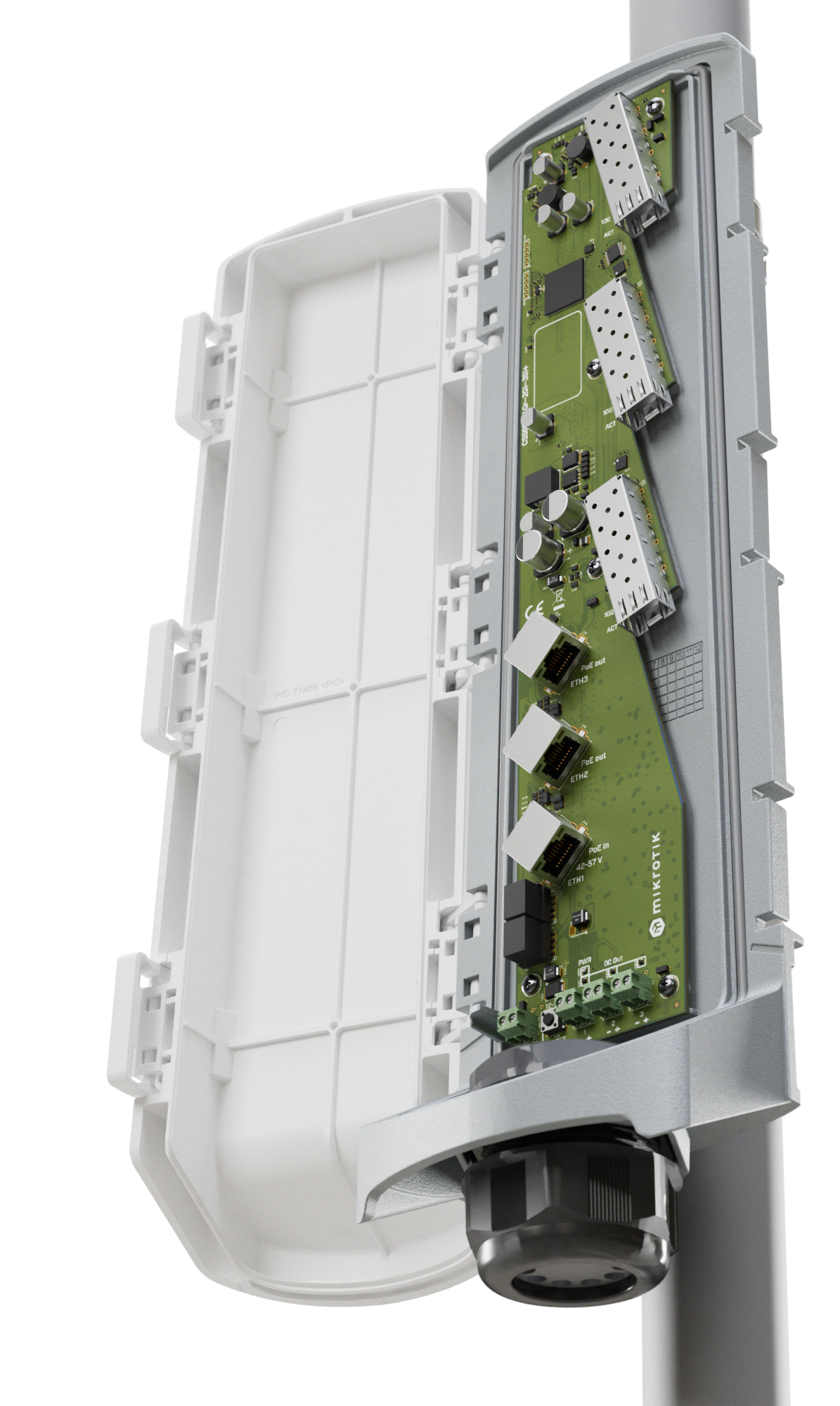

At the far end, the GPERx6 splits it all:
SFP+ uplinks for data;
PoE-out for cameras or access points;
DC-out for IoT devices or special hardware.
Specification
- Product code CSS606-1G-2Gi-3S+OUT
- Suggested price $139.00
- Switch chip model 88E6193X
- Operating System SwOS
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-57 V
- Max power consumption 160 W
- Max power consumption without attachments 6 W
- PoE in 802.3 bt
- Cooling type Passive
- PoE in input Voltage 42-57 V
- PoE-out ports Ether2-Ether3
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 1.2 A
- High voltage PoE-Out current limit 0.625 A
- Max total out (A) 2.4 A
- Total output power 150
- 10/100/1000 Ethernet ports 3
- Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1
- Number of 1G Ethernet ports with PoE-out 2
- SFP+ ports 3
- CPU temperature monitor Yes
- Certification CE, EAC, ROHS
- IP 66
| CSS606-1G-2Gi-3S+OUT | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,682.1 | 32,570.9 | 7,753.8 | 31,759.4 | 49,107.1 | 25,142.9 |
| Switching | Non blocking Layer 2 capacity | 2,682.1 | 65,141.7 | 7,753.8 | 63,518.8 | 49,107.1 | 50,285.7 |
| Switching | Non blocking Layer 1 throughput | 2,682.1 | 33,000.0 | 7,753.8 | 33,000.0 | 49,107.1 | 33,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,682.1 | 66,000.0 | 7,753.8 | 66,000.0 | 49,107.1 | 66,000.0 |
