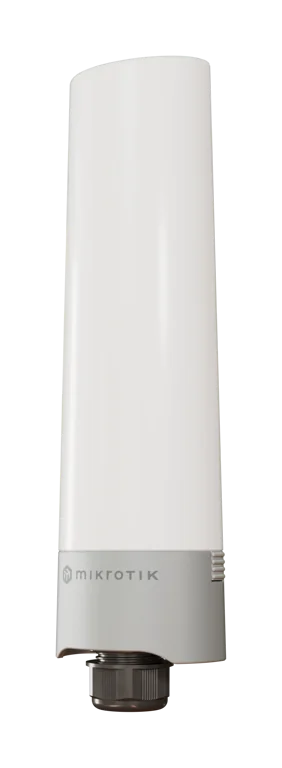

GPeRx4
Effortlessly split a single high-power PoE port into multiple standard PoE connections with the compact and durable GPeRx4. Expand, extend, and power your network with ease!
The GPeRx4 is not your average Ethernet extender. This compact, outdoor-ready device is designed to split* a single 90W PoE-out port into multiple 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices.
Power and Expand with Ease
Take advantage of your high-power PoE-out port by splitting it into three standard PoE-out connections, ideal for adding more devices without upgrading your switch.
Built for Rough Conditions

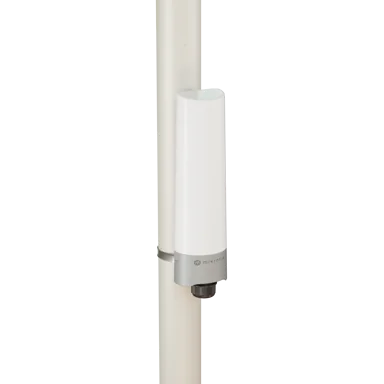

Housed in a robust enclosure, the GPeRx4 can handle tough environments, making it the perfect choice for outdoor setups.
Flexible Power Options
Supports PoE-in and a 2-pin terminal, ensuring versatility for different power sources.
Advanced SwOS Lite Management
Manage your network effortlessly via Web with SwOS Lite, providing:
- Interface monitoring
- VLAN support
- Traffic shaping
- SNMP reporting
- Fault detection for GPEN links
Specification
- Product code GPER14i
- Suggested price $59.00
- CPU nominal frequency 200 MHz
- Switch chip model 88E6341
- Storage size 64 KB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 2 (PoE-IN, 2-pin terminal)
- 2-pin terminal input Voltage 24-57 V
- Max power consumption 115 W
- Max power consumption without attachments 4 W
- PoE in 802.3 bt
- PoE in input Voltage 48-57 V
- PoE-out ports Ether2-Ether4
- PoE out 802.3af/at
- Low voltage PoE-Out current limit 0.7 A
- High voltage PoE-Out current limit 0.6 A
- Max total out (A) 2.0 A
- 10/100/1000 Ethernet ports 4
- Number of 1G Ethernet ports with PoE-out 3
- Certification CE, EAC, ROHS
- IP 68
| GPER14i | |||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 325.1 | 3948.0 | 939.8 | 3849.4 | 5952.4 | 3047.6 |
| Switching | Non blocking Layer 2 capacity | 325.1 | 7896.0 | 939.8 | 7698.8 | 5952.4 | 6095.2 |
| Switching | Non blocking Layer 1 throughput | 325.1 | 4000.0 | 939.8 | 4000.0 | 5952.4 | 4000.0 |
| Switching | Non blocking Layer 1 capacity | 325.1 | 8000.0 | 939.8 | 8000.0 | 5952.4 | 8000.0 |
