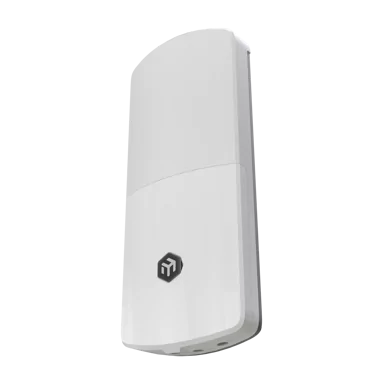

FTC21-ups

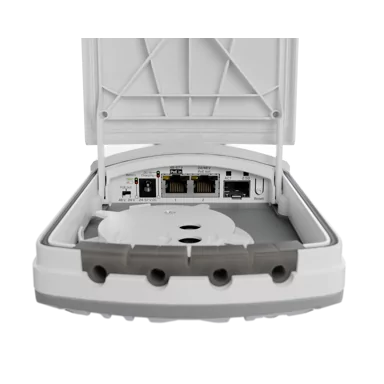

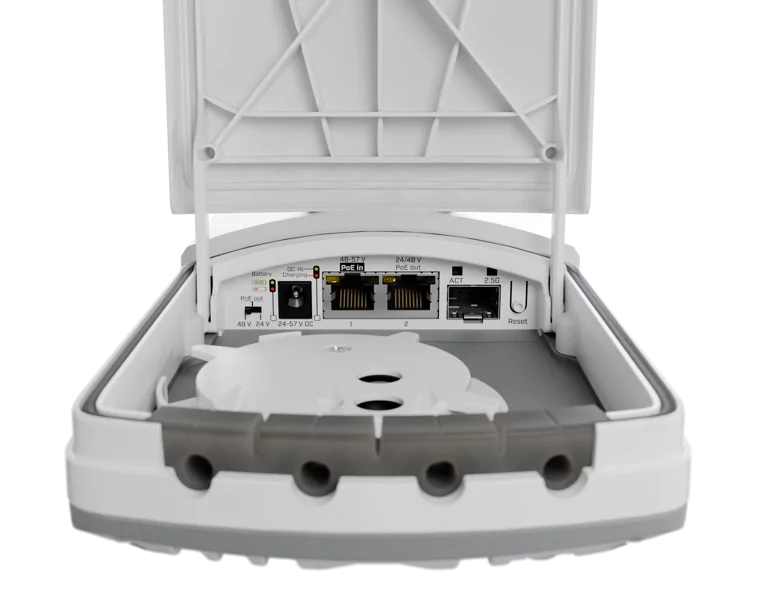

A weatherproof Fiber-to-Copper converter with 2.5G SFP and 2x Gigabit Ethernet ports, including PoE-out on Ether2. Its integrated battery keeps links stable during short power interruptions, preventing unnecessary renegotiations and device reboots.
Fiber is fast. Fiber is reliable.
Until the power starts misbehaving.
At the network edge, it is rarely the fiber that fails. It is unstable power, brownouts, short outages, and voltage drops that trigger renegotiations, device reboots, and unnecessary support tickets. The FTC21-ups is built to save you some major headaches when dealing with unreliable power sources
Not just a converter
The FTC21 is not just a simple media converter. It runs a full version of SwOS Lite, offering advanced management features:
Interface monitoring and management
VLAN support
SNMP reporting
Basic traffic shaping
Advanced packet filtering with Access Control Lists - allowing for packet filtering, accounting, and VLAN tagging based on Layer 2, 3, and 4 protocol header conditions.
Built-in batteries
What makes the FTC21-ups different is what happens when power becomes unstable. Inside, there is a pair of Li-Ion NCA 18650 batteries. Not for running your network all night, but for surviving short outages, brownouts, and those moments when everything almost crashes.
It keeps the link up when the power is flickering, preventing unnecessary device renegotiation.
The battery is intelligently managed:
Inactive during shipping;
Activated on first power-up;
Can be put into ship mode remotely via SwOS when necessary.
Real-world battery runtime examples (20 °C)
Estimated from measured battery behavior. Actual runtime depends on load and temperature.
Specification
- Product code FTC21-ups
- Suggested price $99.00
- Switch chip model 88E6341
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 24-57 V
- Max power consumption 28 W
- Max power consumption without attachments 3 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 48-57 V
- PoE-out ports Ether2
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 0.625 A
- High voltage PoE-Out current limit 0.315 A
- Max total out (A) 0.625 A
- Total output current 0.625
- Total output power 15
- 10/100/1000 Ethernet ports 2
- Number of 1G Ethernet ports with PoE-out 1
- SFP ports 1 (2.5G supported)
- PCB temperature monitor Yes
- Certification CE, EAC, ROHS
- IP 67
| FTC21-ups | |||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 325.1 | 3948.0 | 939.8 | 3849.4 | 5952.4 | 3047.6 |
| Switching | Non blocking Layer 2 capacity | 325.1 | 7896.0 | 939.8 | 7698.8 | 5952.4 | 6095.2 |
| Switching | Non blocking Layer 1 throughput | 325.1 | 4000.0 | 939.8 | 4000.0 | 5952.4 | 4000.0 |
| Switching | Non blocking Layer 1 capacity | 325.1 | 8000.0 | 939.8 | 8000.0 | 5952.4 | 8000.0 |
